• Model NO.：DW159NC
• Type：Hydraulic Bending Machine
• Control：Nc System
• Transport Package：Iron Case
• Specification：DW159NC
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200units,Month

1. The Minimum bending diameter based on the pipe diameter
2.The Max bending diameter can according to the customer's requirement
3.The Max length of mandrel can according to customer's requirement
 Max bending radius
 mm
 R750
 Min bending radius
 mm
 According to the pipe OD
 Max bending angle
 Degree
 190
 Max effective distance of mandrel
 mm
 5000
 Control System
 NC Control
 Max elbow bend pipe
 Unit
 16
 Max storable sections
 Unit
 16×16
 Motor power
 KW
 22
 Max. Hydraulic Pressure
 Mpa
 16
 Hydraulic System Control
 Electromagnetic Valve
 Oil Tank Capacity
 L
 650
 Measurement
 mm
 7100×2000×1800
 Weight of Machine
 Kg
 15000

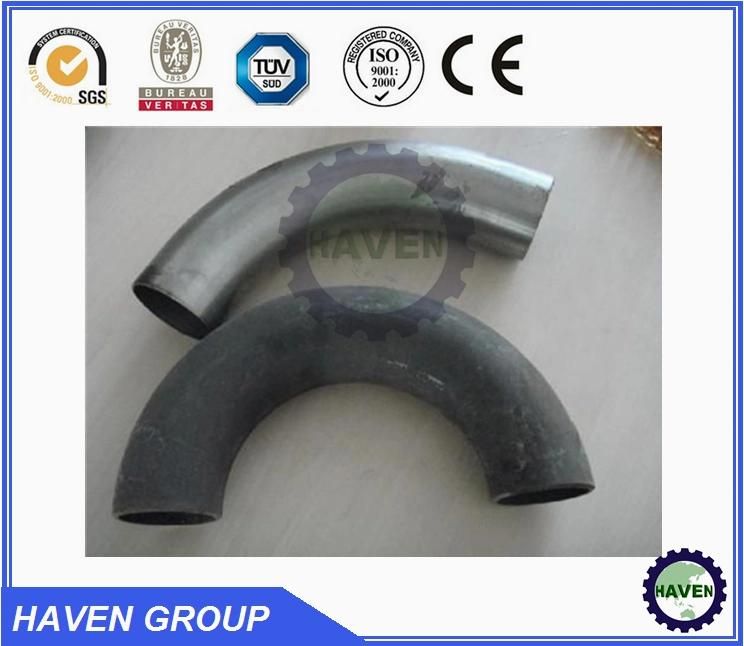

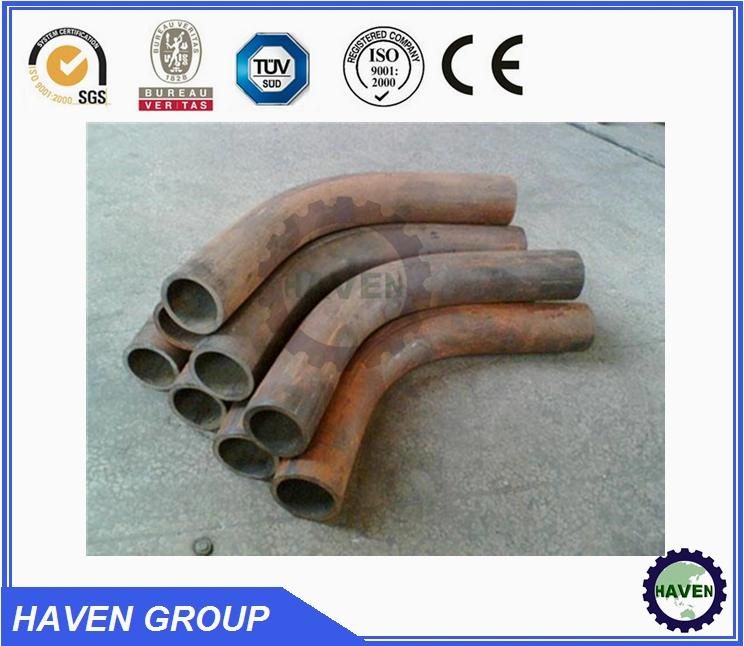

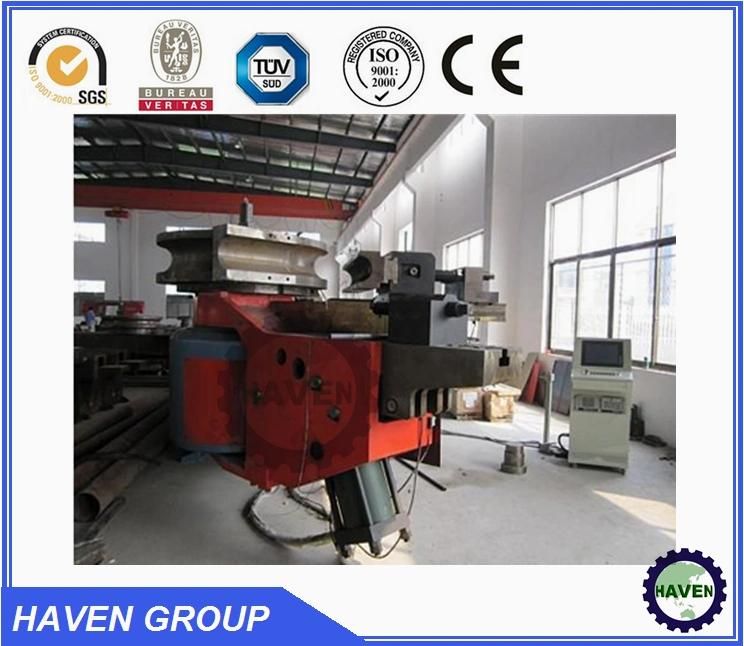

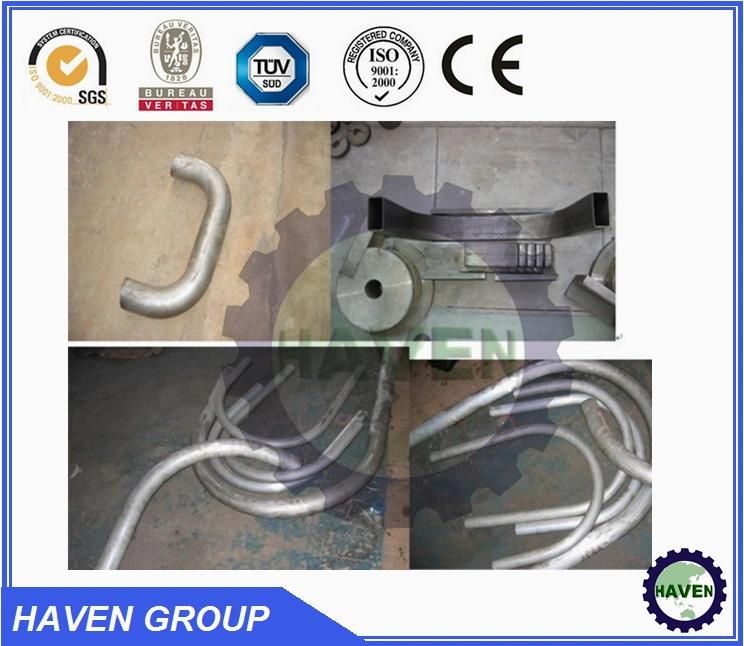

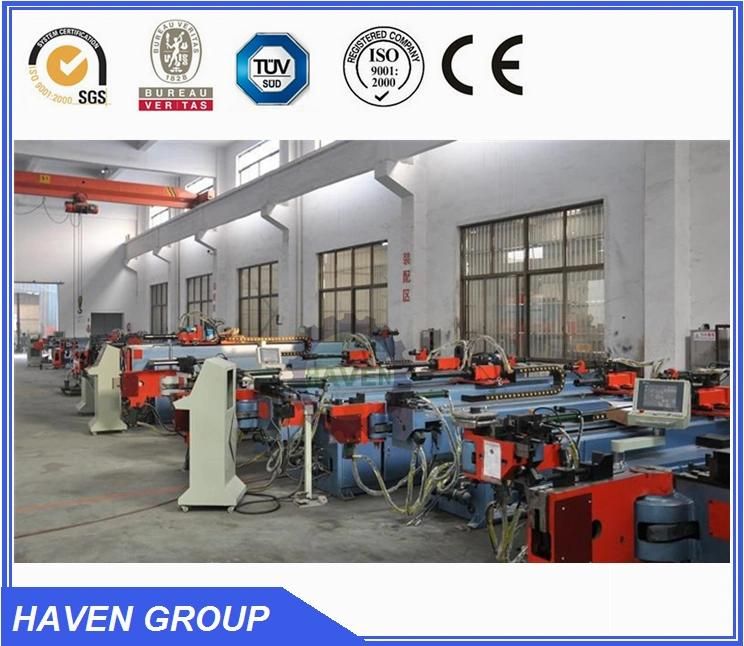

Detailed photos:
