Cutting & Fold-bend Machine

Home > Product > Flame Cutting Machine

2021gantry Plasma Cutter CNC with 2 Sets Cutting Torch, Plasma Cutting Machine with Lgk120A Power Source

Jinan Huaxia Machinery Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：2 Years
  • Certification：CE, ISO 9001:2000, ISO 9001:2008, TUV
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Model NO.：HXP-1325
  • Connected Shaft Number：3-Shaft
  • Style：Gantry
  • Type：CNC
  • Power Supply：USA Hyperrtherrm ,China Huayuan
  • Cutting Method：Air Cutting
  • Machine Work Together：Air Compressor(Min 0.8 MPa Power)
  • Control System：Starfire,Flmc-F2300,Start,Nc-Studio
  • Nesting Software：Fastcam Australia
  • Input Voltage：3 Phase 380V for Power Source
  • File Transfer Mode：USB Interface
  • Design Software：Auto CAD, Caxa
  • Arc：Non-Contact
  • Cooling：Water Cooling
  • Language：8 Different Language(See Details)
  • Flame Cutting：Oxygen,Acetylene,Propane,Coal Gas
  • Transport Package：Plywood Case After Packed by Wrapping Film
  • Specification：4000X8000MM
  • Trademark：HUAXIA
  • Origin：China Minland
  • HS Code：8456401000
  • Production Capacity：50,Month

Description

************* Gantry plasma/flame cutting machine Cross Beam Length(X axis)

4500mm (can be customed as user's demand)

Longitudinal Rail Length(Y axis)

8500mm (Rail can be customed as user's demand)

Effective Cutting Width (X axis)

4000mm(can be customed as user's demand)

Cutting Mode Flame only; Plasma only; Flame and Plasma Drive Mode Bilateral-side Drive Method Rack and pinion drive for X and Y axes Flame Cutting Thickness 5-200mm Cutting Speed 0-12000mm per minute Moving Precision 0.01mm per step Nesting Software (option) FASTCAM    30


 Control systerm

2021gantry Plasma Cutter CNC with 2 Sets Cutting Torch, Plasma Cutting Machine with Lgk120A Power Source

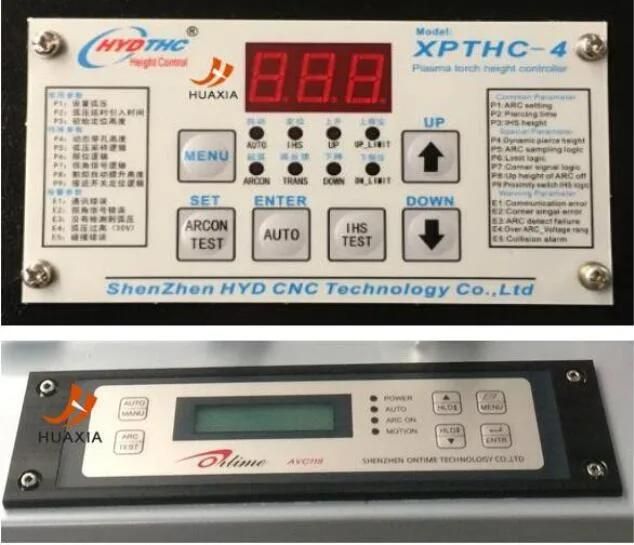

                          STARFIRE Control systerm                        FLMC-F2300A Control systerm


Auto control height system
2021gantry Plasma Cutter CNC with 2 Sets Cutting Torch, Plasma Cutting Machine with Lgk120A Power Source

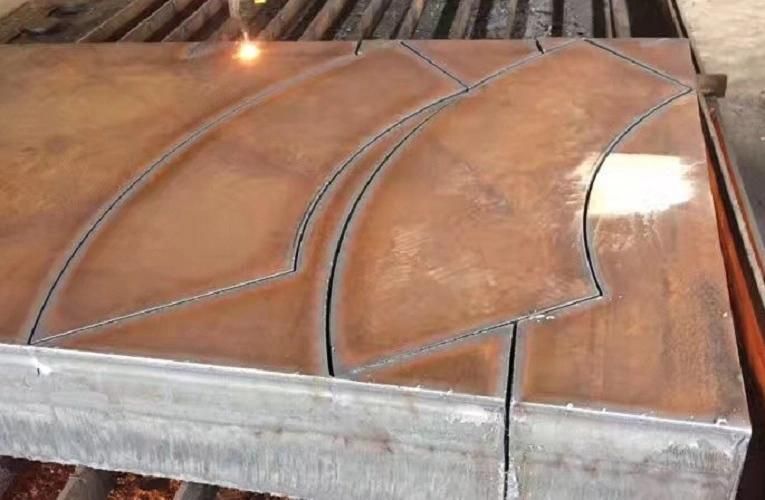

Samples
2021gantry Plasma Cutter CNC with 2 Sets Cutting Torch, Plasma Cutting Machine with Lgk120A Power Source

Packing
2021gantry Plasma Cutter CNC with 2 Sets Cutting Torch, Plasma Cutting Machine with Lgk120A Power Source
Our Services

Warranty and Service ****

1) Warranty

  • All life-time technical support;
  • 18 months for whole machine,
  • 3 months for the consume parts from the date of arrival.

2) Service details

  • Welcome to come to our factory for inspection at any time.
  • Whole visual machine production process
  • Professional multilingual sales team
  • Free Training Team at factory,to ensure that every customer operates the machine skillfully
  • Professional engineer after-sales team
  • 6 YEARS EXHIBITION EXPERIENCE.

FAQ
Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
