2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal

Jinan Huaxia Machinery Equipment Co., Ltd.
  • After-sales Service：Provided
  • Warranty：2years
  • Certification：CE, ISO 9001:2000, ISO 9001:2008, TUV
  • Condition：New
  • Control：Automatic
  • Application：Metal

Base Info

  • Model NO.：HXP-4080
  • Connected Shaft Number：3-Shaft
  • Style：Gantry
  • Type：CNC
  • Power Supply：USA Hyperrtherrm ,China Huayuan
  • Cutting Method：Air Cutting
  • Machine Work Together：Air Compressor(Min 0.8 MPa Power)
  • Control System：Starfire,Flmc-F2300,Start,Nc-Studio
  • Nesting Software：Fastcam Australia
  • Input Voltage：3 Phase 380V for Power Source
  • File Transfer Mode：USB Interface
  • Design Software：Auto CAD, Caxa
  • Arc：Non-Contact
  • Cooling：Water Cooling
  • Language：8 Different Language(See Details)
  • Flame Cutting：Oxygen,Acetylene,Propane,Coal Gas
  • Transport Package：Plywood Case After Packed by Wrapping Film
  • Specification：4000X8000MM
  • Trademark：HUAXIA
  • Origin：China Minland
  • HS Code：8456401000
  • Production Capacity：50,Month

Description

************* Gantry plasma/flame cutting machine Cross Beam Length(X axis)

4500mm (can be customed as user's demand)

Longitudinal Rail Length(Y axis)

8500mm (Rail can be customed as user's demand)

Effective Cutting Width (X axis)

4000mm(can be customed as user's demand)

Cutting Mode Flame only; Plasma only; Flame and Plasma Drive Mode Bilateral-side Drive Method Rack and pinion drive for X and Y axes Flame Cutting Thickness 5-200mm Cutting Speed 0-12000mm per minute Moving Precision 0.01mm per step Nesting Software (option) FASTCAM    30

Plasma power supply

2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal

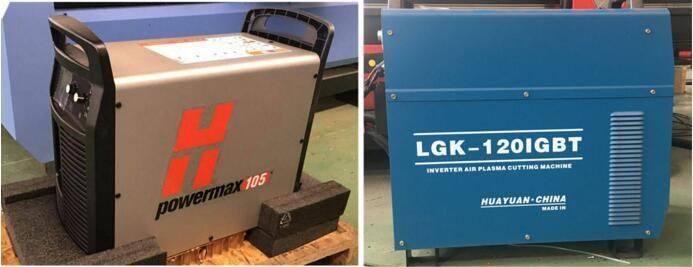

          USA Hypertherm Plasma Power source                                 China LGK Plasma Power Source

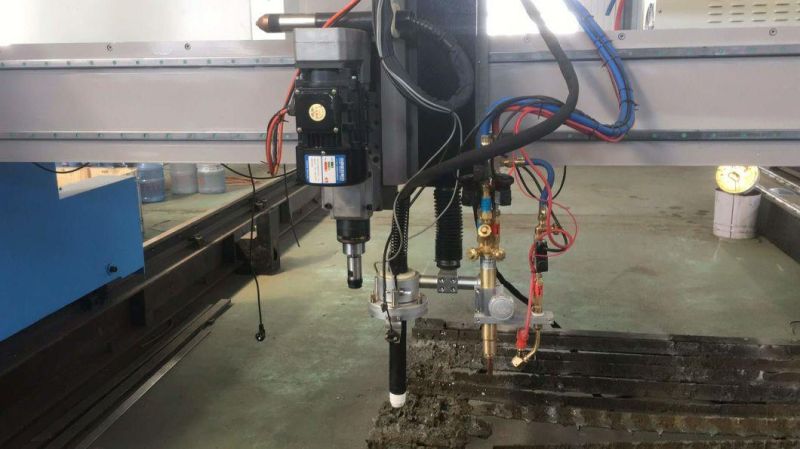

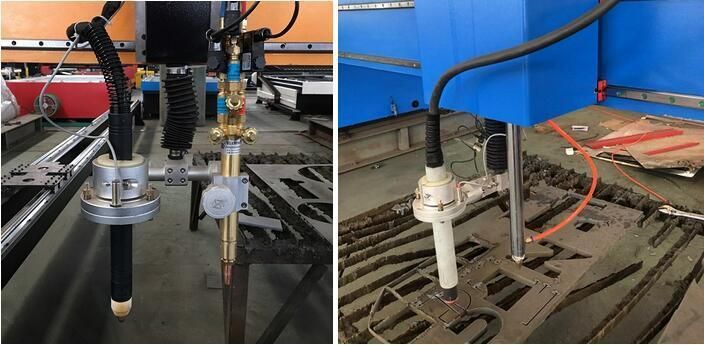

 Cutting torch option:
    --Only Plasma Torch: 0.5~35mm thickness cutting work
     --Flame and plasma Torch: 0.5~300mm thickness cutting work
     --Drilling function: fit for hole drilling work less than 6mm diameter
2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal
2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal

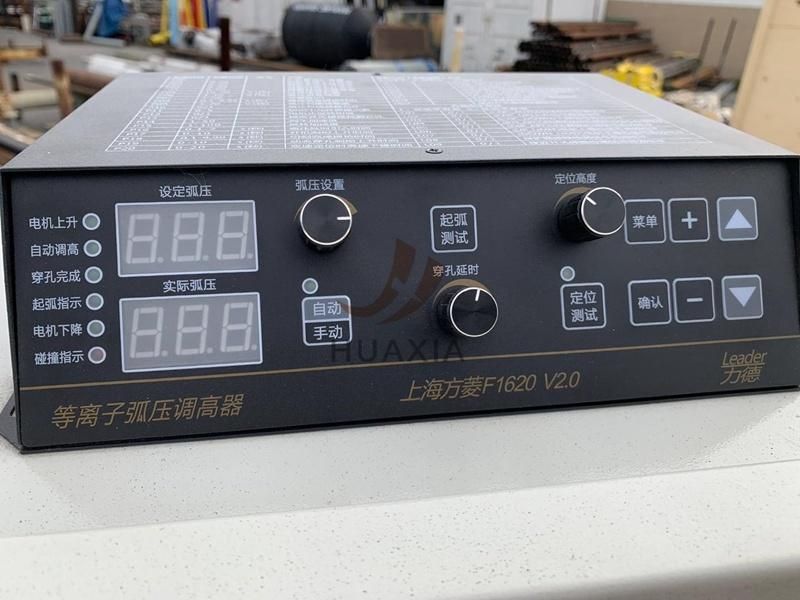

Automatic torch height controller
1325 Metal Stainless Steel CNC Plasma Cutting Machine Plasma Cutter Machine with Best Pricewith this function , the torch can up and down with automatic regarding the sheet radian , so through
your sheet is not flat , you also don't need worry the torch will collide the sheet , then to protect the
cutting torch and ensure the cutting performance.


6)FASTCAM software
1325 Metal Stainless Steel CNC Plasma Cutting Machine Plasma Cutter Machine with Best Price1325 Metal Stainless Steel CNC Plasma Cutting Machine Plasma Cutter Machine with Best Price
After nest your drawing by FASTCAM nesting software ,it can make your cutting sheet in biggest
usage , then it can reduce waste and save cost
STARCAM for choose

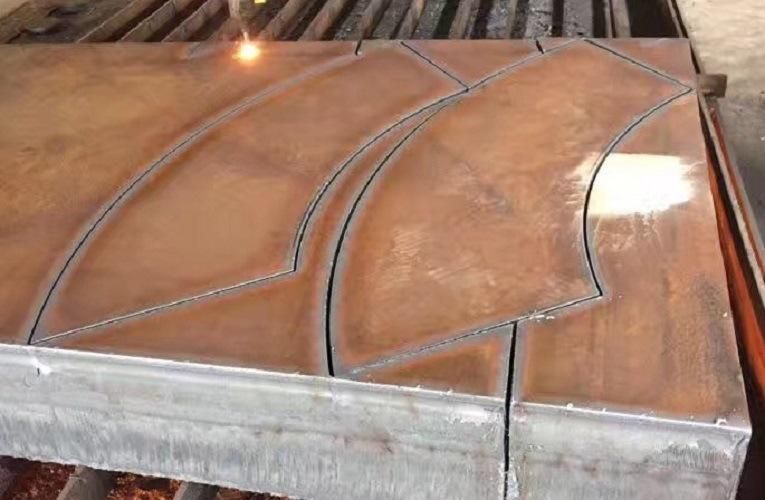

Samples
2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal

Packing
2021 Good Price High Cutting Speed Gantry CNC Metal Plasma Cutting Machine Oxy Cutting Metal

FAQ

Q1: I know nothing about this machine, what type of machine should I choose?
We will help you choose the suitable machine and share you the solution; you can share us what material will you cut, the material thickness and working size.

Q2: When I got this machine, but I don't know how to use it. What should I do?
We will send English manual and Operation Video and for the machine. Our engineer will do training online. If needed, we can send our engineer to your site for training or you can send the operator to our factory for training.
