• Transport Package：Base Framed by Steel and Plastic Bag
• Specification：1 Unit
• Trademark：ZDMT
• Origin：China(Mainland)
• Production Capacity：50unit,Month

Basic Info.

Transport Package Base Framed by Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China(Mainland) Production Capacity 50unit/Month

Product Description

China Made Hydraulic Guillotine CNC Cutting Machine
The model of this hydraulic guillotine shearing machine is ZDG-832 (QC11Y-8*3200),it can cut 8mm thickness and 3200mm length mild steel plate.Steel welded structure with stress-free;Three guide trolleys enable accurate movement and fine shearing results;Adjustable rake angle to minimize deformation of sheared plate;Both upper blade and lower blade has 4 cutting edge for long lifespan of using.


Main function and features


· Steel welded structure with stress-free.

· Three guide trolleys enable accurate movement and fine shearing results.

· Adjustable rake angle to minimize deformation of sheared plate.

· Swing away backgauge function for cutting longer sheets.

· Both upper blade and lower blade has 4 cutting edge for long lifespan of using.

· E21S can control the movement of backgauge,achieving efficient and highly precise positioning.


Related Configuration with details

1  Rear view of ZDG-832 hydraulic guillotine shear machine.
2  E21S economic simple CNC controller for ZDG-832.
3  Nitrogen return device,with strong power and quick return speed.
4  Blade clearance adjusting device,on front of the machine frame,it can show the scale,with easy adjustment.
5  Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Penetration guard fence around the shear,not only protect the safety of  operator but also observe the shearing position.
6  High quality electrics,with stable quality and long lifespan.
7  Domestic high quality hydraulic system,high pressure resistant and good performance.
8  Back gauge with buffer device,it can effective keep the parallelism of backgauge beam.
9  Backgauge driving structure,with powerful torque.
10 Well-known brand motor and good quality oil pump,with strong force and low noise.
11 Full-metal pipe shroud connection,nonexpansion when high temperature,can guarantee precision for long time.
12 Guillotine knife rest structure,knife rest up and down vertical movement,the bearing with small stress and wear-free,so it can accurate control blade clearance for long    time,and can adjust the shearing angle.

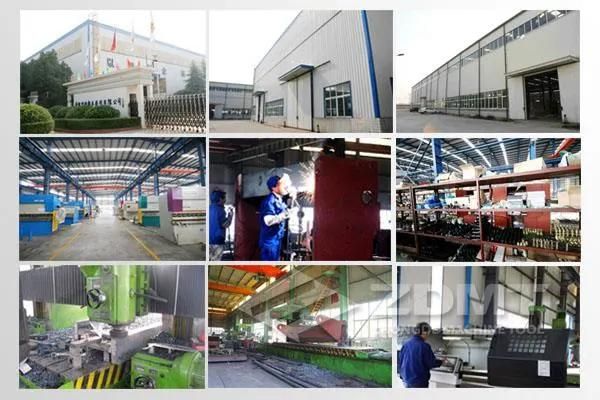

Factories and workshops



Certificates


Customers,agents and friends

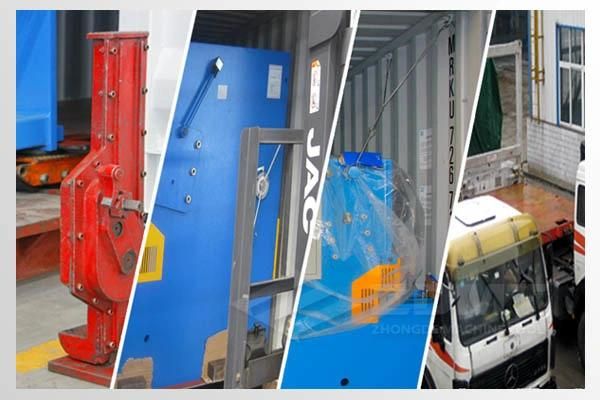

Professional machine loading in ZDMT factory

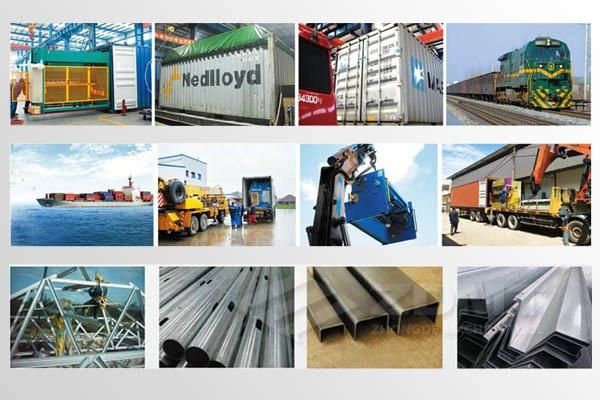

Logistics and final applications
