• Transport Package：Standard Fumigated Wooden Case
• Trademark：WG
• Origin：Guangdong, China (Mainland)

Basic Info.

Transport Package Standard Fumigated Wooden Case Trademark WG Origin Guangdong, China (Mainland)

Product Description

9 Axis 3D CNC Heavy-duty Metal Wire Bending Forming Machine

Product Description
CNC wire bending machine CNC 3D wire bending machine  is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.

Advantages & Features:

1.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer
Technical parameters

Techanical Data:

Wire size(mm)	3.0-8.0
axis	9
feeding roller number	3 pairs
wire turning angle	unlimited
platform lifting height	25-120mm
twisting head lift height	20-180mm
distance between cutting is and bending head	/
distance between bending head and machine body	/
out twisting lifting height	20-55mm
left to right moving range	left :100mm,right:50mm
Feeding front and back moving range	front:300mm  back:100mm
machine size(mm)	4100*1520*1600
machine weight(kg)	3400

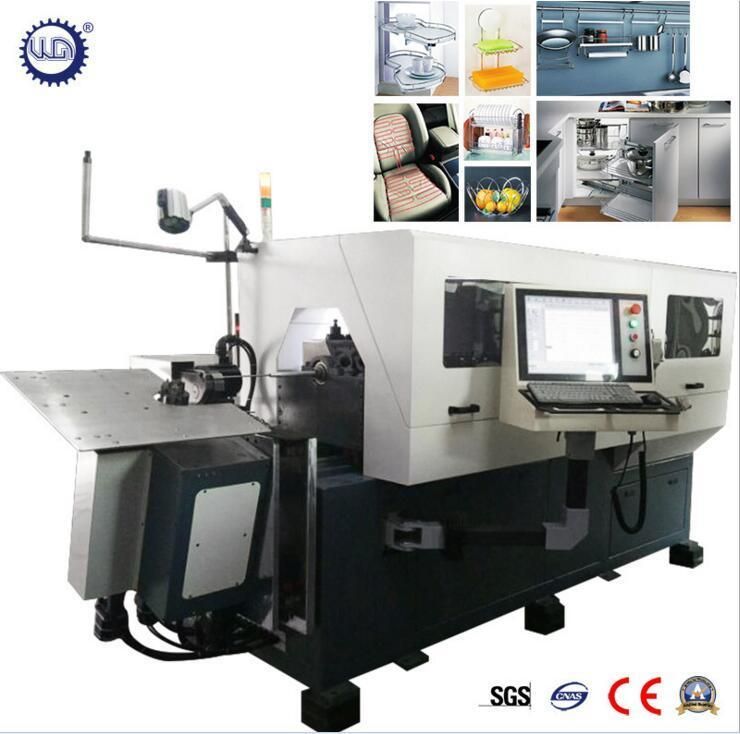

9 Aixs 3D CNC Heavy-duty Metal Wire Bending Forming Machine show
