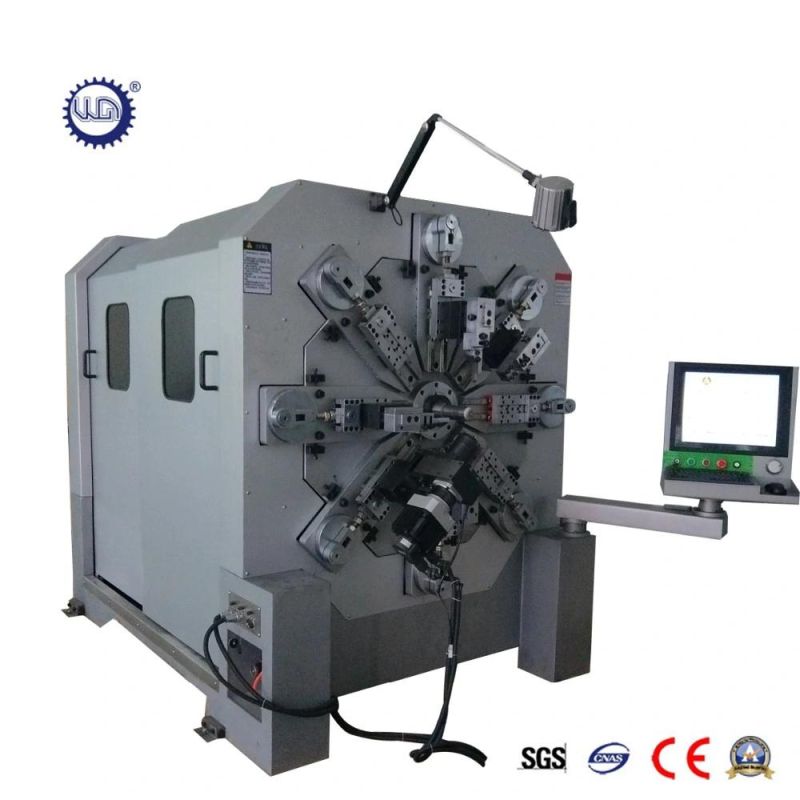

Full Automatic 3D CNC Wire Kitchen Utensils Forming Machine
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Condition：New
- Certification：Ce
- Automation：Automatic
- out Twisting Lifting Height：20-55mm
- Axis：10
- Raw Material：Steel Bar
Base Info
- Left to Right Moving Range：Lift:80mm Right:40mm
- Twisting Head Lifting Height：20-100mm
- Platform Lifting Height：50-170mm
- Power：CNC
- Wire Size：2.0-6.0mm
- Feeding Front and Back Moving Range：Front:300mm Back:100mm
- Extra Services：Welding , Brazing
- Wire Turning Angle：Unlimited
- Feeding Roller Number：3 Pairs
- Name：3D CNC Wire Kitchen Utensils Forming Machina
- Material / Metal Processed：Stainless Steel
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Transport Package：Export Tandard Wooden Box
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Left to Right Moving Range Lift:80mm Right:40mm Twisting Head Lifting Height 20-100mm Platform Lifting Height 50-170mm Power CNC Wire Size 2.0-6.0mm Feeding Front and Back Moving Range Front:300mm Back:100mm Extra Services Welding / Brazing Wire Turning Angle Unlimited Feeding Roller Number 3 Pairs Name 3D CNC Wire Kitchen Utensils Forming Machina Material / Metal Processed Stainless Steel After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Export Tandard Wooden Box Trademark WG Origin Guangdong, China (Mainland)Product Description

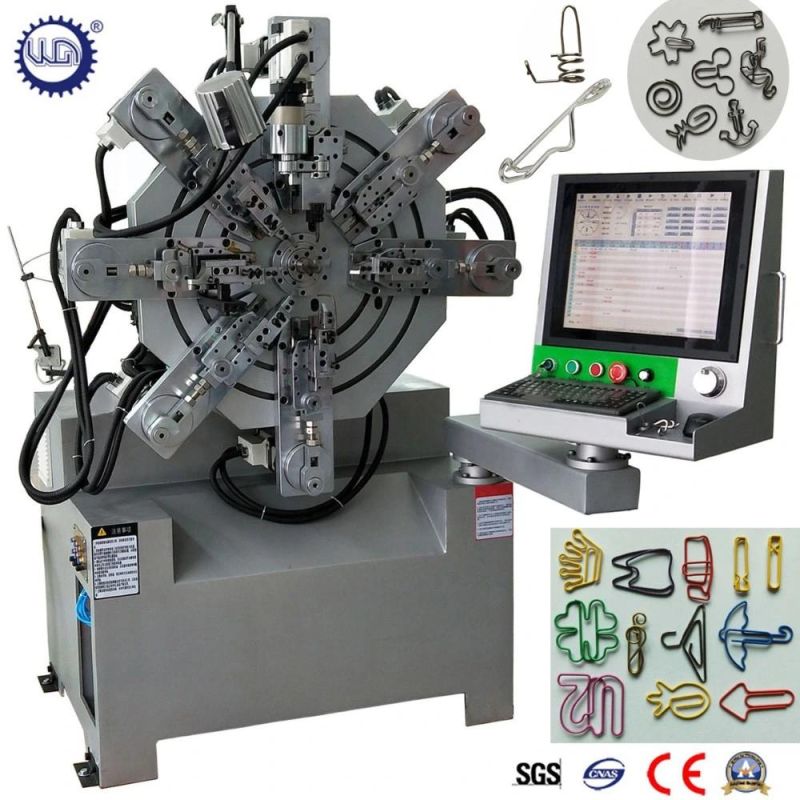

Product Description3D CNC Wire Baskets Bending Machine
Production description :CNC 3D wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
| Model | GT-WB-60-5A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 5 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution

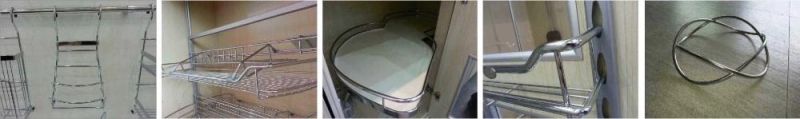

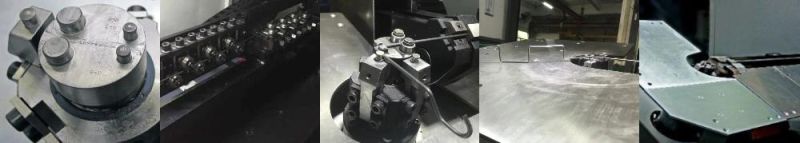

Detailed Images
Certifications
Service Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Related Products
10 axis CNC wire bending machine
91.8% Response Rate
camless wire bending machine
91.8% Response Rate

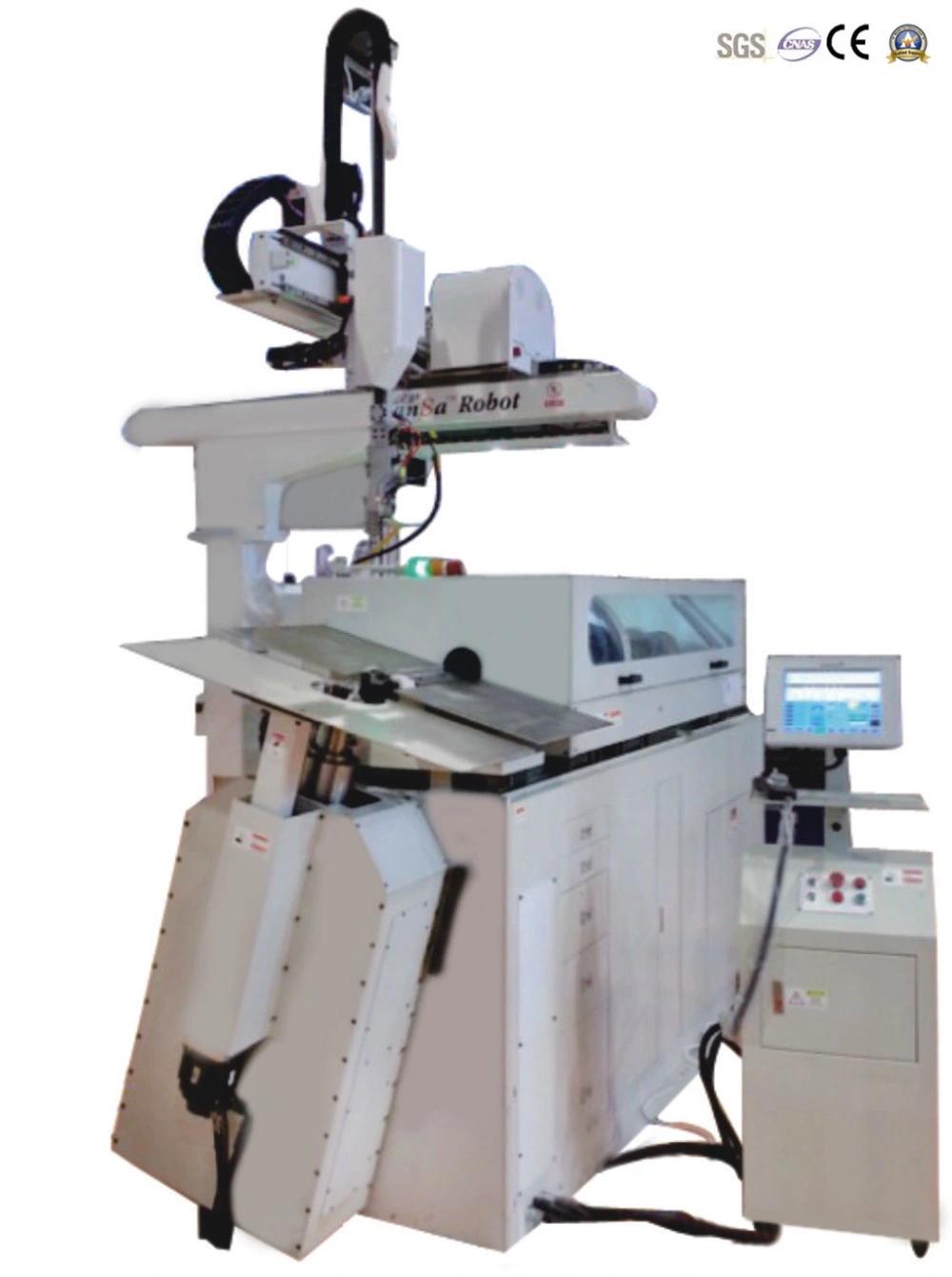

CNC wire bending machine with mechanical hand
