• Model NO.：W11-30x2500
• Type：Roller-Bending Machine
• Driver：Motor+ Gear
• Application：Machinery & Hardware, Textiles, Chemical
• Type for Cutting Machine：Roling Machine
• Type for Fold-bending Machine：Mechanical Rolling Machine
• Transport Package：Steel Plate
• Specification：ISO 9001: 2000
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：200 Units, Month

Basic Info.

Model NO. W11-30x2500 Type Roller-Bending Machine Driver Motor+ Gear Application Machinery & Hardware, Textiles, Chemical Type for Cutting Machine Roling Machine Type for Fold-bending Machine Mechanical Rolling Machine Transport Package Steel Plate Specification ISO 9001: 2000 Trademark HAVEN Origin China HS Code 8462 Production Capacity 200 Units/ Month

Product Description

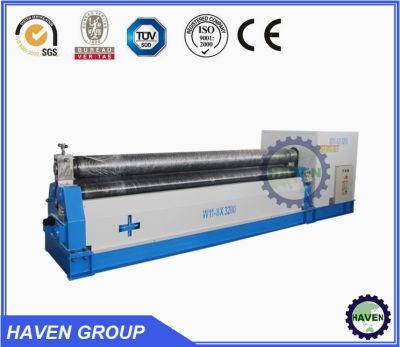

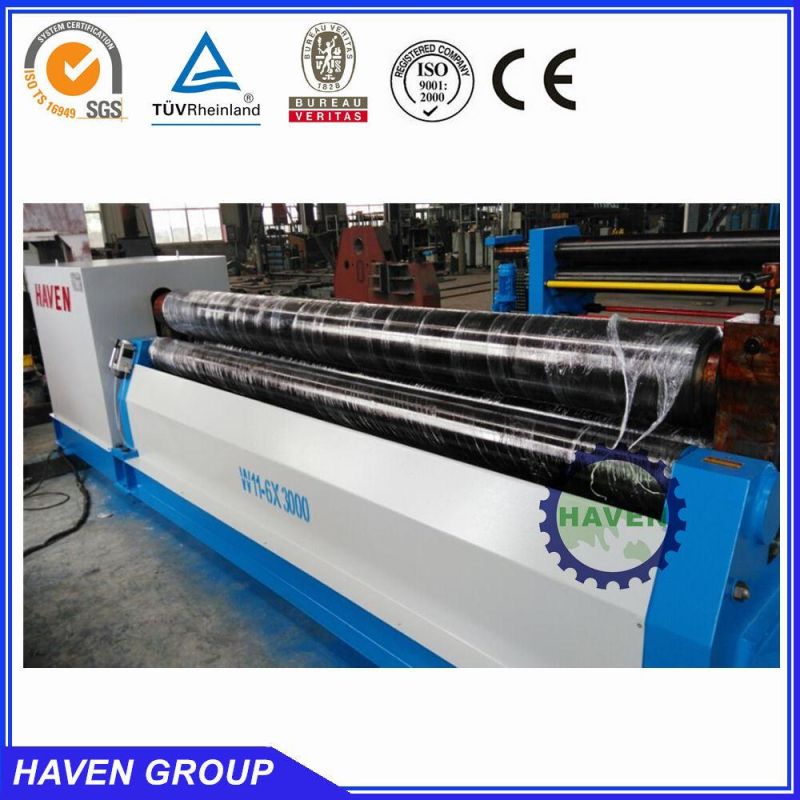

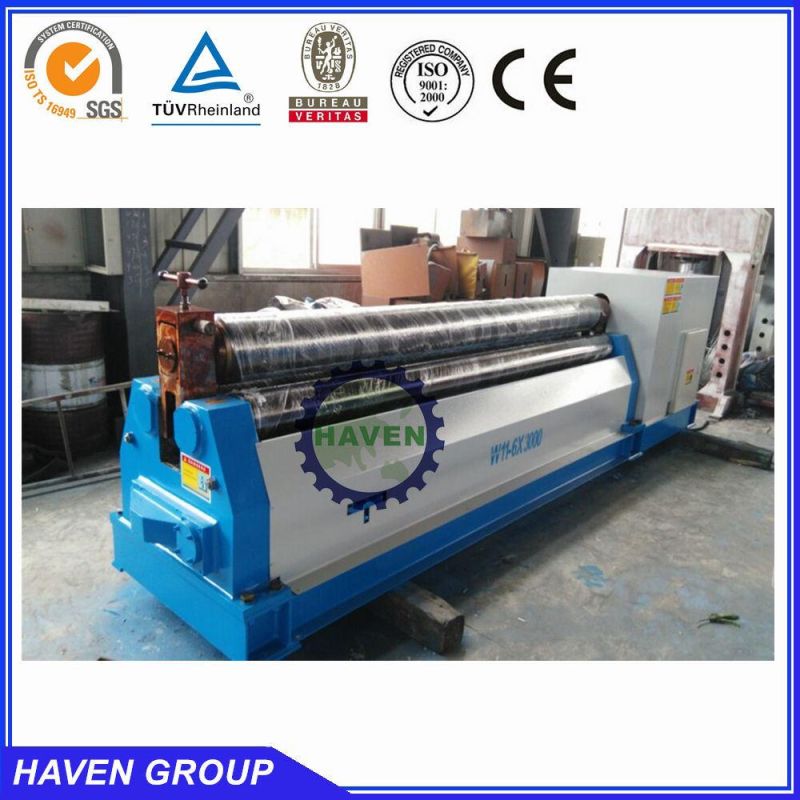

W11-30X2500 Mechanical Type Rolling and Bending Machine




1. Main functions:
1. Pre-bending is available means top-roller can be adjusted in directions upwards- downwards, right- left.
2. Cone-bending function is also available by adjustment of two ends of top roller to make top roller inclinable, so that one end is in low position, another is in high position, with the help of cone-bending device, W11S machine can produce cone type tube.
3. Of course, the required cone angle can not be reached in one time of operation, it needs some operations through gradual adjustment of the declining angle of top roller. During the operation, workpiece lies on the bottom rollers, workers are safe and easy to run the machine.
4. The shape of "O", "U", "R" or combined section shape is also available.
5. The machine is completed with economical PLC control function achieve high working efficiency.
6. PLC is from SIEMENS or OMRON;
7. Digital Screen is from DELTA, Taiwan;
8. Hydraulic valve and O-Seals are from UOSHEN brand, Taiwan
9. Motors are from SIEMENS brand
10. Main electric parts are from SIEMENS or SCHNEIDER
11. Gearbox is from China famous brand
12. Machine frame is welded with quality steel plate
13. Top roller is made with 42CrMo forded alloy steel
14. Bottom rollers are made with 45# forged alloy steel
15. To strong the bottom rollers, support rollers are adopted

2. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement

3. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.

4. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.


Model	Max. thickness	Max. width	Bending speed	Workpiece Min. Dia.	Top roller Dia	Bottom roller Dia.	Dis. bottom rollers	Main motor
W11-4x3000	4	3000	5	450	140	160	220	5.5
W11-6x2000	6	2000	5	430	170	170	220	5.5
W11-6x2500	6	2500	4	550	220	170	250	7.5
W11-6x3000	6	3000	4	600	240	190	280	7.5
W11-8x2000	8	2000	5	480	190	170	220	5.5
W11-8x2500	8	2500	4	600	240	180	280	7.5
W11-8x3000	8	3000	4	600	240	180	280	11
W11-10x2000	10	2000	4	550	220	170	250	7.5
W11-10x3000	10	3000	4	650	260	220	340	11
W11-12x2000	12	2000	4	600	240	180	280	7.5
W11-12x2500	12	2500	4	650	260	220	320	11
W11-12x3000	12	3000	4	700	280	24	360	15
W11-16x1500	16	1500	5	600	240	180	280	7.5
W11-16x2000	16	2000	4	650	260	220	320	11
W11-16x2500	16	2500	4	700	280	240	360	15
W11-16x3200	16	3200	4	850	340	280	440	18.5
W11-20x2000	20	2000	4	700	280	240	360	11
W11-20x2500	20	2500	4	850	340	280	440	18.5
W11-20x3000	20	3000	4	930	370	280	440	22
W11-25x2000	25	2000	4	850	340	280	440	18.5
W11-25x2500	25	2500	4	930	370	280	480	22
W11-30x2000	30	2000	4	930	370	280	480	22
