• Power：CNC
• Material：Steel Material
• Control System：CNC Control
• Extra Services：Cut to Length
• Advantage：Multiple Function

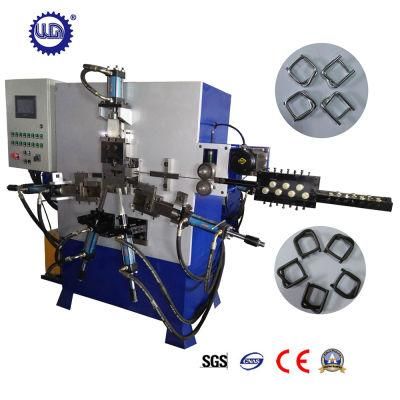

• Machine Type：Coiling Bending Machine
• Voltage：220V,380V,440V,415V,Customized
• Material / Metal Processed：Stainless Steel
• After-Sales Service Provided：Field Installation, Commissioning and Training

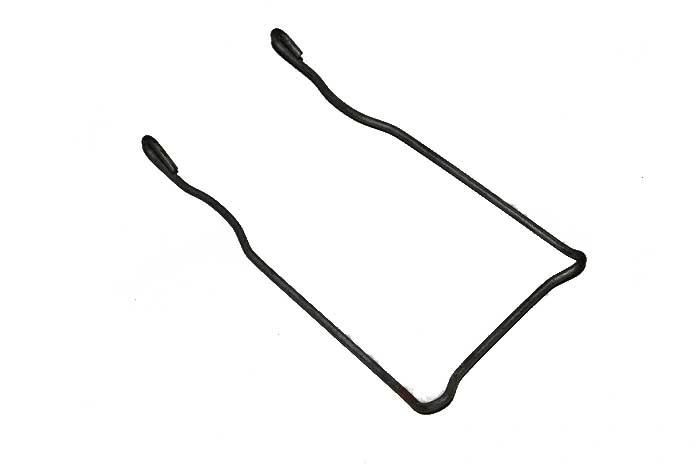

• Application：Wire Bending & Forming
• Trademark：WG
• Origin：Guangdong, China (Mainland)

Basic Info.

Power CNC Material Steel Material Control System CNC Control Extra Services Cut to Length Advantage Multiple Function Machine Type Coiling Bending Machine Voltage 220V/380V/440V/415V/Customized Material / Metal Processed Stainless Steel After-Sales Service Provided Field Installation, Commissioning and Training Application Wire Bending & Forming Trademark WG Origin Guangdong, China (Mainland)

Product Description

Technical Parameter

Model		GT50-12R
Line Diameter	mm	1.2-5.0
Max Line Feeding Value	mm	10000
Min Line Feeding Value	mm	0.01
Max Line Feeding Speed	m/min	80
Max Line Length		Unlimited
Axis		12
Total Power of Servo Motors	kw	22.9
Input Power	v/hz/ph	380/50/3
Control system		Made in Taiwan
Program Storage	plus	3000
Air Pressure	kg/cm2	5~6
Probe Number		3
Overall length	mm	2650
Overall width	mm	1800
Overall height	mm	2070
Weight	kg	4500

SPECIFICATIONS:

1) Independent operating arms control one working position respectively.
2) Adopting Japanese Sanyo Denki servo motor and Taiwanese controller screen display.
3) Camless design, flexible in adjusting and great in precision.
4) Running in a high automatization and intellectualization, no pollution.
5) Bilingual interface, easy to operate.

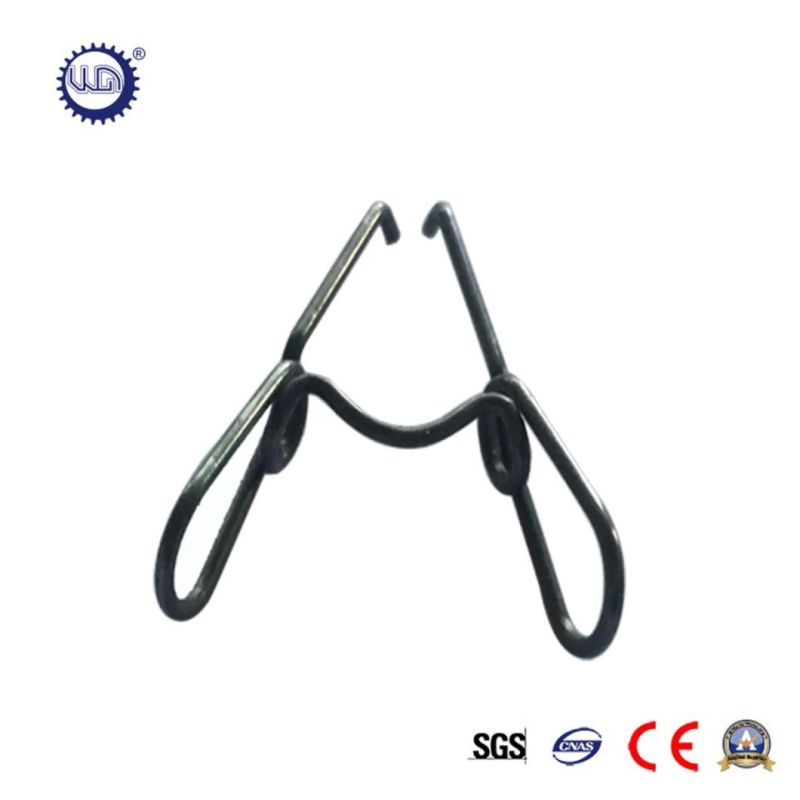

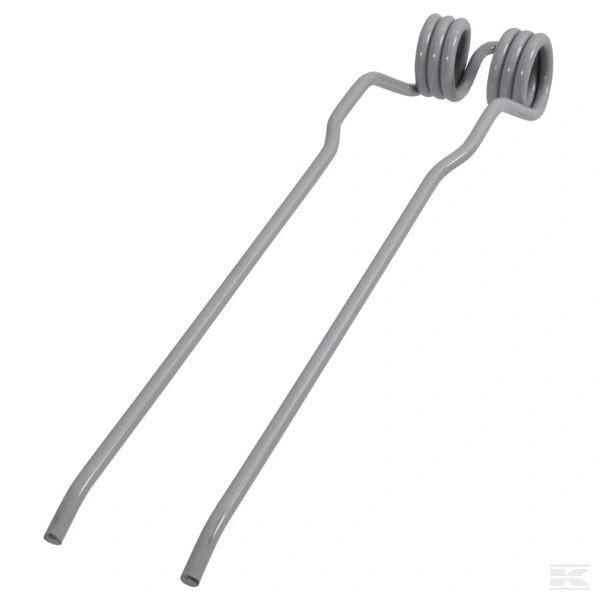

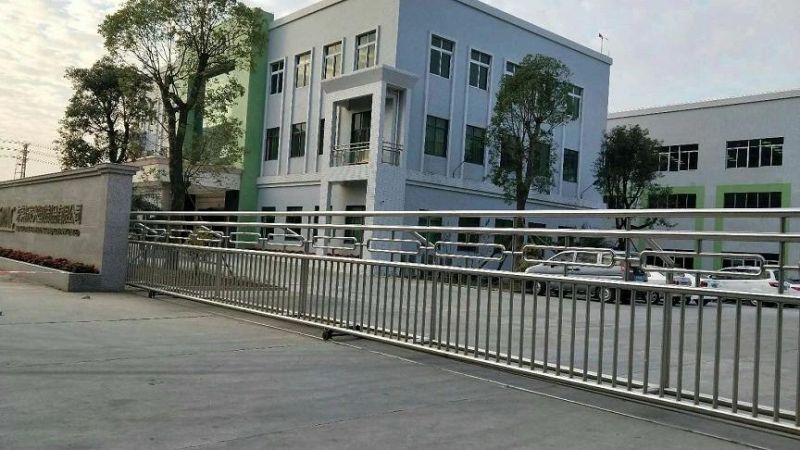

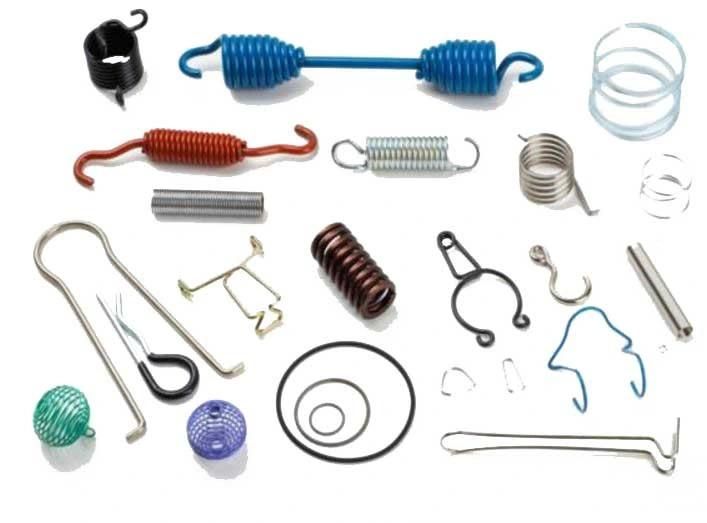

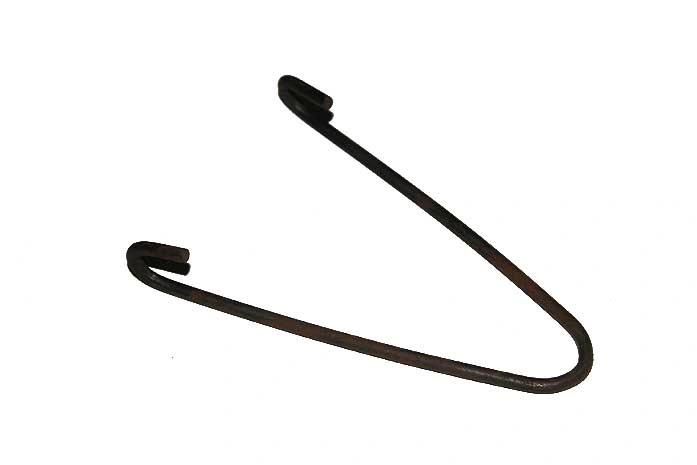

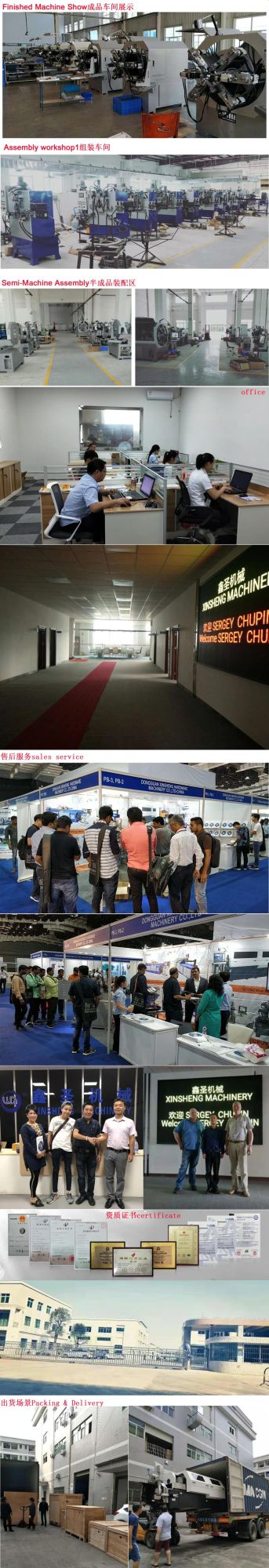

Product ImagesCertifications  Packing & DeliveryOur Company
