• Power：CNC
• Extra Services：Cut to Length
• Control System：CNC Control
• Advantage：Fully Automatic and Precise
• Machine Type：Coiling Bending Machine
• After-Sales Service Provided：Field Installation, Commissioning and Training
• Voltage：220V,380V,440V,415V,Customized
• Material / Metal Processed：Stainless Steel
• Application：Wire Forming & Bending
• Trademark：WG
• Origin：Guangdong, China (Mainland)

Basic Info.

Power CNC Extra Services Cut to Length Control System CNC Control Advantage Fully Automatic and Precise Machine Type Coiling Bending Machine After-Sales Service Provided Field Installation, Commissioning and Training Voltage 220V/380V/440V/415V/Customized Material / Metal Processed Stainless Steel Application Wire Forming & Bending Trademark WG Origin Guangdong, China (Mainland)

Product Description

Technical Parameter

Model	GT35-10
Line Diameter	0.8-3.5	mm
Max Line Feeding Value	10000	mm
Min Line Feeding Value	0.01	mm
Max Line Feeding Speed	120	m/min
Max Line Length	Unlimited
Axis	10
Total Power of Servo Motors	14.2	kw
Input Power	3	v/hz/ph
Control system	Made in Taiwan
Program Storage	3000	plus
Air Pressure	5~6	kg/cm2
Probe Number	3
Overall length	1400	mm
Overall width	1550	mm
Overall height	1800	mm
Weight	1600	kg

SPECIFICATIONS:

1) Every axis controls a working station with an individual servo motor separately, wire feeding is stable.
2) Adopts Japanese Panasonic servo motor, German ROUISTAuto reducer and Taiwan controlling system, the machine works in high precision with long work lifetime.
3) Camless design, flexible in adjusting and great in precision.
4) Running in a high automatization and intellectualization, no pollution.
5) Bilingual interface(English optional), easy to operate.

6)Technical design is much better than ordinary 3d wire bending machine.

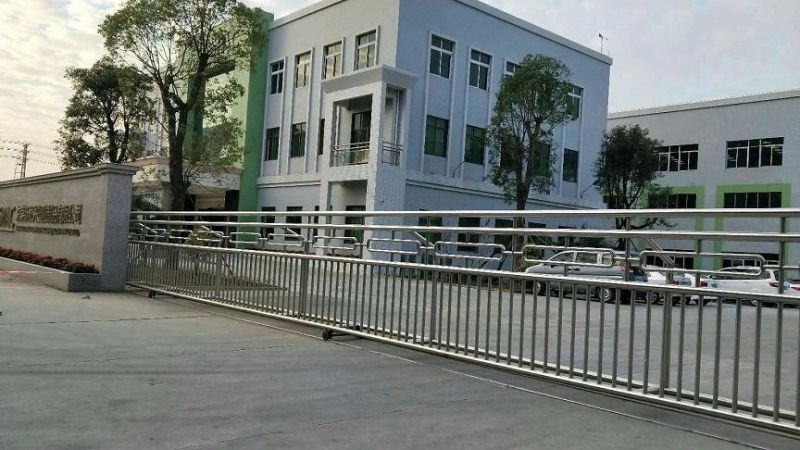

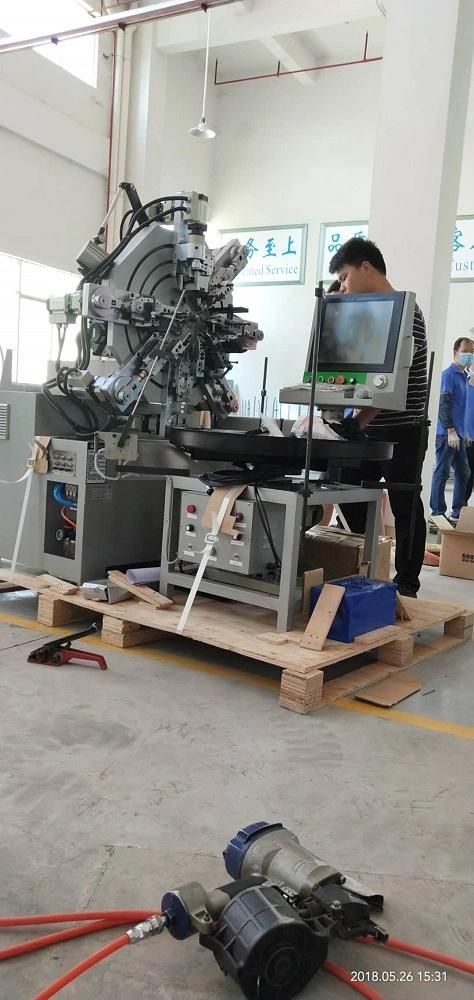

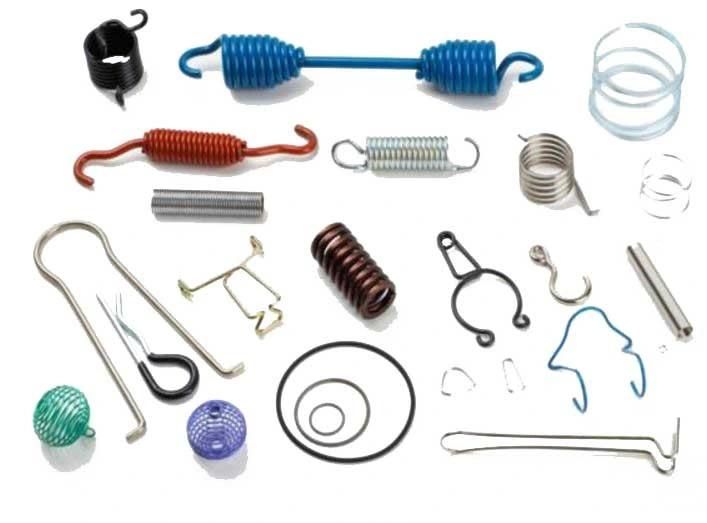

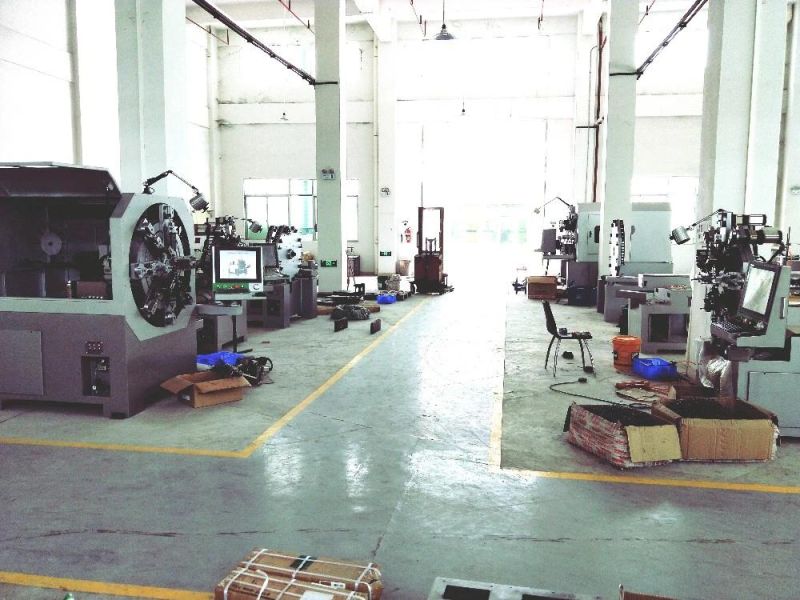

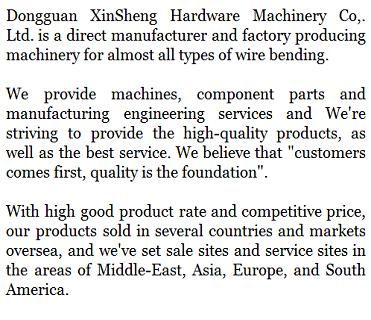

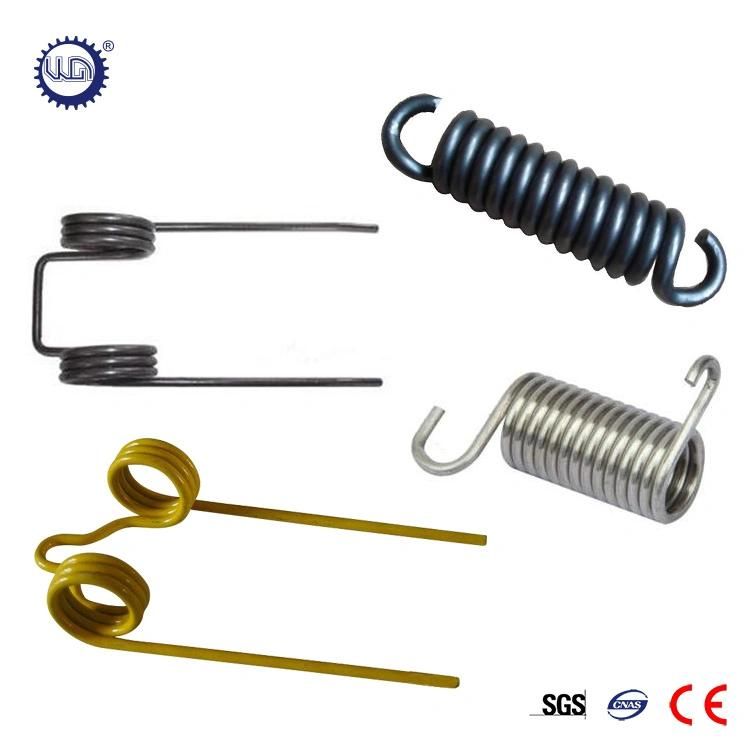

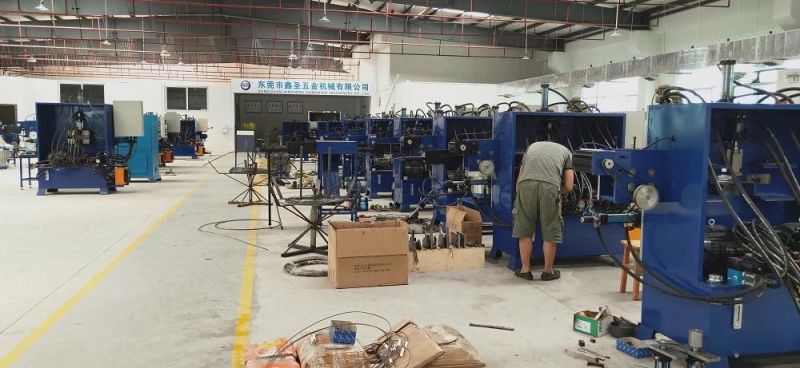

ApplicationsPacking & Delivery Our Company

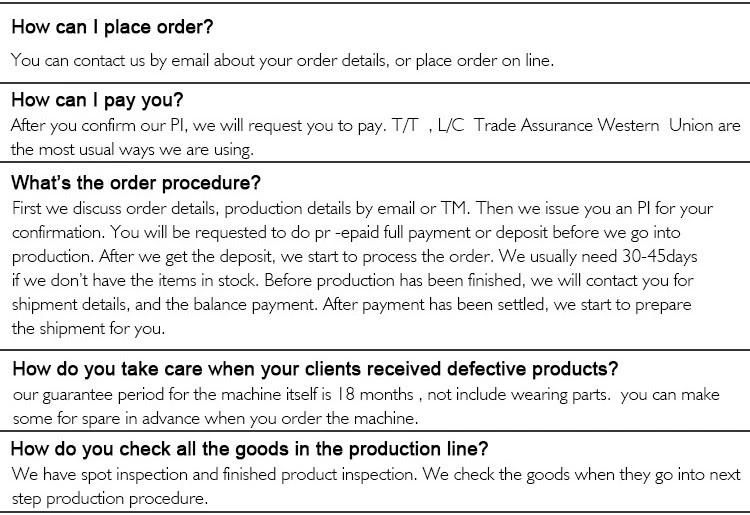

FAQCertifications
