High Quality 3D CNC Metal Wire Bending Machine From Dongguan China
Dongguan Xinsheng Hardware Machinery Co., Ltd.- Warranty：2 Years, 18 Months
- Condition：New
- Certification：CE
- Automation：Automatic
- Type：Metal Bender
- Raw Material：Steel Bar
Base Info
- Power：CNC
- Wire Size：2.0-6.0mm
- Material：Mild Steel
- Extra Services：Cut to Length
- Name：3D CNC Metal Wire Bending Machine From Dongguan
- Year：2018
- Machine Type：Bending Machine
- Weight：3000kg
- Voltage：220V,380V,415V,440V,Customized
- Application：Stainless Steel Strip Bending
- Material / Metal Processed：Carbon Steel
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Power CNC Wire Size 2.0-6.0mm Material Mild Steel Extra Services Cut to Length Name 3D CNC Metal Wire Bending Machine From Dongguan Year 2018 Machine Type Bending Machine Weight 3000kg Voltage 220V/380V/415V/440V/Customized Application Stainless Steel Strip Bending Material / Metal Processed Carbon Steel Trademark WG Origin Guangdong, China (Mainland)Product Description

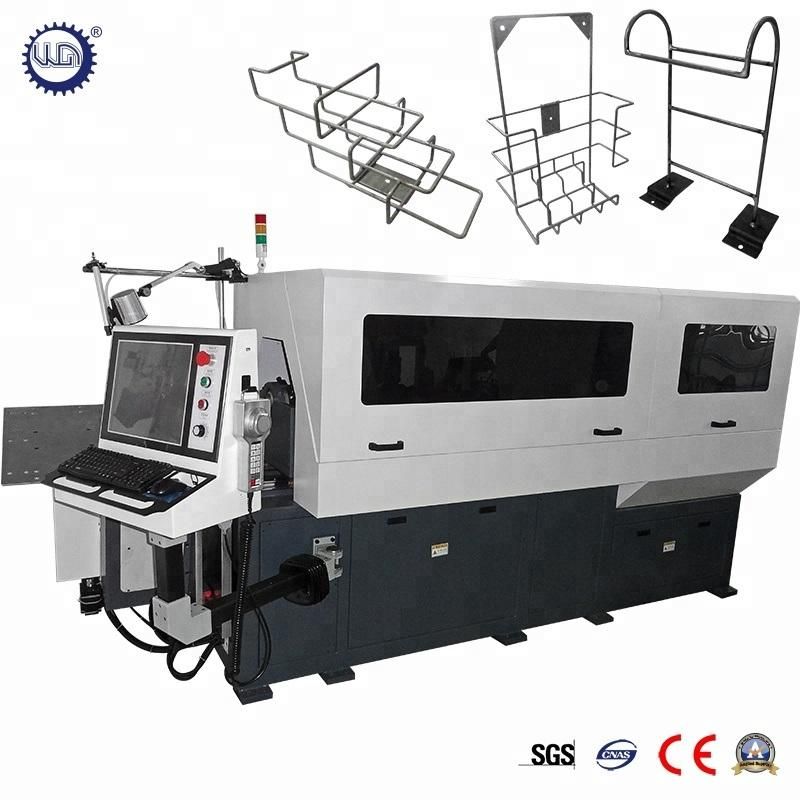

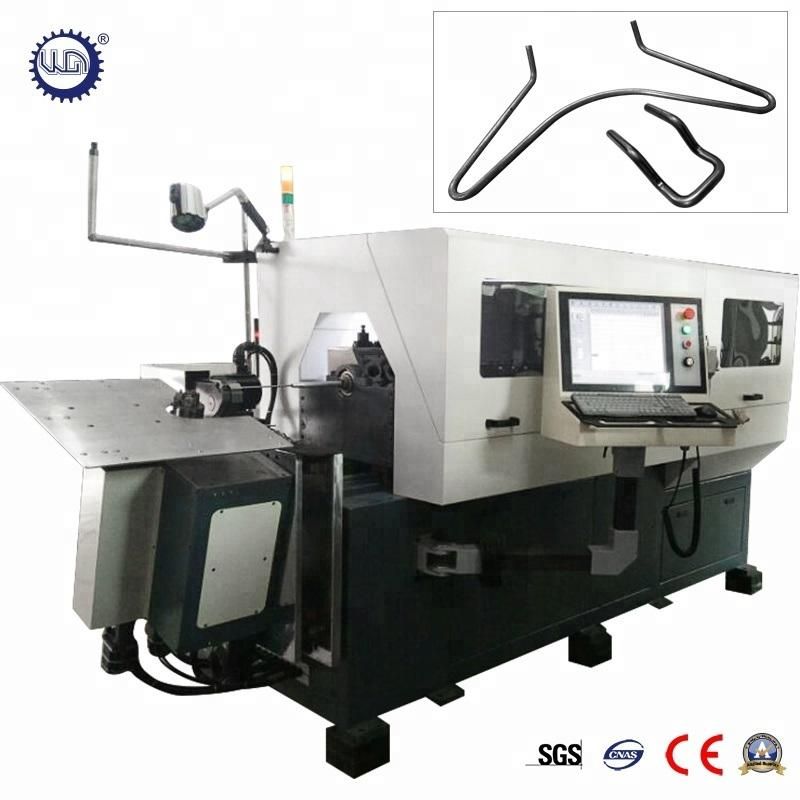

Product Description3D CNC Metal Wire Bending Machine from Dongguan
3D CNC wire bending machine is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.
Advantages & Main Features
1)3-4 pairs feeding roller,feeding motor fixed on the bottom base, so as to decrease the feeding box weight,that wire rotation is more fast and stable.
2)Twist head is designed in copper tube transport, more stable and stronger than bearing transfer
3) Adopting advanced world famous brand components in CNC parts ,electric parts and operation parts.
4) Running in a high automatization and intellectualization,no pollution
| Model | GT-WB-60-7A | GT-WB-60-10A | GT-WB-80-9A | GT-WB-100-9A | GT-WB-120-7A |
| Wire Size(mm): | 2.0-6.0 | 2.0-6.0 | 3.0-8.0 | 5.0-10.0 | 5.0-12.0 |
| Axis: | 7 | 10 | 9 | 9 | 7 |
| Feeding Roller Number: | 3 pairs | 3 pairs | 3 pairs | 4 pairs | 4 pairs |
| Wire Turning Angle: | Unlimited | Unlimited | Unlimited | Unlimited | Unlimited |
| Platform lifting height: | 50-170mm | 50-170mm | 25-120mm | 25-120mm | 25-120mm |
| Twisting head lifting height: | 20-100mm | 20-100mm | 20-80mm | 20-80mm | 20-80mm |
| Distance between cutting and bending head | / | / | / | 305mm | 305mm |
| Distance between bending head and machine body | / | / | / | 800mm | 800mm |
| Out twisting lifting height | / | 20-55mm | / | / | / |
| Left to right moving range | / | left:80mmright:40mm | left:100mm right:60mm | / | / |
| Feeding front and back moving range | / | front:300mm back:100mm | front:300mm back:100mm | / | / |
| Machine size(cm) | 180*120*120 | 300*120*140 | 350*120*150 | 380*140*170 | 450*180*170 |
| Machie weight(kg) | 3000.0 | 3200.0 | 3400.0 | 4800.0 | 8600.0 |

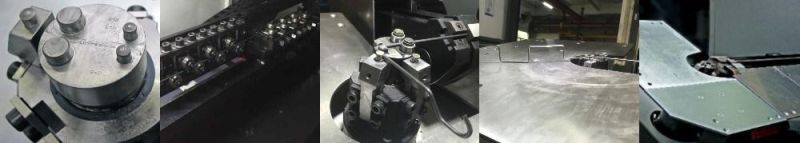

Detailed Images
Certifications
Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
