• Model NO.：GM-SB-50NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-SB-50NCB
• Trademark：Gmacc
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-SB-50NCB Trademark Gmacc Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Machine Characteristics

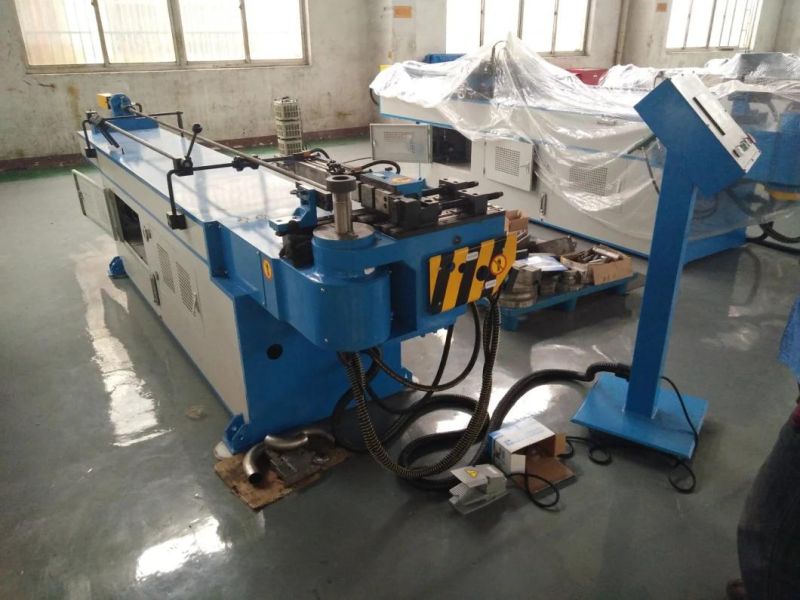

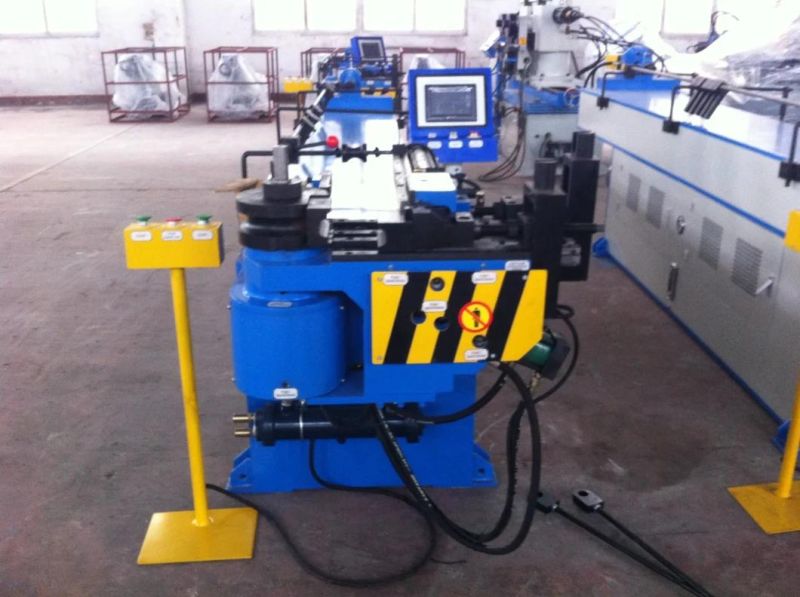

NC series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine, hydraulic, and electricity.

Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NC series a professional and high speed European pipe bending equipment.

Name	Unit	Parameter
Max.   Bending  Capacity	mm	50*2
Bending  Radius  Range	mm	20-250
Max.   Bending  Angle	°	190°
Though  Effective  Distance	mm	2000
Bending  speed	° /sec	45
Turning  speed	° /sec	200
Bending  precision	°	± 0.10
Turning  precision	°	± 0.10
Rotating  Servomotor  Power	KW	0.75
System  Motor  Power	KW	5.5
Oil  Pump  Delivery  Volume	L	17
Max.   Pressure	Mpa	16
L*W*H  (Packaging  Dimension)	mm	4000*800*1300
Weight	T	2.5
