• Model NO.：GM-38
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM38
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-38 Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM38 Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

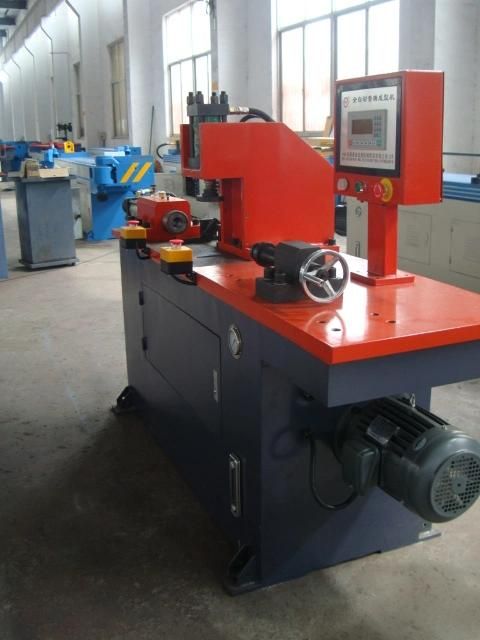

GM-38 End Forming Machine is a kind of high efficiency, full-auto machine. It is controlled by oil and electricity at the same time. It can reduce, enlarge or blunt pipes. The processed shapes, includes concave-convex section, long, flat, square, enlargement, slanting, V-shaped, open slot and others. According to the customers' choice, the die can be changed.

Construction
Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.
Design Principle
It is controlled by PLC, driven by hydraulic. It is simple to change the dies.
Major Performance.
It adopts PLC control. It is simple to operate, with steady precision, high speed and complete function.

Configuration
Hydraulic systems are imported
Hydraulic motor: Made in Taiwan
Hydraulic pump: Made in Taiwan
Hydraulic valve: Made in Taiwan
Oil way board: Made in Taiwan
Oil cylinder: Made in Taiwan
Double-layer laminated steel tubing used legitimately imported Taiwan

B) Electronic parts
Button Switch: Made in Taiwan
Photoelectric switches and Electrical: Made in Taiwan
PLC: Made in Taiwan

Name	Unit	GM-38
Max.   Reduction  Capacity	Mm	38*2
Max.   Reduction  Length	Mm	120
Reduction  time	S	5-8
Oil  pump	L	12
Motor  Power	Kw	3.0
The  capacity  of  oil  tank	L	90
The  length  of  the  machine	mm	2200
The  width  of  the  machine	mm	520
The  height  of  the  machine	mm	1450
The  weight  of  the  machine	kg	1000
