• Model NO.：WBM Series
• Transport Package：Angle Iron Frame and Human Made Wooden Sheet Box
• Specification：CCC, ISO, UL, CE
• Trademark：KIA-IND
• Origin：USA and China
• HS Code：8463300000
• Production Capacity：100sets Per Year

Basic Info.

Model NO. WBM Series Transport Package Angle Iron Frame and Human Made Wooden Sheet Box Specification CCC, ISO, UL, CE Trademark KIA-IND Origin USA and China HS Code 8463300000 Production Capacity 100sets Per Year

Product Description

I. Main Feature
This is a specially designed equipment for bending steel wire, it is widely used in electrical household appliances, furnitures, steel wire producing industries.
High efficiency, low energy consumption, easily intalled and operate, no pollution and save labour intensity.
Beside the basic standard model, as to different and special size of wire product, the wire bending machine can also be designed and produce specially.
Can bend many pieces of steel wire into various shape at one time.

II. Main Technical Parameters
1. The capacity ^^^^^^^^^^ 3.75kVA;
2. The Max. Wire length^^^^^^ 2200mm or other special wire length;
3. The Min. Bending size ^^^^^^^^ 170*200mm or other special wire length;
4. The Max. Bending ability^^^^^^^^ 6*dia 5mm or 6*dia 5mm /Q235;
5. The Max. Hydraulic pressure ^^^^^^ 7Mpa;
6. The Power ^^^^^^^^^^ 3/380-440V, 50-60Hz;
7. Dimensions(L*W*H) ^^^^^^^^ 2150*930*2150mm;

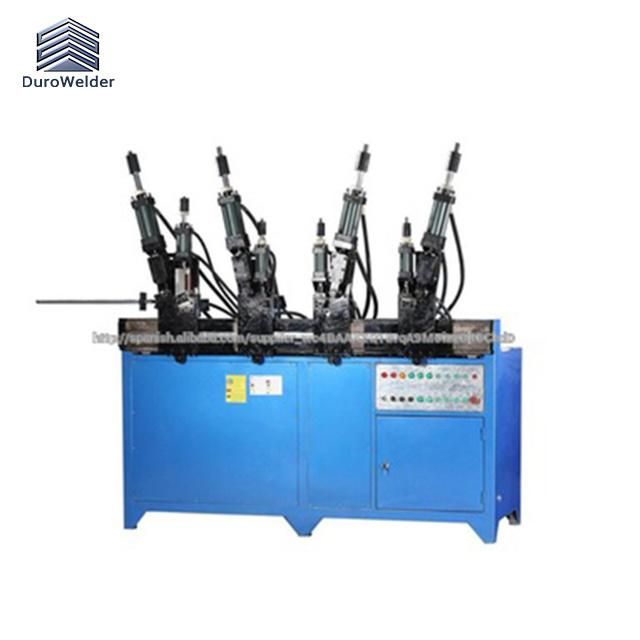

Machine Photo

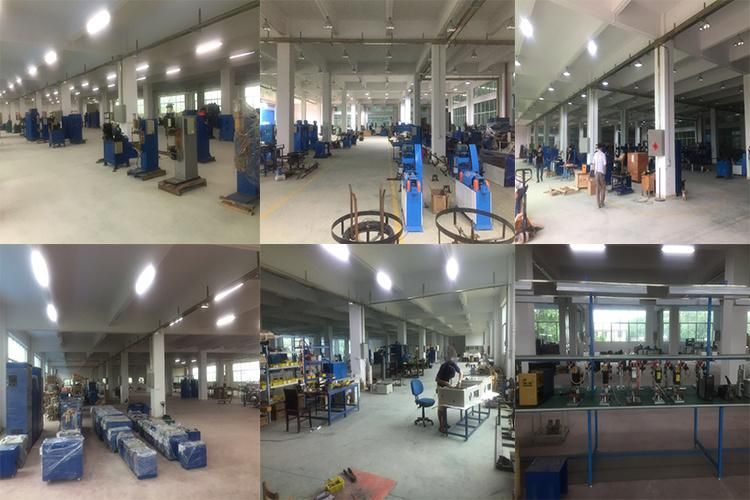

Factory Photo
