• Model NO.：WD100-3100
• Type：Hydraulic Bending Machine
• Pressure：100t
• Bending Length：3100mm
• Application：Machinery & Hardware
• Control System：Delem CNC System
• Main Motor：Yaskawa, Japan
• Electrical Components：Schneider Electrical, French
• Product Name：CNC Hydraulic Press Brake
• Transport Package：Customized
• Specification：8.1T
• Origin：China
• HS Code：846229
• Production Capacity：130

Basic Info.

Model NO. WD100-3100 Type Hydraulic Bending Machine Pressure 100t Bending Length 3100mm Application Machinery & Hardware Control System Delem CNC System Main Motor Yaskawa, Japan Electrical Components Schneider Electrical, French Product Name CNC Hydraulic Press Brake Transport Package Customized Specification 8.1T Origin China HS Code 846229 Production Capacity 130

Product Description

MODEL & CONTROL SHAFTS

WD100-3100

MAIN COMPONENTS

CNC System	DELEM-DA53 control system, Switzerland
Electrical components	Schneider, France / Omron, Japan
Grating Ruler	Fagor, Spain
Servo motor/Servo drive	Yaskawa, Japan
Foot switch	KF, China
Hydraulic System/(Assembly)	BOSCH/HOERBIGER, Germany
Ball Screw/ Linear guide	HIWIN/PMI/PYM from Taiwan
Seals	Walka, Japan

TECHNICAL SPECIFICATION


Model:	Unit	WD100-3100
Control Axis		4 (Y1, Y2, X, R)
Bending force	Ton	100
Bending length	mm	3100
Distance between columns	mm	2600
Stroke	mm	200
Throat Depth	mm	400
Open Height	mm	471
WORKING SPEED:
Fast speed	mm/sec	180
Working speed	mm/sec	9
Return speed	mm/sec	180
CAPACITY:
Hydraulic oil standard	/	#46 Anti-wear hydraulic oil
Overall dimensions	mm	3265*1615*2700
Power supply		380V/7.5KW (As customer requirement)
Weight (Approx)	T	8.1

STRUCTURE CHARACTERISTICS AND STANDARD FEATURES

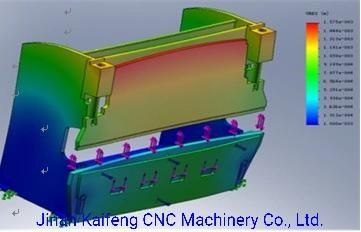

The frame, combined structure, has been heated processed and highly frequently vibrated.  Guarantee the whole precision, rigidity, excellent torsion and stability of the machine. The thick working table plate and ram give the assembly high rigidity. The linear and angle of the finished plate are the same.



Functions

This machine is high-efficiency and high-precision in bending sheet metal. Using different kinds of upper and lower dies can bend all kinds of work-pieces. One slider travel makes a sheet bending and the complicated shape work-piece may be achieved through bending many times.
