• Model NO.：FRTB-SD2
• Labor Needed：1 Worker
• Liner：Packed in Roll
• Capacity：100-200 PCS,Min
• Liner Type：PE, Aluminum Foil, Paper Board, PS Liner
• Transport Package：Wooden Box
• Specification：1600*1000*1500MM
• Trademark：FURI
• Origin：China
• HS Code：8422303090
• Production Capacity：10sets,Month

Basic Info.

Model NO. FRTB-SD2 Labor Needed 1 Worker Liner Packed in Roll Capacity 100-200 PCS/Min Liner Type PE, Aluminum Foil, Paper Board, PS Liner Transport Package Wooden Box Specification 1600*1000*1500MM Trademark FURI Origin China HS Code 8422303090 Production Capacity 10sets/Month

Product Description

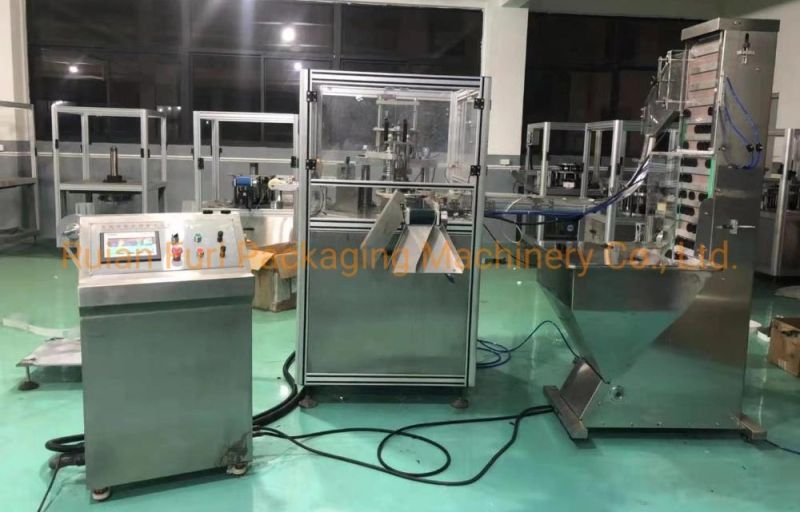

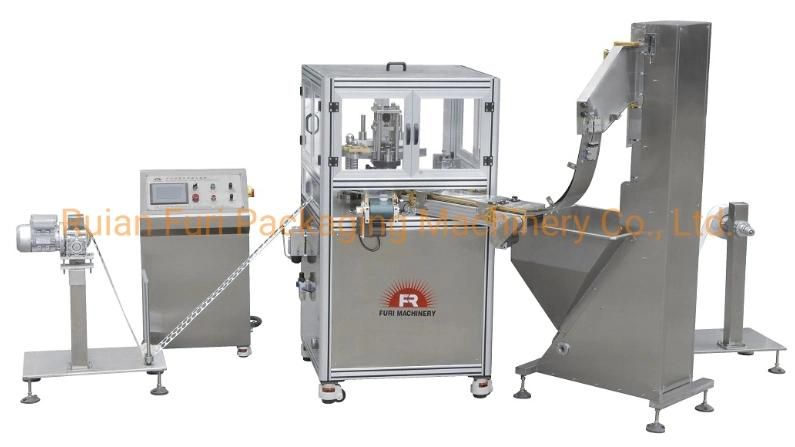

FRTB-SD2 Multifunctional Cap Lining Blanking & Inserting Machine
Liner Cutting  and inserting machine


1. Scope of Application:

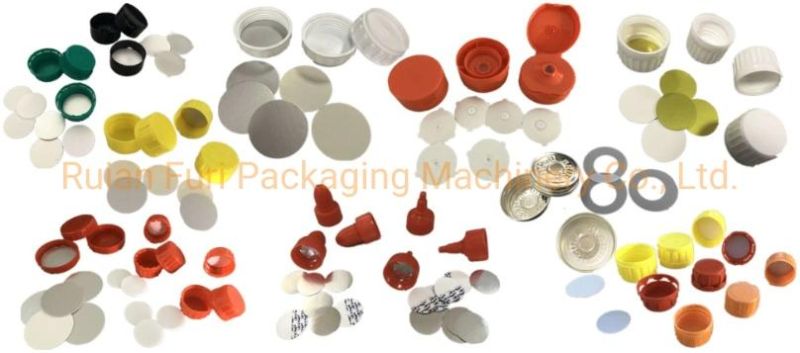

This machine is widely used in the industry of Bottle Cap, Liner, Medicine, Foodstuff, Household Chmeicals, Package, etc. It is an ideal inserting machine.


2. Features:
Cap Lining Machine is for inserting the liner/ wad into the plastic caps. Punching and inserting the liner at the same time
Production Flow Chart: Arrange cap, delivering cap, liner cutting and inserting, delivering cap

1) This machine replaces the handwork. It automatically inserts the liner into the bottle cap, and can raise work efficiency greatly.
2) Reasonable Liner Sealing, Fast speed, High efficiency, Safe and Sanitary product.
3) This machine is specially suitable for the occasion which has strict and severe sanitary requirements. It can avoid secondary pollution on the materials, and thus it can omit the sterilizing technics.
4) Arrange Cap System attaches the function of cap elimination, in order to make sure every finished bottle cap upward.
5) It has automatic counter inside, and can raise the working efficiency afterwards.
6) The materials of liner is roll, and the cutting and inserting are in process at one time, which can raise the working efficiency.
7) It adopts mechanical drive deliver position machanism to make the machine work smoothly. It is suitable for various kinds of bottle caps and aluminum foil or PE foam.

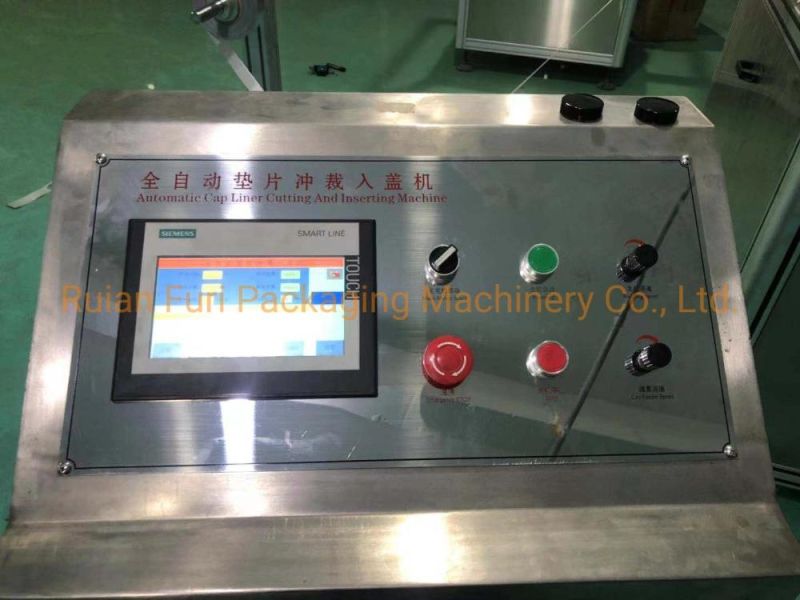

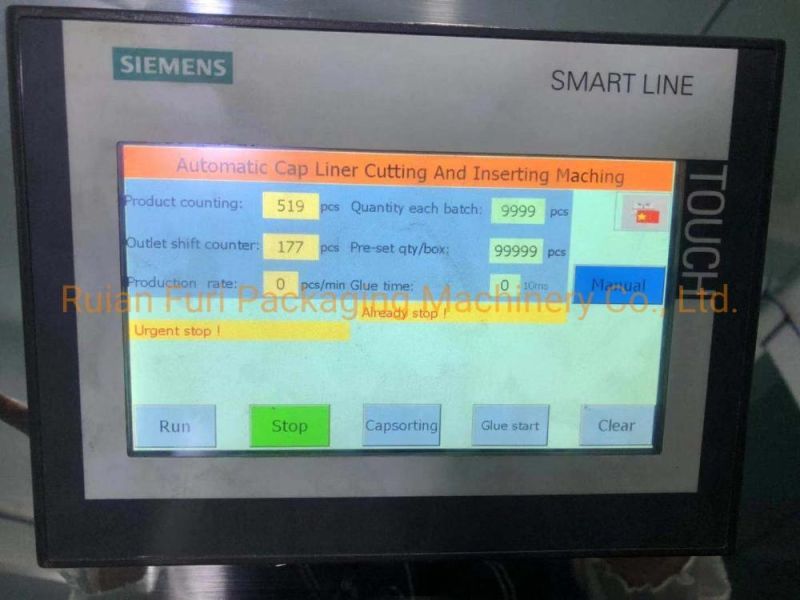

8) It adopts PLC controller, and has the alarm while out of liner and bottle cap. The electric control system adopts frequency conversion techniques. It has the advantages of free setting, wide pplication, easy operation, stable working, convenient cleaning and maintenance, durable in use, etc.
9) Our fully automatic packing machine is in strict accordance with National GMP Standard and process requirements.

3. Structure of equipment:

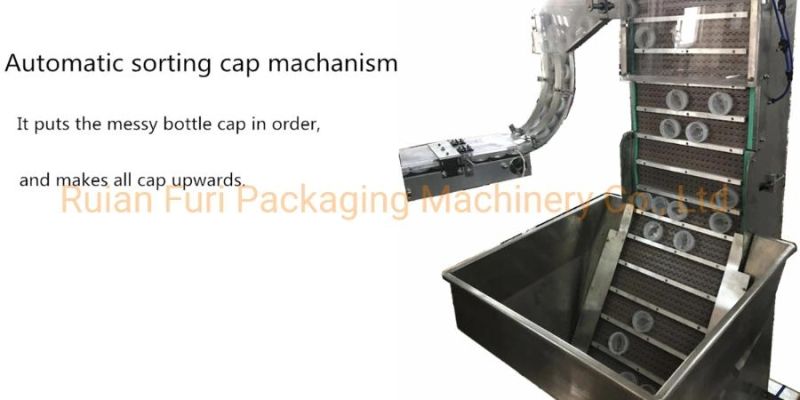

1) Automatic cap sorting machanism: It puts the messy bottle caps in order, and makes all caps upwards.
2) Bottle cap delivering machanism: It delivers the ready bottle cap into the liner inserting machanism in order and correct way.
3) Liner cutting machanism: It puts the roll stock liner into cutting.

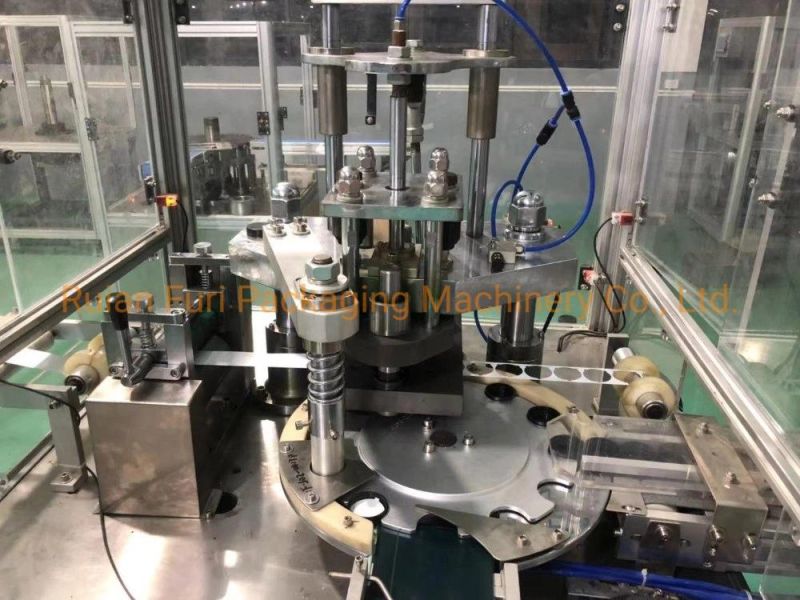

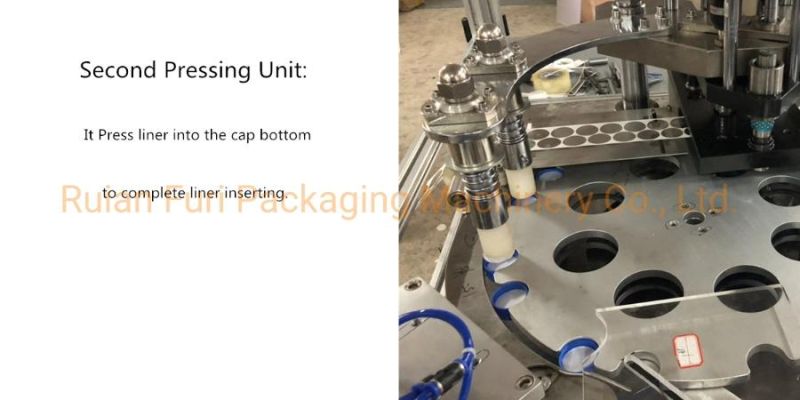

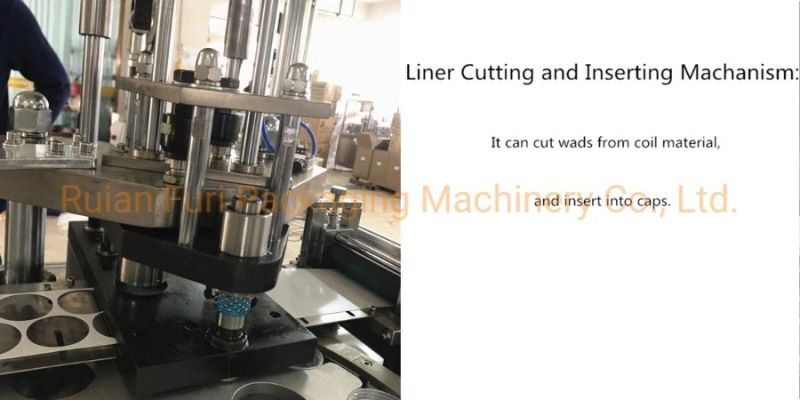

4) Liner inserting machanism: It inserts the liner to the cap to finish liner inserting procedure.




4. Technical Parameters:

Cap  Specification	Productivity	Voltage	Power	Dimension  L× W× H	N. W.
20-40/40-80mm	160-200bottles/min.	380  V	4  KW	2000× 1000× 1500(mm)	600KGS

OUR COMPANY


MACHINE PACKAGING


More Details , Kindly contact us.

Attn:Becky Pan

Location: (Zhixin Industrial Zone)C-13-12, No.66, Tingchao Rd., Shangwang Street, Ruian, Wenzhou, Zhejiang, China

By Flight:    Arrive at Wenzhou Airport
By Train:   Arrive at Ruian Station

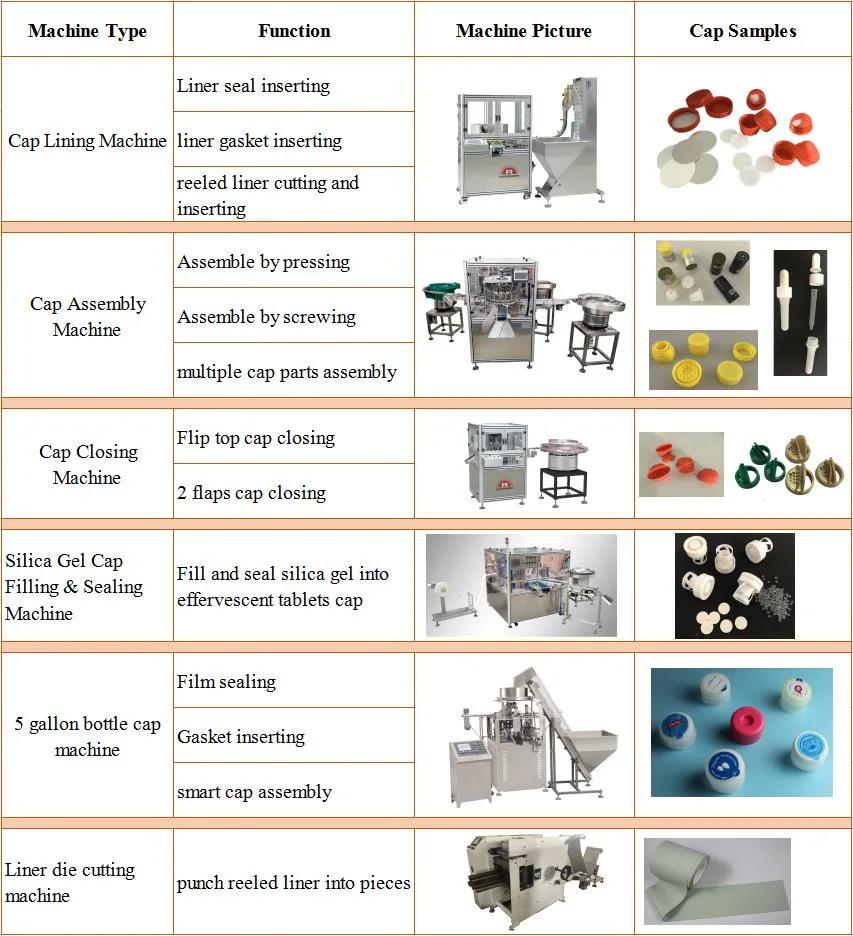

We customize all kinds of non-standard bottle cap processing auto solutions.
