• Model NO.：GM-SB-50NCBA
• Type：Pipe and Tube Bending Machine
• Certificate：ISO9001: 2000
• Applicable Material：S. S, M. S., Copper, Aluminium, Alloy, Galvanized
• Applicable Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Bending Drive：Hydraulic
• Technical：Cold Bend
• Transport Package：Iron Frame,Wooden Case
• Specification：CE
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-50NCBA Type Pipe and Tube Bending Machine Certificate ISO9001: 2000 Applicable Material S. S, M. S., Copper, Aluminium, Alloy, Galvanized Applicable Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Bending Drive Hydraulic Technical Cold Bend Transport Package Iron Frame/Wooden Case Specification CE Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

Machine Characteristics

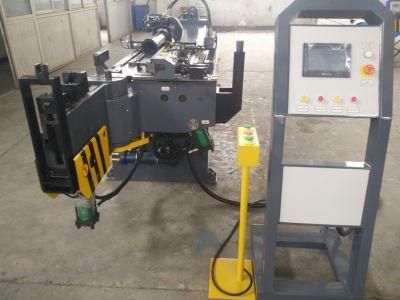

GM-SB-50NCBA series single-head bending machine, importing advanced design technology from Italy, is a kind of automatic three-dimensional pipe bending machine, integrated with machine lathe, hydraulic, and electricity. Various data and orders can be input and stored in advanced imported touch screen, which can automatically rotate the angle in three dimension continuously, besides, manual material feeding meets the requirement for processing precision of complicated work pieces all make NCBA series a professional and high speed European pipe bending equipment.
Main Technical Parameter

Name	Unit	Parameter
Max. Bending Capacity	mm	¢50*2
Bending Radius Range	mm	20-250
Max. Bending Angle	°	190°
Though Effective Distance	mm	2300
Bending speed	°/sec	45
Turning speed	°/sec	200
Bending precision	°	±0.10
Turning precision	°	±0.10
Rotating Servomotor Power	KW	0.75
System Motor Power	KW	5.5
Oil Pump Delivery Volume	L	17
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	4000*800*1300
Weight	T	2.5

 Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Siemens or Suzhou Runmaili
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Suzhou Boguan
Cylinder	Shanghai Qifan
Oil tube	Suzhou Kejia
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Wenzhou Changxing
Contactor	German SCHNEIDER(Imported)
Other Electric Parts	German SCHNEIDER,Omron, Taiwan SHILIN(Imported)

FAQ

1. Q: Are you a manufacturer or trading company?

A: We are a manufacturer.We are focusing on metal pipe/tube processing machinery.

2. Q: How to choose the pipe/tube bending machines?

A: You have to inform us following details:

- Max. outside diameter

- Wall thickness range

- Bending radius (CLR)

- The pipe material

- The drawings if possible

3. Q: What certificate do you have?

A: We have both ISO and CE certificate.

4. Q: Where is your factory located?

A: Our factory is located in Zhangjiagang City, Jiangsu Province, about 2 hours to Shanghai by car. You can fly to

Shanghai Hongqiao or Pudong airport directly.Or we are about 1 hour to wuxi city by car. You can take fast train to

Wuxi railway station.
