• Model NO.：GM-SB-76NCBA
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-SB-76NCBA
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-76NCBA Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-SB-76NCBA Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

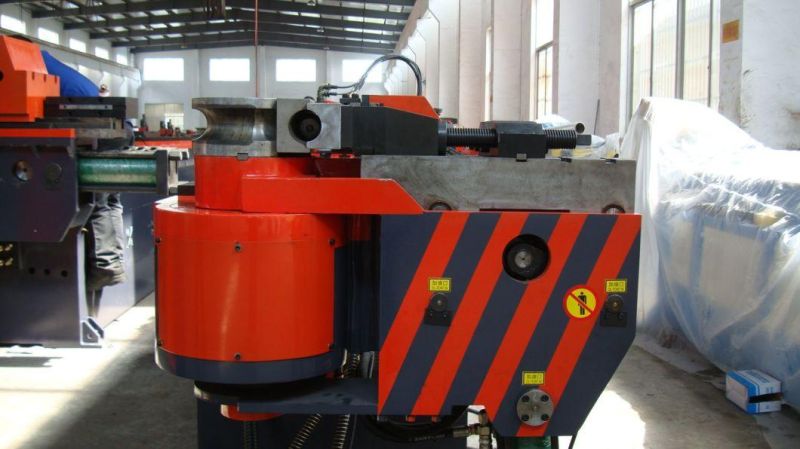

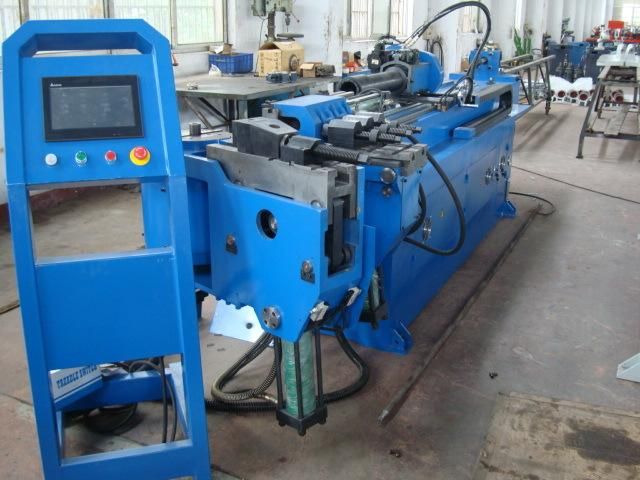

GM-SB-76NCBA automatically bend in the same machine suitable for continuous automatic workpiece complete different direction, a number of different angles of three-dimensional workpieces, using the touch-screen machine operators and industrial computer control procedures, is an efficient, economical automatic pipe bender.

1. Construction Machine
Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete.
2. Major performances
Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation. Each action of machine is controlled by PLC programme control system.

3. The technical parameters
Name Unit GM-76NCBA
Max. Bending Capacity mm 76*4
Bending Radius Region mm 30-350
Bending Angle Region ° 0- 190
Max. Through Effective Distance mm 2500
Bending Precision ° ± 0.10
Bending Speed ° /sec 30
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed ° /sec 160
Motor Power of Oil Pump System KW 7.5
Max. Pressure Kgh/cm2 16
General Length*Width*Height mm 5000*1200*1350
General Weight T 3.5

4. Configuration
A) linear guide way, made in Taiwan ABBA
Hydraulic system, have adopted a combination of import items
Fuzhou, Taiwan's sole hydraulic motor-source
Hydraulic Pump, made in Taiwan
Hydraulic Elements, made in Taiwan
Oil way board, made in Taiwan
Cylinder, made in Shanghai
Double-layer laminated steel tubing used legitimately imported Taiwan Datong

B) Electronic parts
Touch screen made in Taiwan
PLC made in Taiwan
Servo motor made in Taiwan
Other Electronic, made in Taiwan
