• Model NO.：GM-50B
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：Gm-50B
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-50B Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification Gm-50B Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

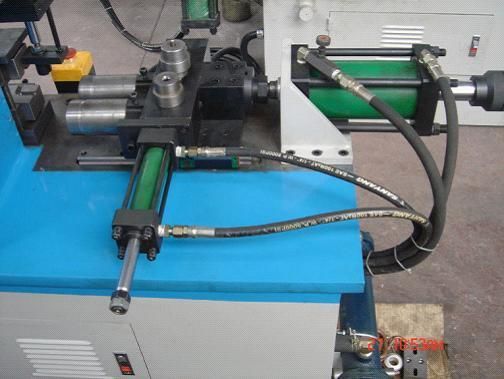

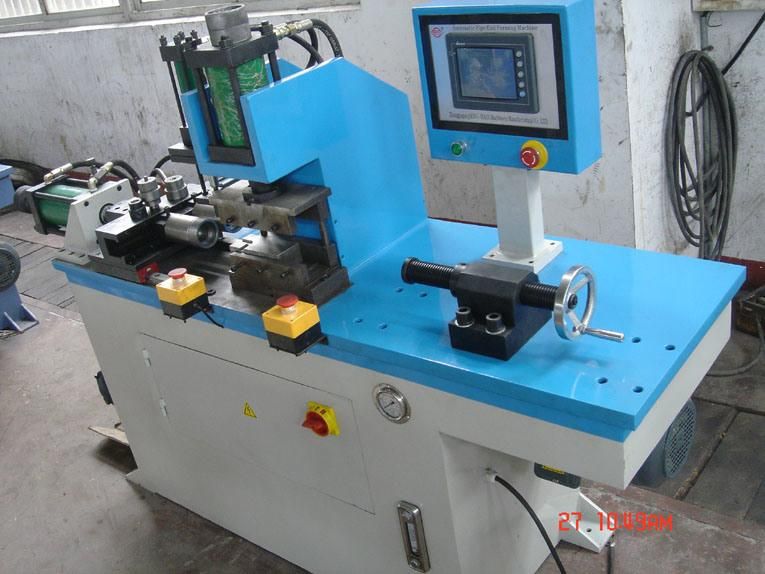

GM-50 Taper End Forming Machine is a kind of high efficiency, full-auto machine. It is controlled by oil and electricity at the same time. It adopts cold forging method to reduce or extend pipe into cylinder or cone pipe. With die concerned, it can process different shapes and sizes fittings. The fittings are bright, smooth, and with high hardness.

Configuration
Hydraulic systems are imported
Hydraulic motor: Made in Taiwan
Hydraulic pump: Made in Taiwan
Hydraulic valve: Made in Taiwan
Oil way board: Made in Taiwan
Oil cylinder: Made in Taiwan
Double-layer laminated steel tubing used legitimately imported Taiwan

B) Electronic parts
Button Switch: Made in Taiwan
Photoelectric switches and Electrical: Made in Taiwan
PLC: Made in Taiwan

Name	Unit	GM-50
Max.   Reduction  Capacity	Mm	50*2
Max.   Reduction  Length	Mm	120
Reduction  time	S	10-14
Oil  pump	L	16
Oil  tank  capacity	L	90
Motor  Power	Kw	4.0
The  length  of  the  machine	mm	2000
The  width  of  the  machine	mm	600
The  height  of  the  machine	mm	1500
The  weight  of  the  machine	kg	1300
