• Model NO.：W11SNC-16x3000
• Type：Roller-Bending Machine
• Pressure Under Up-roller：160T
• Max Bending Thickness：16mm
• Max Width of Plate：3000mm
• Weight of Machine：11T
• Transport Package：Steel Pallet
• Specification：15kW
• Trademark：Dalian ZT Machinery
• Origin：China
• HS Code：846229
• Production Capacity：1000 Sets,Year

Basic Info.

Model NO. W11SNC-16x3000 Type Roller-Bending Machine Pressure Under Up-roller 160T Max Bending Thickness 16mm Max Width of Plate 3000mm Weight of Machine 11T Transport Package Steel Pallet Specification 15kW Trademark Dalian ZT Machinery Origin China HS Code 846229 Production Capacity 1000 Sets/Year

Product Description

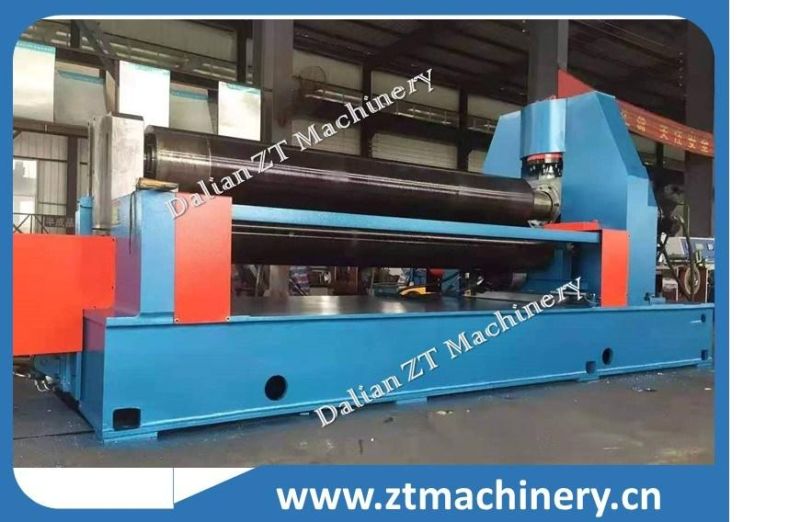

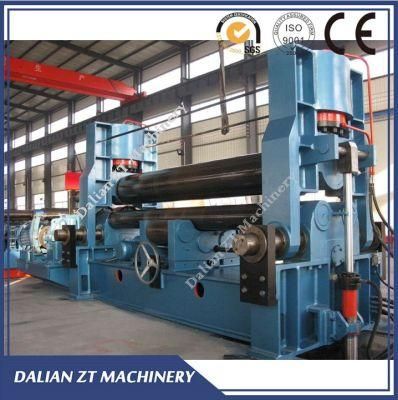

Main structureThe major structure of the device composed of up-roller part, bottom roller part, up roller horizontal movement part, support roller part, main drive part, tipping part, base board, balance part and so on.

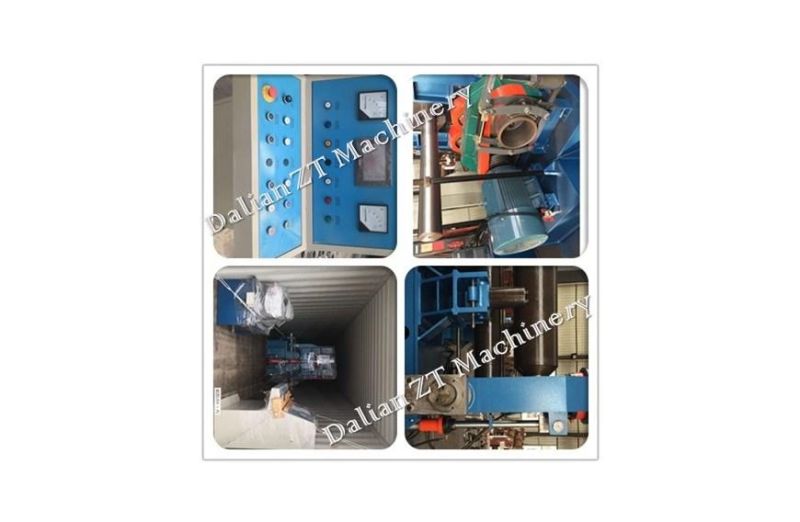

 NC systemThe NC system adopts revolve sensor, equip high reliability industry controller, composed to one reliable, real-time control system. The NC system with some functions like as real-time keep watch on bending process, data transfer, interrupt remember and so on, man-machine interface English & Chinese display.







Model	Unit	W11S-16×3000
Pressure under up-roller	T	160
The yielding limit	Mpa	σs≤ 245
Max pre-bending thickness	mm	12
Max bending thickness	mm	16
Max width of plate	mm	3000
Working length of rollers	mm	3050
The min diameter at full load (pre-bending)	mm	T12×B3000×Φmin700
The min diameter at full load (non bending)	mm	T16×B3000×Φmin700
The straight edges	mm	≤2.5×plate thickness
The diameter of up-roller	mm	Φ332
The diameter of down-roller	mm	Φ180
The distance of two bottom rollers	mm	300
Support rollers	mm	1group×4
Up roller lift speed	mm/min	120
Rolling speed	m/min	4.5
Main motor power	KW	15
Hydraulic motor power	KW	7.5
Move motor power	KW	2.2
Size	mm	5500*1600*1900
Weight	T	11.0
