• Model NO.：JYB-16
• Suitable for：Alloy
• Type：Air
• Transport Package：Woodencase Carton
• Trademark：DELELIFT
• Origin：Hangzhou China
• Production Capacity：100,Year

Basic Info.

Model NO. JYB-16 Suitable for Alloy Type Air Transport Package Woodencase Carton Trademark DELELIFT Origin Hangzhou China Production Capacity 100/Year

Product Description

Product Description
1.SUPPORT FREE TECHNOLOGY ,IF NEED GO YOU SIDE TEACH MAKE CHAIN ,NEED GIVE TICKET ,HOTEL FOOD AND EVERY DAY USD300/DAY CHARGE .
2.GUARANTEE 1 YEAR (IN 1 YEAR FACTORY MAKE THE SPARE PART FREE THE CHANGE,JUST PAY COURIER
3.EACH MACHINE GIVE 2 DIES FREE.

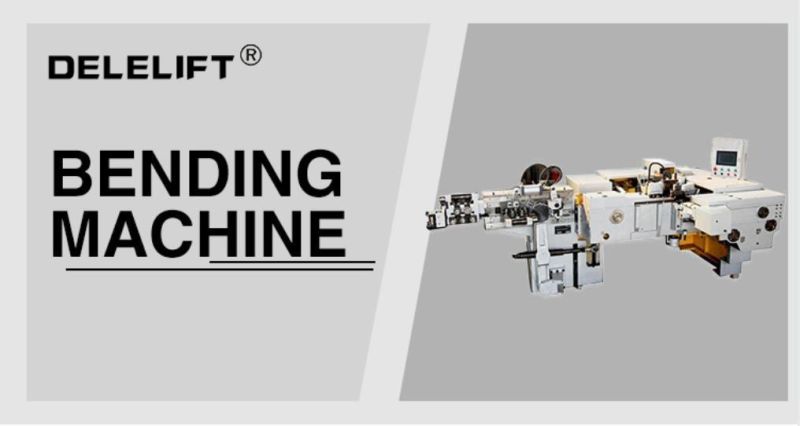

Iron chain machine
we was founded in 2000.We focus on high-quality chain machine .Our products quality and sales are way ahead of other manufacturers.also every year we have a large number of products are sold to many countries around the world,including south korea,italy,germany, turkey,usa india and other countries.All our products have been widely acclaimed in the golbal scope. Our products cover the 3mm to 22mm full automatic chain bending machine ,chain welding machine.and full automatic chain test machine.we have 14 types of products.Advanced manufacturing technology and philosophy as well as dozens of patents is our best guarantee of product quality in particular.we made a major breakthrough in chain welding.we are the first company using intermediate frequency DC welding in chain welding in the world. This technology completely changed the technical bottleneck of resistance welding .Resistance automatic welding .first can realize above 13mm.this technology greatly enhance the chain welding
efficiency.also reduce the welding energy use .greatly reducing the grid pollution on the public power.with this technology our customers can product large 12mm to 22mm without increasting the power transformer capacity. We have always been adhering to achieve maximum customer value.we will provide you the perfect pre-sale,sale after sale service.we can purchase a full set of chain manufacturing machines for our customers and to provide.
The auto chain welding machine technical parameters

Type DLB-5 DLB-7 DLB-11 DLB-16 DLB-18 DLB-22 Diameter Φ2-Φ5 Φ4-Φ7 Φ6-Φ11 Φ10-Φ16 Φ12-Φ19 Φ16-Φ22 Recommend Φ2-Φ4 Φ4-Φ6 Φ7-Φ10 Φ10-Φ14 Φ14-Φ18 Φ18-Φ22 Pitch 9-32(mm) 12-42(mm) 18-65(mm) 33-80(mm) 36- 108(mm ) 51-130(mm) Efficiency 70-140ring/min 35- 80ring/min 35-50ring/min 20- 40ring/min 20- 35ring/min 15 -25ring/min Total power 1.8KW 4.5KW 8KW 19KW 22.5KW 30.5KW Motor rating [380V 50-60HZ) 1.5KW 4KW 7.5KW 18.5KW 22KW 30KW Reted speed 1450rpm 1450rpm 960rpm 960rpm 960rpm 960rpm Conrtoller PLC(Siemens) PLC(Siemens) PLC(Siemens) PLC(Siemens) PLC(Siemens) PLC(Siemens) Air pressure ≥0.65(Mpa) ≥0.65(Mpa) ≥0.65(Mpa) ≥0.65(Mpa) ≥0.65(Mpa) ≥0.65(Mpa) Air consumption 1.5L/ring 1.8L/ring 2. 25L/ring 3L/ring 3.5L/ring 3.5L/ring Size 2090*1190*1000 2600*1350*1600 3700*2100*1800 4500*2400*1800 4800*2940*2100 5000*3000*2100 Weight ≈0.95T ≈1.7T ≈4.2T ≈6.8T ≈8.8T ≈11.4T

Certifications

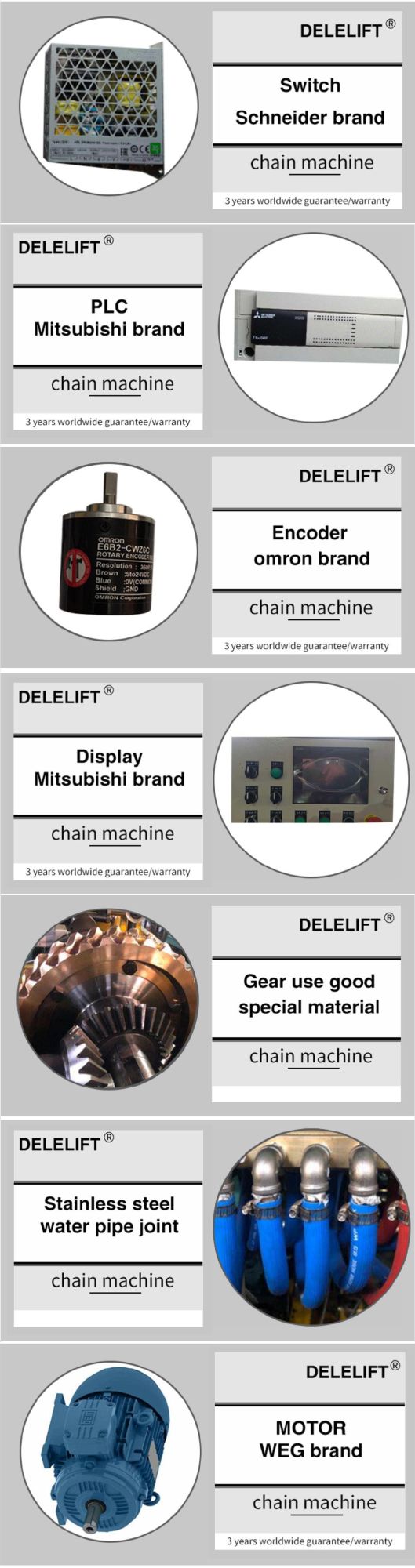

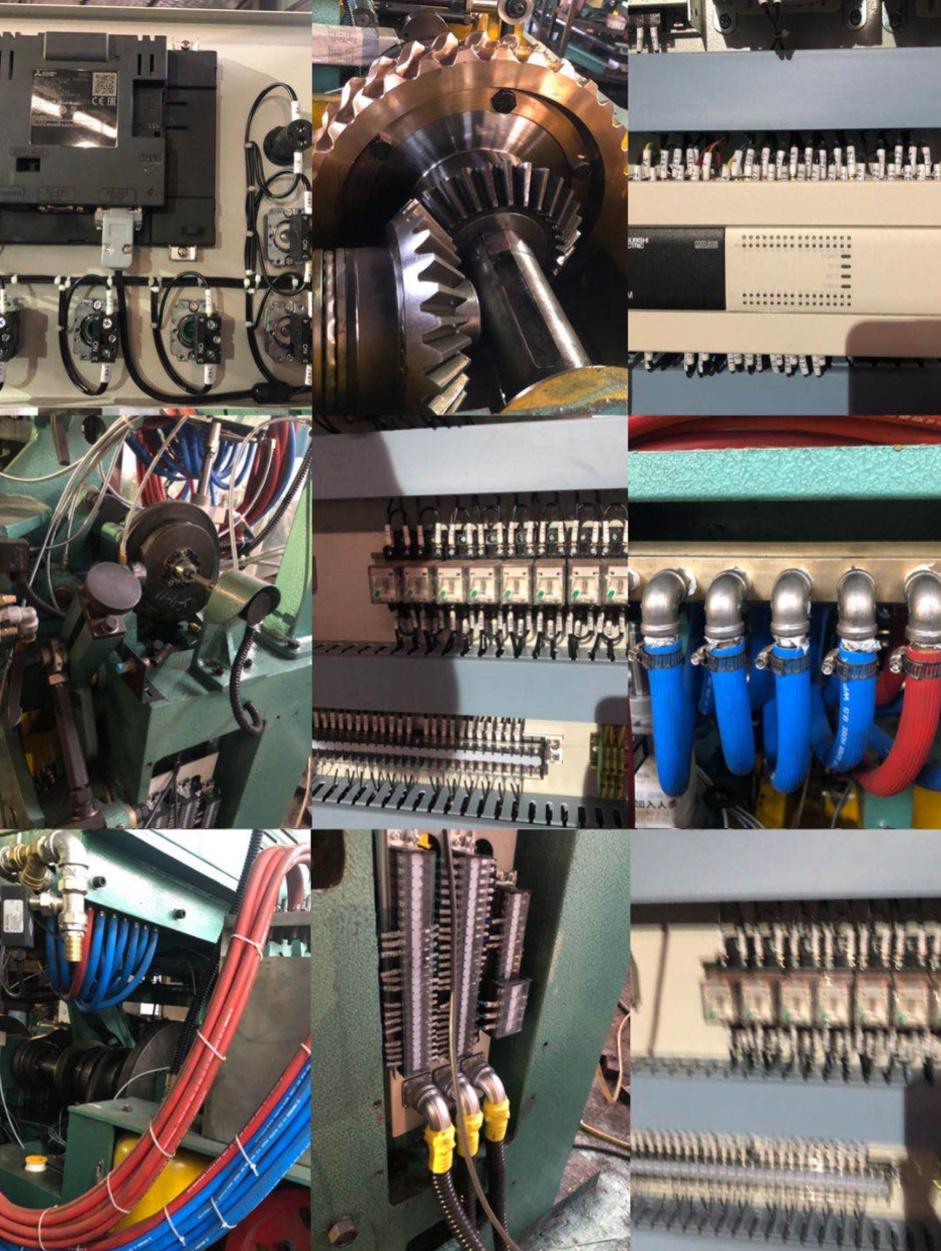

Details Images

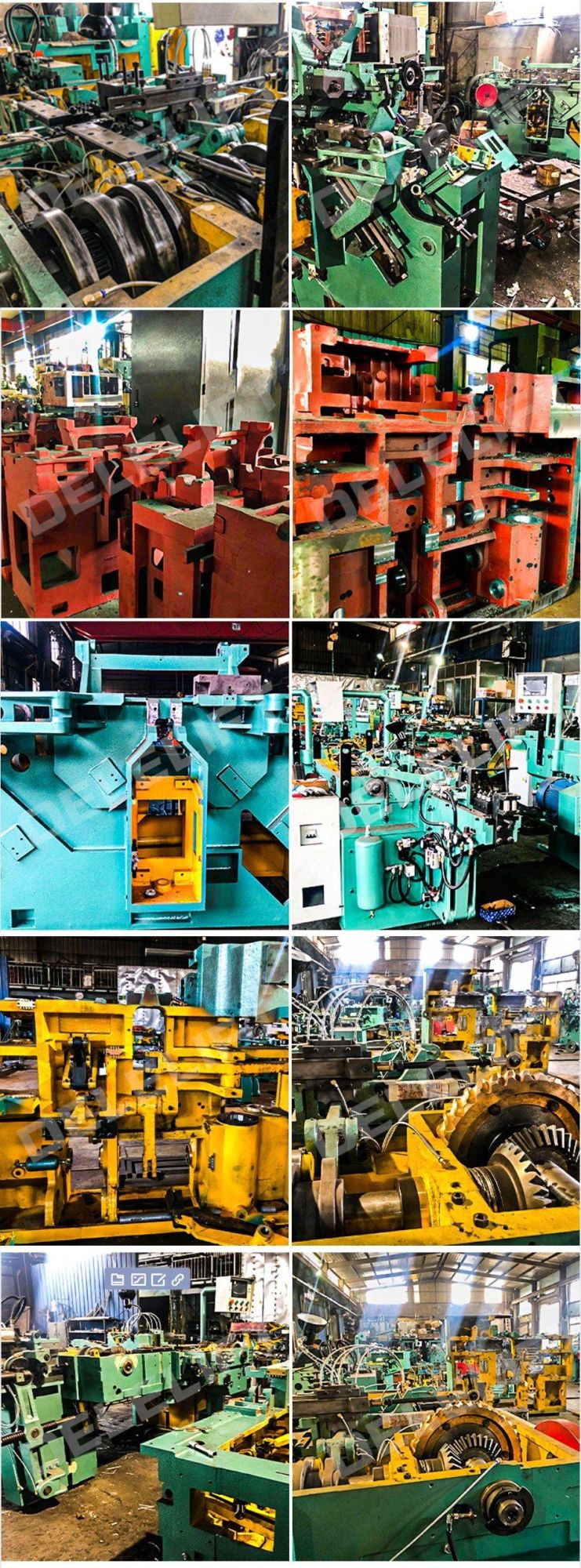

Manufacture

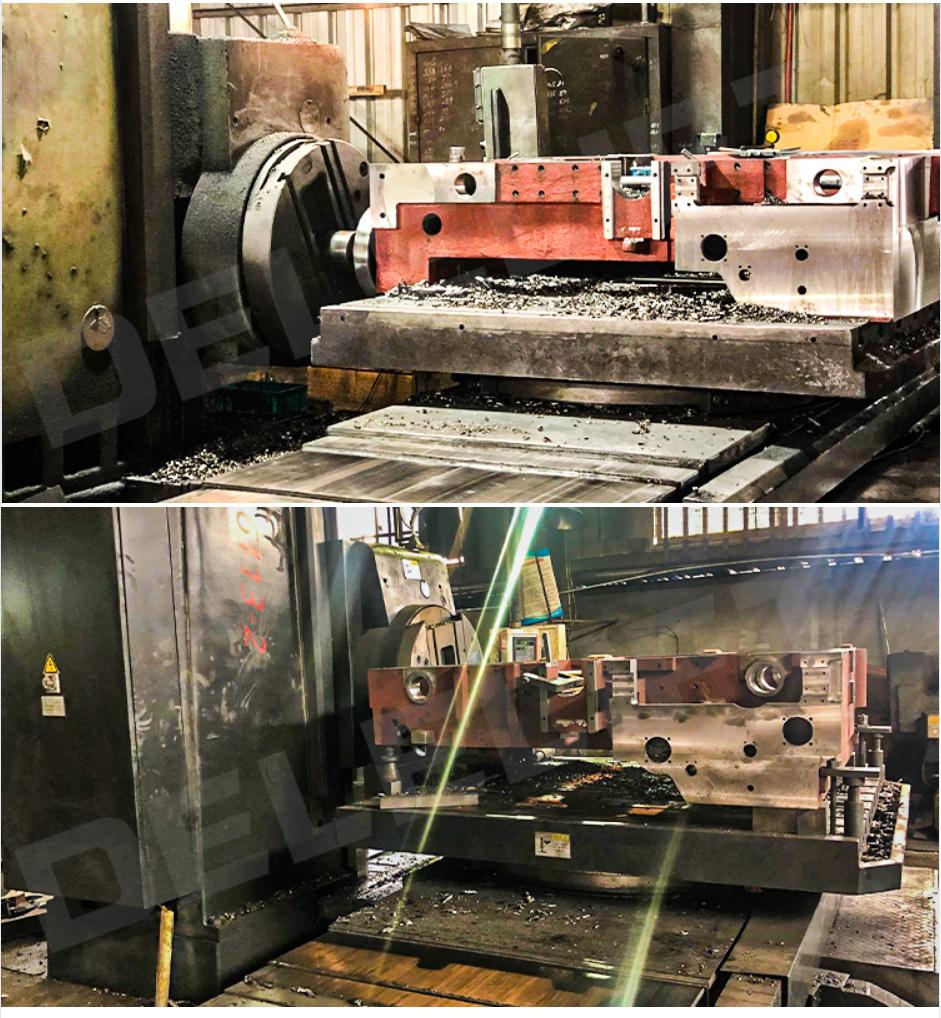

Semi-manufactured

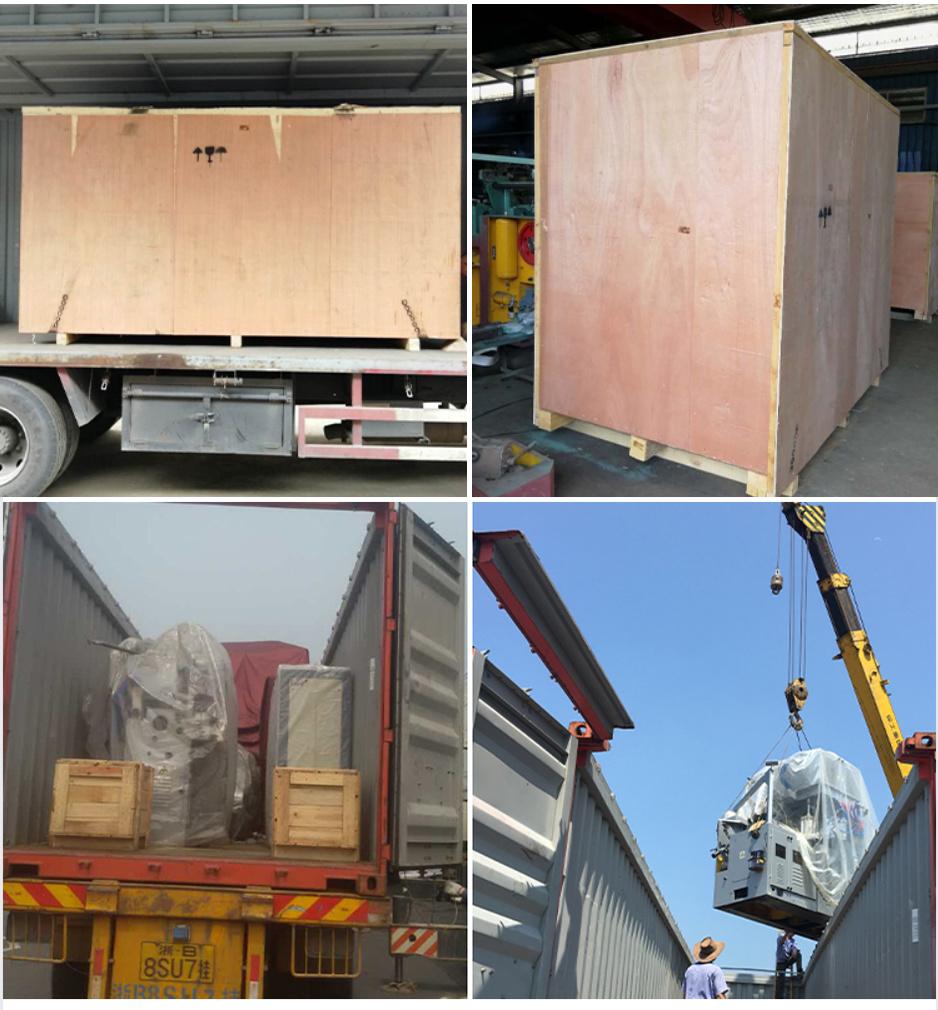

Packing and delivery
Our Service
