Hydraulic Double Head Pipe/Tube Bending Machine Double Head Pipe /Tube Bender
Zhangjiagang Saint Machinery Co., Ltd.- Waterproof Rating：IPX-8
- Warranty：1-year
- Condition：New
- Certification：RoHS, ISO 9001:2000, ISO 9001:2008, CE, UL
- Automation：Automatic
- Suitable for：Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：SDB-38H
- Type：Pipe and Tube Bending Machine
- Bend Tube：Double Axis Bender
- Bending：Hydraulic
- Control：Nc
- Cooling System：Water Cooling
- Transport Package：Plywood Case
- Specification：LWH: 2600× 950× 1600mm, GW: 1450kg
- Trademark：STM
- Origin：China
- HS Code：8462219000
- Production Capacity：500
Description
Basic Info.
Model NO. SDB-38H Type Pipe and Tube Bending Machine Bend Tube Double Axis Bender Bending Hydraulic Control Nc Cooling System Water Cooling Transport Package Plywood Case Specification LWH: 2600× 950× 1600mm, GW: 1450kg Trademark STM Origin China HS Code 8462219000 Production Capacity 500Product Description

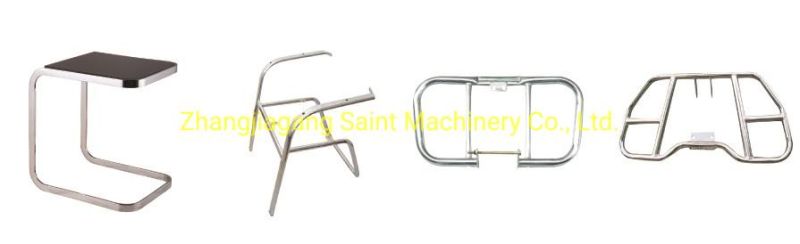

1. Microcomputer control, convenient operation and flexible settings2. High efficiency: the two bending arms bend pipe at the same time, suitable for symmetric bending products
3. Can turn angle of 90-degree to bend pipes with three dimensional shape
4. Hydraulic cooling system to ensure the equipment long-time work stably under the high temperature
Technical Parameters
| Technical parameters | SDB-38H |
| Max bending capability | φ38mm |
| Bending radius | 35~160 mm |
| The centre distance of two arms | 200~1600 mm |
| Bending angle | 0~190° |
| Bending speed | 50°/sec |
| Bending accuracy | ±0.2° |
| Main motor power | 5.5Kw |
| System hydraulic pressure | 12MPa |
| Size | 2600×950×1600mm |
| Weight | 1450kg |
