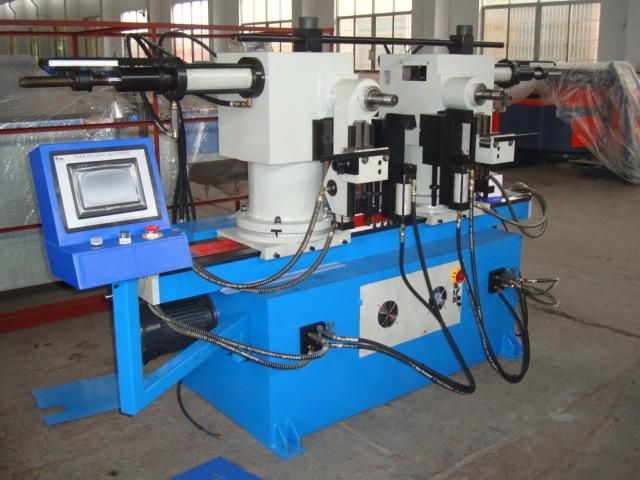

• Model NO.：GM-SB-38B (double head)
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：CE
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-38B (double head) Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification CE Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

1. Characteristics of the machine:
(1)The control system has normal PLC type and contact digital control type.
(2)According to different base frame, it can be divided into standard type and rotary type.
(3)Hand-operated, auto, semi-circulation and other functions can be chosen.
(4)PLC control, imported electric elements. The program can be stored forever, no losing.

(5)Foot switch has auto start, emergency stop, emergency-stop and going on function, it has high safety.
(6)Double head can be used separately.
(7)Three pieces can be bended one times.

3. The main Configuration:
A) Hydraulic systems
Hydraulic motor: Made in Taiwan
Hydraulic Pump, made in Taiwan
Hydraulic Elements, made in Taiwan
Oil way board, made in Taiwan
Cylinder, made in Taiwan
Double-layer laminated steel tubing used legitimately imported Taiwan Datong

B) Electronic parts
Touch screen made in Taiwan
PLC made in Taiwan
Other Electronic, made in Taiwan

Main technical parameters	unit	GM-DB-38B
Max pipe bending capacity	mm	38×2
Bending radius region	mm	38~220
Max bending angle region	°	185°
Centre distance of double head	mm	170-1450
Main motor power	kw	4
Bending speed	°/sec	50
Oil flow productivity of the pump	L	17
Oil system pressure	mpa	14
Clamping traverse	mm	50
Pieces of one time bending	piece	3
Capacity of oil tank	L	120
Machine dimension	mm	2700×900×1350
Machine weight	kg	2200
