• Model NO.：GM-SB-89NCB
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-SB-89NCB
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-89NCB Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-SB-89NCB Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

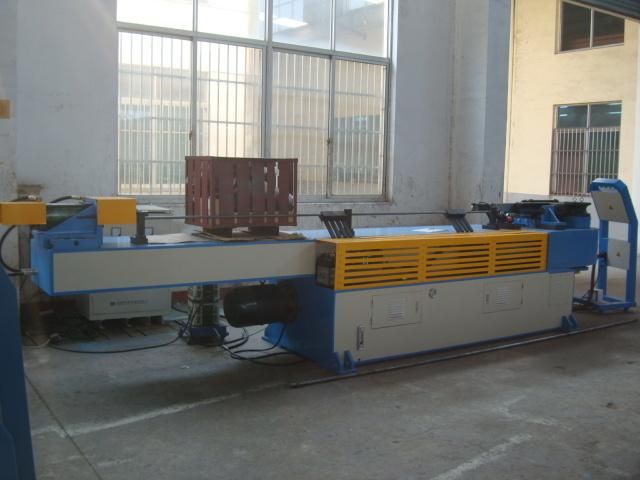

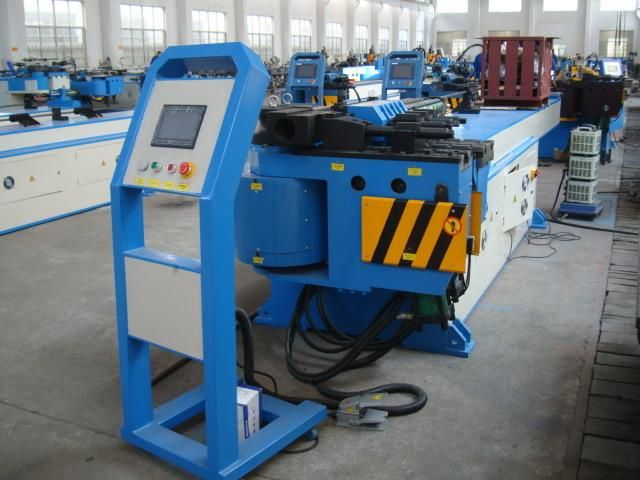

GM-SB-89NCB automatically bend in the same machine suitable for continuous automatic workpiece complete different direction, a number of different angles of three-dimensional workpieces, using the touch-screen machine operators and industrial computer control procedures, is an efficient, economical automatic pipe bender.

1. Construction Machine Body by welding, mechanical parts assembly, import hydraulic system, electronic control of imports of fabric to complete.

2. Major performances Using industrial touch screen, in English mode menu is simple, with high precision, fast, multifunctional and high degree of automation. Each action of machine is controlled by PLC programme control system.

3. The technical parameters
Name Unit GM-SB-89NC
Max. Bending Capacity mm 89*10
Bending Radius Region mm 60-400
Bending Angle Region ° 0- 190
Max. Through Effective Distance mm 2800
Bending Precision ° ± 0.5
Bending Speed ° /sec 18
Turn Pipe Precision ° ± 0.10
Turn Pipe Speed ° /sec 200
Motor Power of Oil Pump System KW 11
Max. Pressure Kgh/cm2 16
General Length*Width*Height mm 6500*1550*1500
General Weight T 5.0

4. Configuration
A) linear guide way, made in Taiwan ABBA Hydraulic system, have adopted a combination of import items Fuzhou, Taiwan's sole hydraulic motor-source Hydraulic Pump, made in Taiwan Hydraulic Elements, made in Taiwan Oil way board, made in Taiwan Cylinder, made in Shanghai
Double-layer laminated steel tubing used legitimately imported Taiwan Datong
B) Electronic parts Touch screen made in Taiwan
PLC made in Taiwan
Servo motor made in Taiwan
Other Electronic, made in Taiwan
