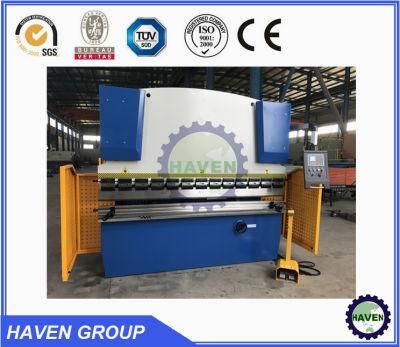

• Model NO.：WC67Y-100x2500
• Force：100t
• Working width (mm)：2500mm
• RAM stroke (mm)：120mm
• Stroke adjustment (mm)：100mm
• Transport Package：Steel Pallet
• Specification：Force 100t, Length 3200mm
• Trademark：HAVEN
• Origin：China
• HS Code：8462
• Production Capacity：50units,Month

Basic Info.

Model NO. WC67Y-100x2500 Force 100t Working width (mm) 2500mm RAM stroke (mm) 120mm Stroke adjustment (mm) 100mm Transport Package Steel Pallet Specification Force 100t, Length 3200mm Trademark HAVEN Origin China HS Code 8462 Production Capacity 50units/Month

Product Description

Standard Facilities:
 1. ESTUN E21 NC control + Frequency inverter
 2.Front support arms
3. Motorized stroke adjustment
4. T slot on both front side and back side of the worktable
5.  OMAGE Hydraulic valve
6.  SUNNY hydraulic pump
7.  Siemens famous brand motor
8.  Siemens or Schneider Electric parts
9.  Machine power is turn-off when the electric cabinet door opened

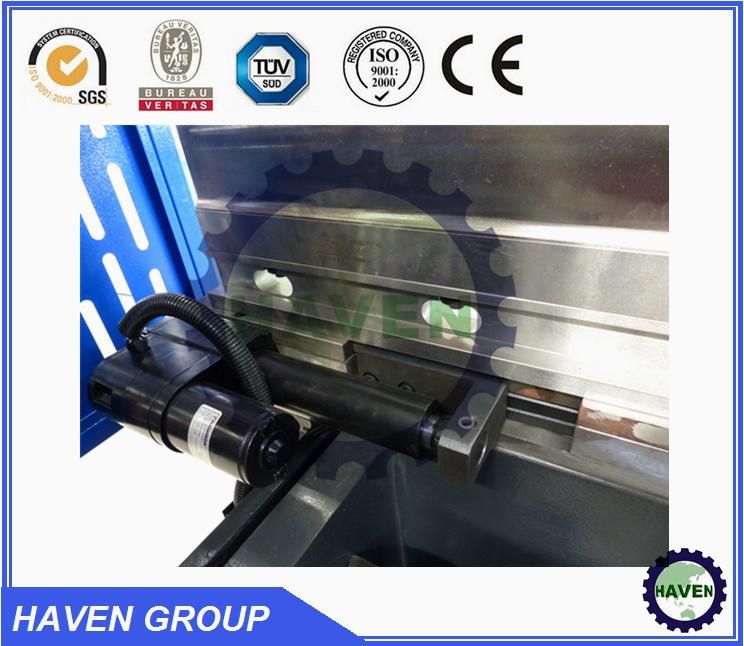

10. Upper clamps with Anti Wedges
11. Hydraulic and Electrical overload protection
12. Side safety guard and Full height back safety guard
13. With standard Top punch and Bottom Die
14. Back gauge beam is made of profile steel and liner guide

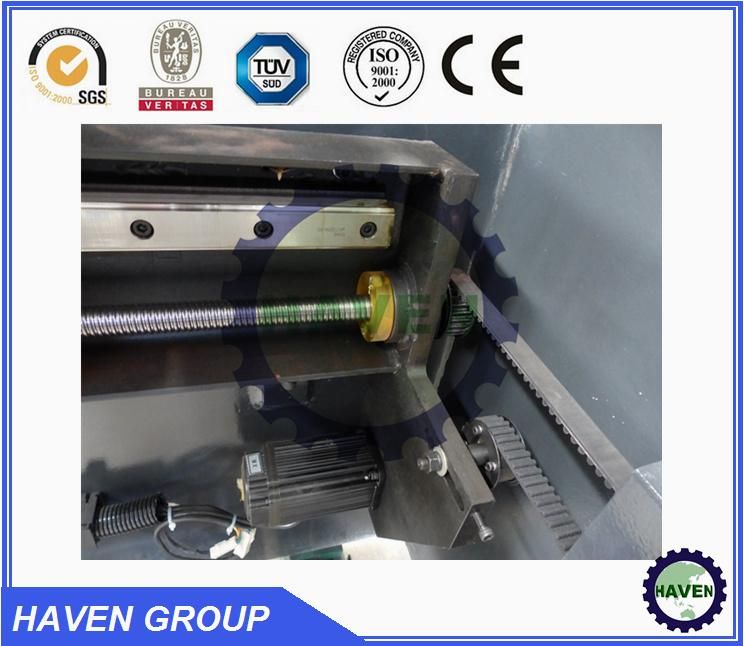

15. Back gauge is supported with ball screw and polished steel round bar with 0,05mm accuracy
2. Estun E21 NC Press Brake Control system:
1. Monochrome LCD Box Panel.
2. Integral factor programmable freely
3. Automatic positioning control
5.Internal time relay
6.Ram stroke counter
3. Our Services
1: Response in time after getting customer's claim
1: Provide solution in 1 day
2: Usually solve problem within 2 days
2. For big machine, Installation Service is available as per customer's requirement
4. Training Service
Our technician is available to your factory and offer training of how to use our machines. As well, you may send your technician to our company to learn how to operate machines.
5. Quality Guarantee
We guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.
We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
6. Main features
1. The whole machine is in sheet plate welded structure, which internal stress eliminated by vibration aging technology, high strength and good rigidity of machine.
2. Double hydraulic oil cylinder is applied for upper transmission, provided with mechanical limit stopper and synchronous torsion bar, stable and reliable operation, as well as high precision.
3. Electrical adjustment and manual fine-tuning adjustment mode are adopted for distance of rear stopper and stroke of gliding block, and fitted with digital display device, easy and quick in use.
4. Upper clamp is fitted with compensation device.
5. Worktable mechanical compensation or hydraulic compensation device is optional.


Specification	40 2000	63 2500	80 2600	80 3200	100 2500	100 3200	125 3200	125 4000	160 3200	200 3200	250 3200	300 3200	350 3200
Nominal pressure (KN)	400	630	800	800	100	1000	1250	1250	1600	2000	2500	3000	3500
Working width (mm)	2000	2500	2600	3200	2500	3200	3200	4000	3200	3200	3200	3200	3200
Ram stroke (mm)	100	100	100	100	120	120	120	120	200	200	200	250	250
Stroke adjustment (mm)	80	80	80	80	100	100	100	100	160	160	160	300	300
Max. Stroke number (/min)	11	10	8	8	8	8	8	8	8	7	7	6	6
Motor power (k w)	3	5.5	7.5	7.5	7.5	7.5	7.5	11	11	15	20	22	22
Net weight ( t ) ( about)	2.6	4.5	5.5	6.5	6.9	8.2	8.7	9.2	10.5	13.5	15.5	21	23
