• Model NO.：GM-SB-18CNC
• Type：Pipe and Tube Bending Machine
• Bending Theory：Cold Bending
• Applicable Pipe Shape：Round, Rectangle, Square, Oval, Solid Bar, Profile
• Cooling System：Water Cooling,Fan Cooling
• Transport Package：Iron Frame
• Specification：GM-18CNC
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS

Basic Info.

Model NO. GM-SB-18CNC Type Pipe and Tube Bending Machine Bending Theory Cold Bending Applicable Pipe Shape Round, Rectangle, Square, Oval, Solid Bar, Profile Cooling System Water Cooling/Fan Cooling Transport Package Iron Frame Specification GM-18CNC Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS

Product Description

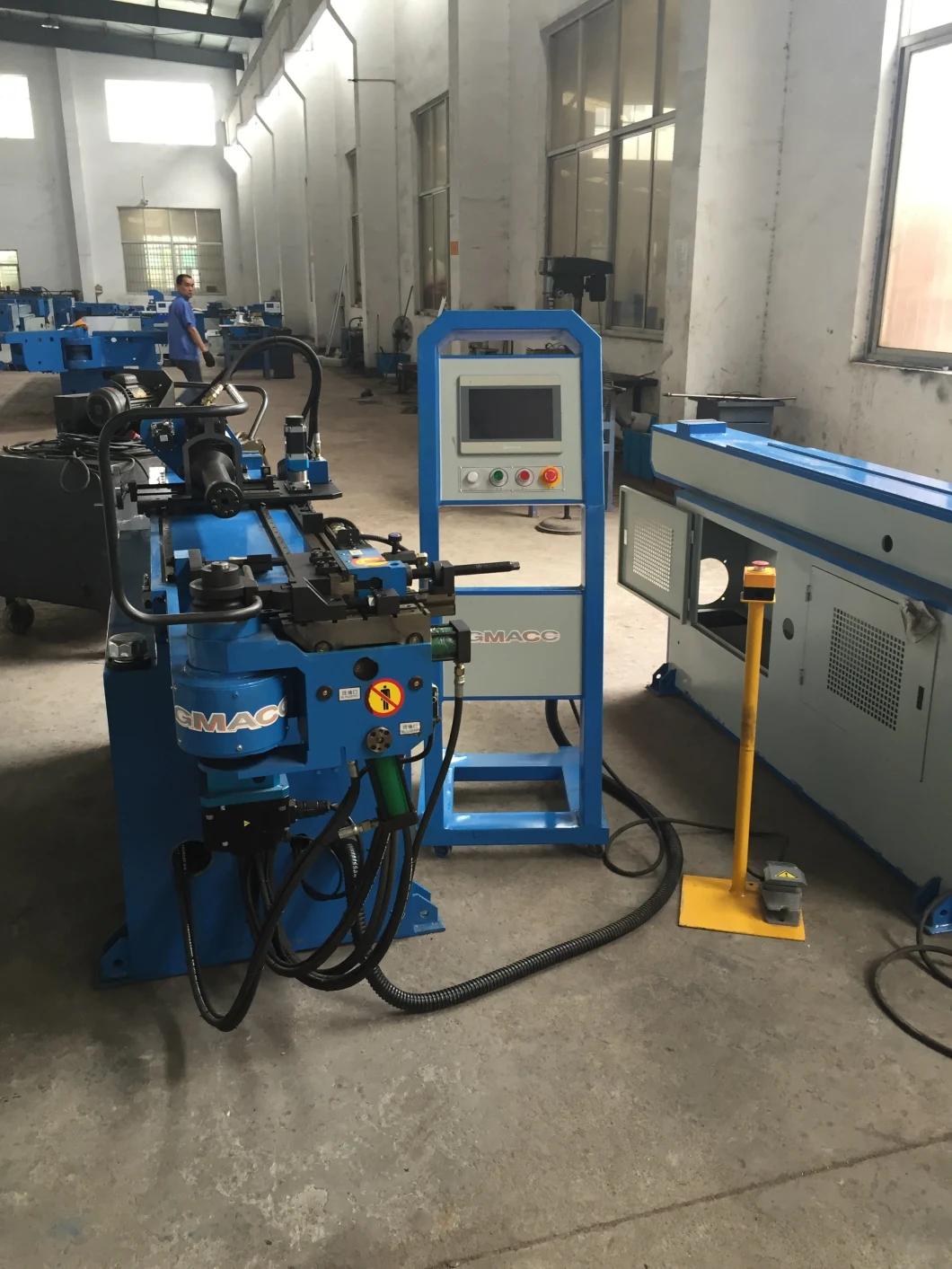

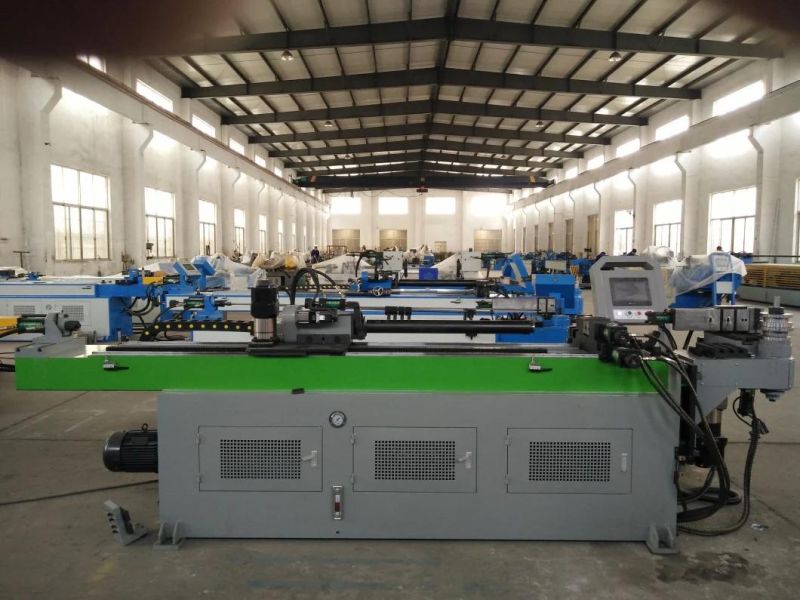

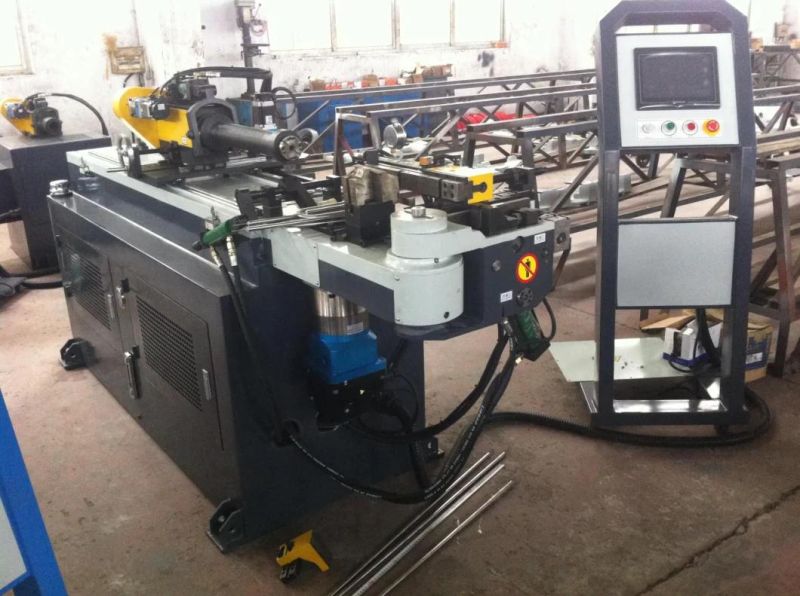

GM-SB-18CNC Full-Auto Numerical Control
Single-Head Bending Machine Model:18×3A×1S
Machine Characteristics
GM-SB-18CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order,Y, B, C three coordinates of motions under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Pipe bending(C axis), pipe rotating (B axis), and pipe feeding(Y axis) are all drove by closed ring servomotor. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.

Name	Unit	Parameter
Max. Bending Capacity	mm	¢18*2
Bending Radius Range	mm	20-150
Max. Bending Angle	°	190
Bending Speed	°/sec	240
Turning Speed	°/sec	300
Feeding Speed	mm/sec	1000
Bending Precision	°	±0.10
Turning Precision	°	±0.10
Feeding Precision	mm	±0.10
Turning Servomotor Power	kW	0.4
Feeding Servomotor Power	kW	0.4
Though Effective Distance	mm	1500
System Motor Power	kW	2.2
Max. Pressure	Mpa	16
Oil Pump Delivery Volume	L	25
L*W*H (Packaging Dimension)	mm	3000*750*1300
Weight	T	about 1.3

Configuration of Hydraulic and Electronic Control System

Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Servo Motor	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Contactor	SCHNEIDER
Transformer	Wuxi Xinyu








 Tooling Samples


        Bending Die                                Clamp Die                                        Pressure Di





           Mandrel                                          Wiper Die(optional)

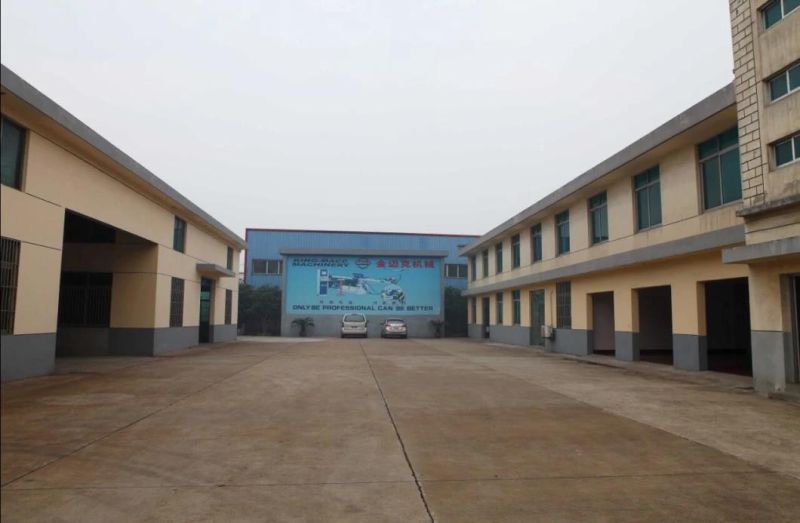

                                                            Company Photos
