Hydraulic Guillotine Shearing Plat Ecutting Machines
Anhui ZhongDe Machine Tool Co., Ltd.- Condition:New
- Certification:ISO 9001:2008, CE
- Automation:Automatic
- Suitable for:Aluminum, Carbon Steel, Stainless Steel
- Voltage:380V 50Hz 3phase
- Color:Customised
Base Info
- Model NO.:QC11Y-12*3200
- Control Axis:2
- Power Type:Hydraulic
- Main Motor:Siemens Brand
- Transport Package:Base Framed by Channel Steel and Plastic Bag
- Specification:1 Unit
- Trademark:ZDMT
- Origin:China
- HS Code:84623990
- Production Capacity:100units,Month
Description
Basic Info.
Model NO. QC11Y-12*3200 Control Axis 2 Power Type Hydraulic Main Motor Siemens Brand Transport Package Base Framed by Channel Steel and Plastic Bag Specification 1 Unit Trademark ZDMT Origin China HS Code 84623990 Production Capacity 100units/MonthProduct Description

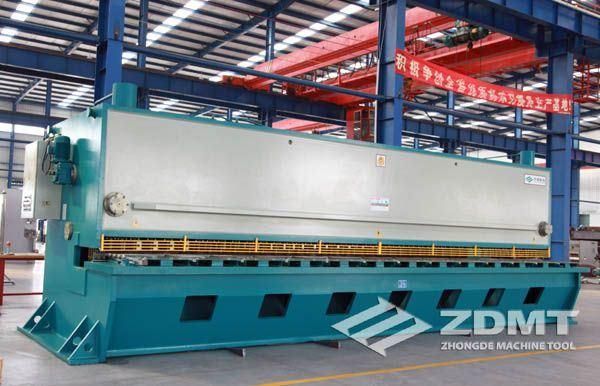

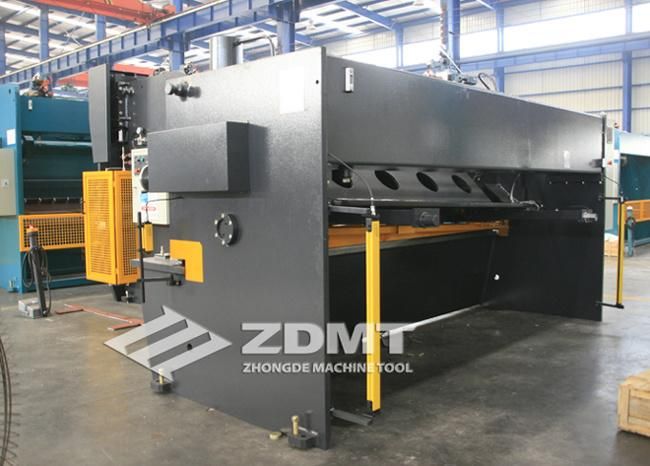

QC11K-12×3200 hydraulic guillotine shearing machines with CNC E200SISO9001: 2008 CE

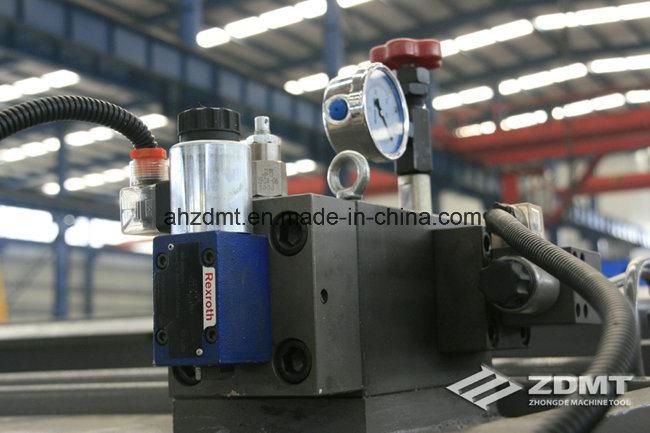

1. The machine employs hydraulically-driven swing beam, the steel plate welded structure, and accumulator -based pullback cylinder with steady and reliable operation.
2. Stepless control for the stroke; The gap between up blade and down blade is manually adjusted by handle for high uniformity; Protection fence and the electric interlock to ensure the operation safety.
3. The closed loop control system that consists of CNC system and position coder features fast response speed, high precision, and exceptional stability and can ensure the accuracy of displacement of back gauge. Moreover, CNC system has the accessory functions of compensation and automatic check.
Model | Stroke Number(times/min) | Taavel of Backguge(mm) | Rake Angle(°) | Throat Depth(mm) | Main Motor(kw) | Weight(kg) | Overall Dimensions(L×W×H)(mm) |
QC11K-6×2500 | 10-25 | 20-600 | 0.5-1.5 | 100 | 7.5 | 6,500 | 3030×2075×1920 |
QC11K-6×3200 | 10-25 | 20-600 | 0.5-1.5 | 100 | 7.5 | 7,200 | 3730×3075×1920 |
QC11K-6×4000 | 10-25 | 20-600 | 0.5-1.5 | 100 | 7.5 | 8,500 | 4530×2075×2080 |
QC11K-6×5000 | 8-20 | 20-800 | 0.5-1.5 | 100 | 7.5 | 13,000 | 5530×2075×2310 |
QC11K-6×6000 | 8-20 | 20-800 | 0.5-1.5 | 100 | 11 | 16,000 | 6530×2075×2310 |
QC11K-7×7000 | 6-15 | 20-800 | 0.5-1.5 | 100 | 11 | 21,000 | 7530×2075×2830 |
QC11K-8×2500 | 10-25 | 20-600 | 0.5-1.5 | 100 | 11 | 7,000 | 3040×2075×1920 |
QC11K-8×3200 | 10-25 | 20-600 | 0.5-1.5 | 100 | 11 | 8,100 | 4080×2075×1920 |
QC11K-12×2500 | 6-20 | 20-800 | 0.5-2 | 100 | 18.5 | 11,000 | 3110×2575×2210 |
QC11K-12×3200 | 6-20 | 20-800 | 0.5-2 | 100 | 18.5 | 15,000 | 3810×2575×2420 |
QC11K-12×4000 | 6-20 | 20-800 | 0.5-2 | 100 | 18.5 | 17,000 | 4610×2575×2530 |
QC11K-16×2500 | 5-15 | 20-800 | 0.5-2.5 | 100 | 18.5 | 13,000 | 3130×2655×2200 |
QC11K-16×4000 | 5-15 | 20-800 | 0.5-2.5 | 100 | 18.5 | 19,000 | 4630×2655×2570 |
QC11K-20×2500 | 5-15 | 30-800 | 0.5-3 | 100 | 22 | 15,000 | 3160×2855×2300 |
QC11K-20×4000 | 4-15 | 30-800 | 0.5-3 | 100 | 37 | 23,000 | 4660×2855×2520 |
QC11K-25×2500 | 4-15 | 40-800 | 0.5-3.5 | 100 | 37 | 19,000 | 3160×2900×2700 |
