• Model NO.：ZYB-160T,2000--ZYB-160T,4000
• Standard Equipped Controll System：Da52s
• Application：Machinery & Hardware
• Type for Fold-Bending Machine：CNC Fold-Bend Machine
• Transport Package：Plastic Cover
• Specification：3+1 axes with ESA KV,GV 2004 , DELEM DA65W
• Trademark：ZYMT
• Origin：Anhui, China
• HS Code：8462219000
• Production Capacity：3000sets,Year

Basic Info.

Model NO. ZYB-160T/2000--ZYB-160T/4000 Standard Equipped Controll System Da52s Application Machinery & Hardware Type for Fold-Bending Machine CNC Fold-Bend Machine Transport Package Plastic Cover Specification 3+1 axes with ESA KV/GV 2004 / DELEM DA65W Trademark ZYMT Origin Anhui, China HS Code 8462219000 Production Capacity 3000sets/Year

Product Description

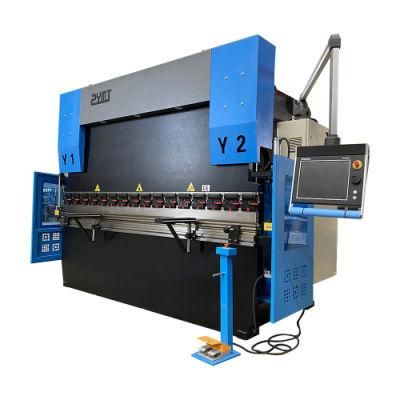

CNC Press Brake 160t/6000mm /CNC Bending Machine/ CNC Bender



ZYB series CNC Sinchronization Press Brake
Features

Welded and processed overall structure, with internal stress eliminated by vibration aging technology;
Closed loop control composed of servo valve, high feedback precision grating ruler,high repeated positioning precision of slider block;
The mechanism of back stopper with multiple stopping shafts for complete functions is employed;
ANSYS finite element analysis software is appled to main parts of the machine body for analysis;
Integrated hydraulic control system,simple installation of pipelines,stable operation as well as simple and nice appearancel;
Upper-punch is be readied, assemble to the length of needing work piece to particular processing;
High-precision grating ruler is mounted on the C-shaped plates of machine body,to avoid the influence over bending precision arising from distortion of machine body during bending process;
Oil cylinder from special manufacture and industry, seal rings and pipe connections are imported;
Front arms with T-slots and fitted with guide rail;
Standar CNC controller: Italy ESA;
Optional: Holland DELEM, Swiss CYBELEC;

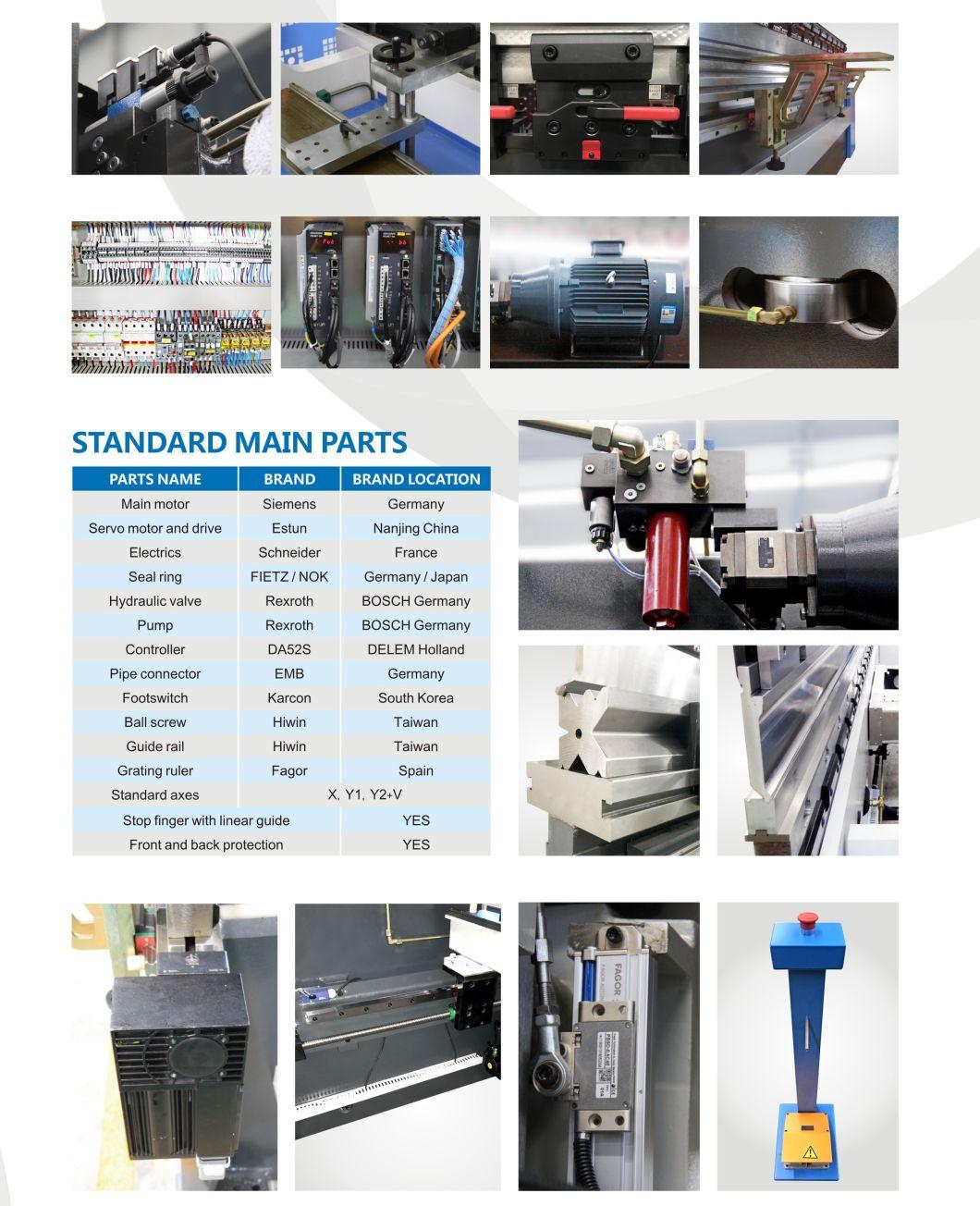

Standard Equipments

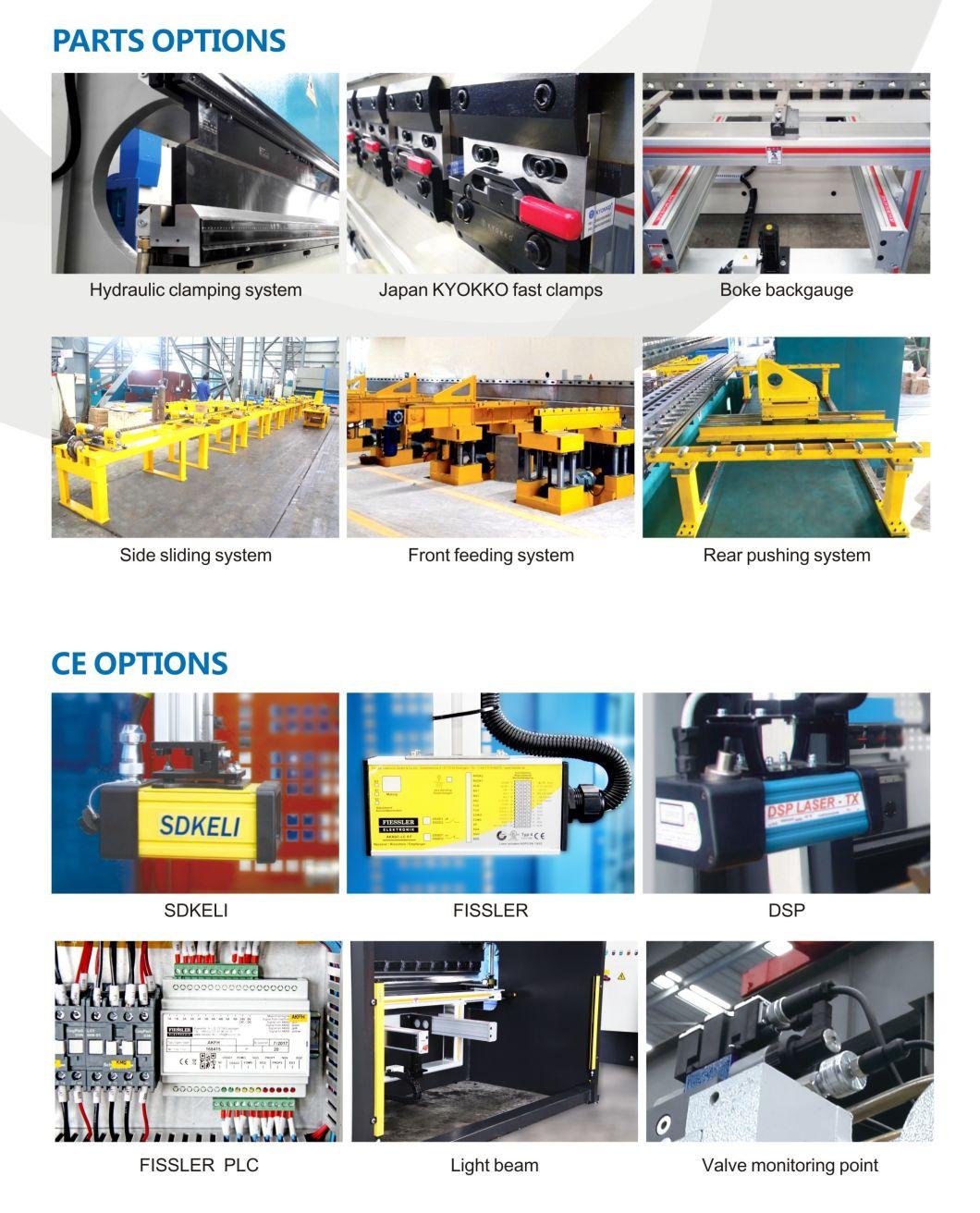

Optional

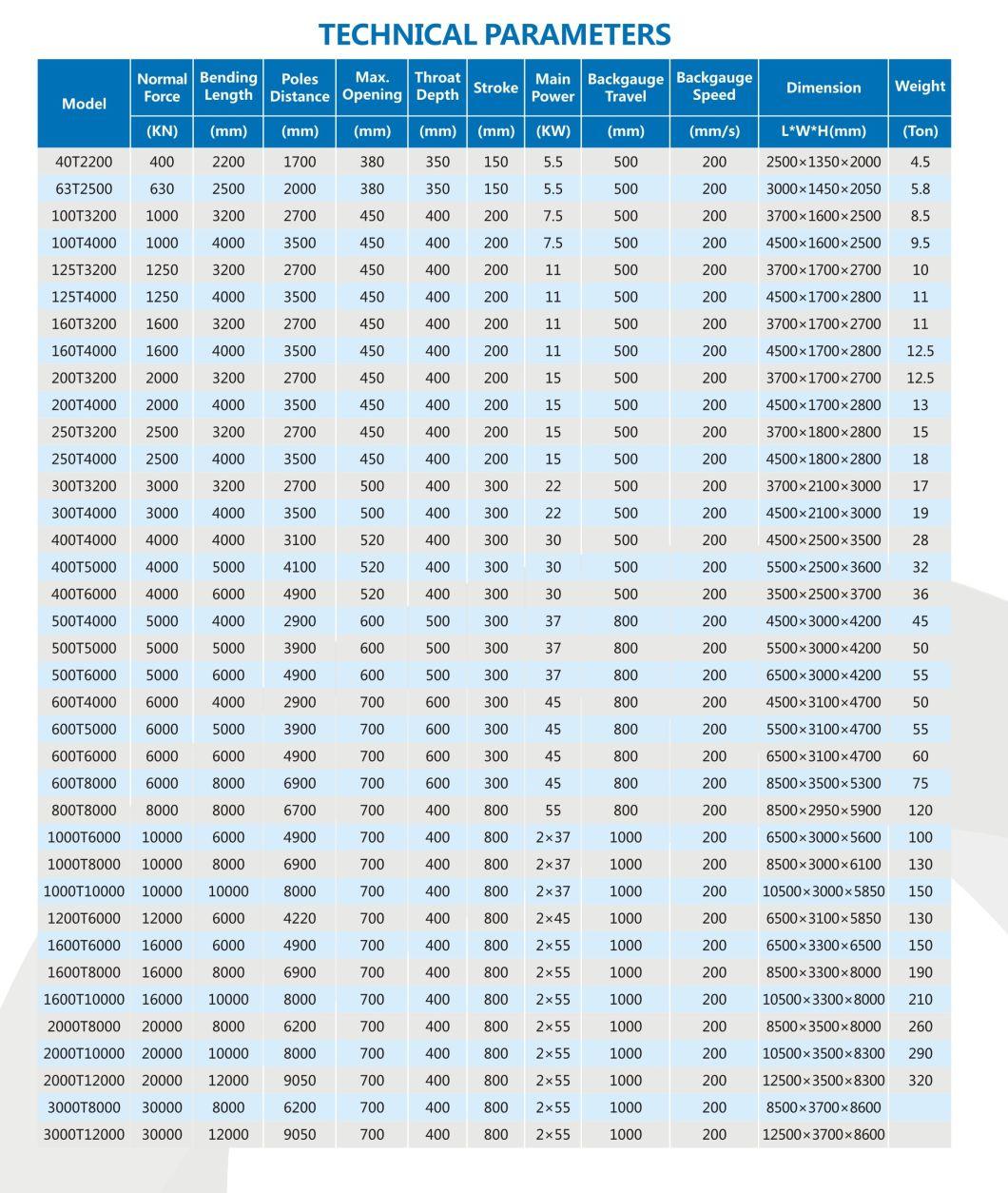

Parameters


Parameters change without notice. All the above models are suitable for tandem.
