• Model NO.：WC67Y
• Type：Press Brake
• Transport Package：Matel Pallet
• Trademark：SJMC
• Origin：China
• Production Capacity：10 Set , Month

Basic Info.

Model NO. WC67Y Type Press Brake Transport Package Matel Pallet Trademark SJMC Origin China Production Capacity 10 Set / Month

Product Description

Features



Functions and characteristics

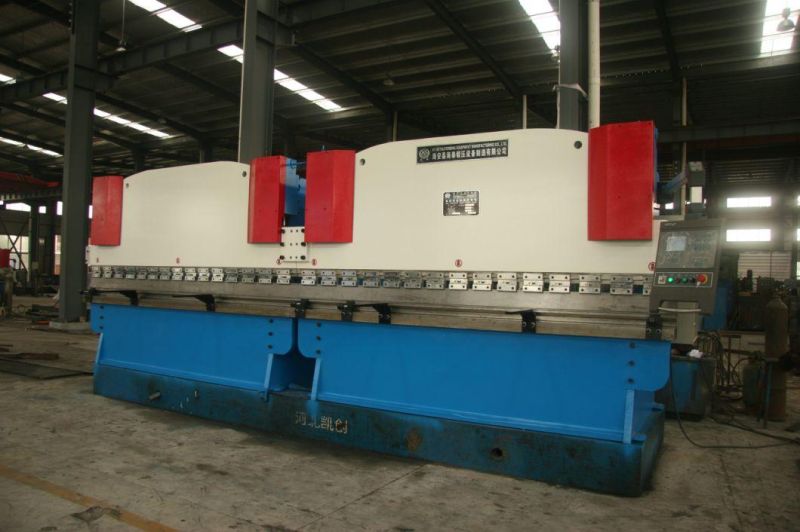

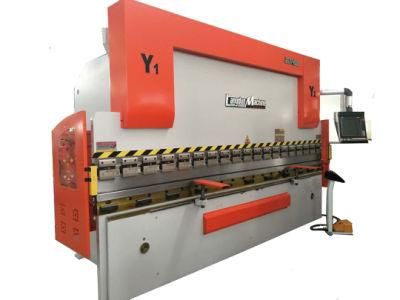

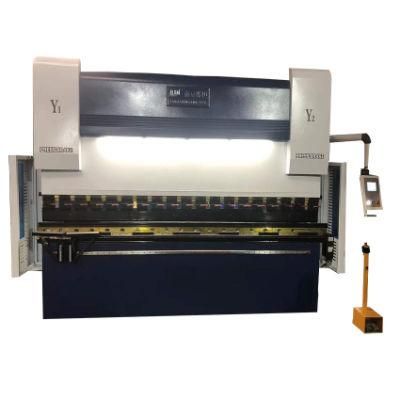

This series machine with hydraulic up-driving system can be run stably. The machine with nominal force less than 1000kN and worktable length less than 3200mm adopts double cylinders. Both mechanical stop controlling the stroke of sliding block and the back gauge can be adjusted manually and with digital read-out device.
The machine with nominal force more than 1000kN and worktable length more than 3200mm adopts three cylinders. Both mechanical stop controlling the stroke of sliding block and the back gauge can be adjusted mechanically with digital read-device and also can be micro-adjusted by hand.
To ensure the bending precision of workpiece, there is bevel joint type precision-regulating machanism on the upper die sets.

Model	WC67Y-40/2000	WC67Y-40/2500	WC67Y-63/2500	WC67Y-63/3200	WC67Y-80/3200	WC67Y-80/4000
Nominal force	400mm	400mm	630mm	630mm	800mm	800mm
Length of work table	2000mm	2500mm	2500mm	3200mm	3200mm	4000mm
Distance between vertical columns	1700mm	2100mm	2100mm	2600mm	2600mm	3300mm
Throat depth	200mm	200mm	250mm	250mm	250mm	250mm
Adjusting range of sliding block travel	100mm	100mm	100mm	100mm	100mm	100mm
Sliding block range of travel	340mm	340mm	360mm	360mm	360mm	360mm
Max. opening height	75mm	75mm	80mm	80mm	80mm	80mm
Motor power	4KW	4KW	5.5KW	5.5KW	7.5KW	7.5KW
Net weight	3500kgs	4200kgs	4800kgs	5800kgs	6500kgs	8000kgs
Size (LxWxH) (mm)	2080x1552x1900	2580x1552x1900	2850x1685x2190	3280x1685x2190	3280x1765x2240	4080x1765x2400



Model	WC67Y-100/3200	WC67Y-100/4000	WC67Y-125/3200	WC67Y-125/4000	WC67Y-125/6000	WC67Y-160/3200
Nominal force	1000mm	1000mm	1250mm	1250mm	1250mm	1600mm
Length of work table	3200mm	4000mm	3200mm	4000mm	6000mm	3200mm
Distance between vertical columns	2600mm	3300mm	2600mm	3300mm	5000mm	2600mm
Throat depth	320mm	320mm	320mm	320mm	320mm	320mm
Adjusting range of sliding block travel	150mm	150mm	150mm	150mm	150mm	200mm
Sliding block range of travel	450mm	450mm	450mm	450mm	450mm	470mm
Max. opening height	120mm	120mm	120mm	120mm	120mm	160mm
Motor power	7.5KW	7.5KW	7.5KW	7.5KW	7.5KW	11KW
Net weight	8200kgs	10200kgs	8400kgs	10800kgs	17600kgs	10800kgs
Size (LxWxH) (mm)	3290x1770x2460	4100x1800x2460	3290x1770x2460	4100x1800x2460	6150x1900x2460	3280x1940x2450



Model	WC67Y-160/4000	WC67Y-160/6000	WC67Y-200/3200	WC67Y-200/4000	WC67Y-200/6000	WC67Y-250/3200
Nominal force	1600mm	1600mm	2000mm	2000mm	2000mm	2500mm
Length of work table	4000mm	6000mm	3200mm	4000mm	6000mm	3200mm
Distance between vertical columns	3300mm	5000mm	2600mm	3300mm	5000mm	2600mm
Throat depth	320mm	320mm	320mm	320mm	320mm	400mm
Adjusting range of sliding block travel	200mm	200mm	200mm	200mm	200mm	250mm
Sliding block range of travel	470mm	470mm	500mm	500mm	500mm	600mm
Max. opening height	160mm	160mm	160mm	160mm	160mm	200mm
Motor power	11KW	11KW	15KW	15KW	15KW	18.5KW
Net weight	12800kgs	19500kgs	13600kgs	15800kgs	24600kgs	16800kgs
Size (LxWxH) (mm)	4080x1940x2950	6100x1940x2950	3280x2040x2950	4080x2040x2950	6150x2040x3200	3300x1940x2950



Model	WC67Y-250/4000	WC67Y-250/6000	WC67Y-300/3200	WC67Y-300/4000	WC67Y-300/6000
Nominal force	2500mm	2500mm	3000mm	3000mm	3000mm
Length of work table	4000mm	6000mm	3200mm	4000mm	6000mm
Distance between vertical columns	3300mm	5000mm	2600mm	3300mm	5000mm
Throat depth	400mm	400mm	400mm	400mm	400mm
Adjusting range of sliding block travel	250mm	250mm	250mm	250mm	250mm
Sliding block range of travel	600mm	600mm	600mm	600mm	600mm
Max. opening height	200mm	200mm	200mm	200mm	200mm
Motor power	18.5KW	18.5KW	22KW	22KW	22KW
Net weight	2050kgs	28800kgs	27200kgs	30000kgs	40000kgs
Size (LxWxH) (mm)	4080x1940x3300	6150x2050x3300	3280x2300x3800	4100x2300x3800	6150x2400x3900
