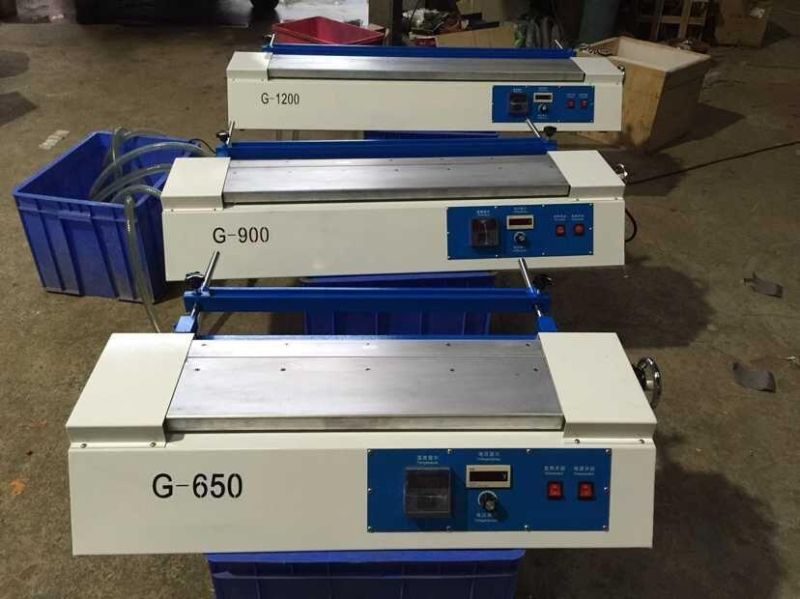

• Model NO.：G1200
• Suitable for：Plastic
• Type：Manual Bending Machine
• Transport Package：Wooden Case
• Specification：1200mm width
• Trademark：GRACE
• Origin：China
• Production Capacity：500 Sets,Months

Product Application

It is easy to operate and has two functions: automatic and manual. In the automatic state, after the plate is put into operation, it will be automatically bent and formed within the preset time

The softening gap can be adjusted arbitrarily according to the thickness of the processed plate

The plate adopts fixed heating to reduce the deformation after forming

The accuracy and convenience of product batch configuration are ensured by the hand wheel

The use of infrared heating method greatly prolongs the service life compared with furnace wire heating method

The working voltage can be adjusted to avoid the paste phenomenon when folding thick plates

The water circulation system is equipped, and the water temperature overheating alarm system is installed to ensure the safe use of the equipment

The leakage protection function is equipped with grounding wire, which is safe to use

Applicable to a variety of industries, can fold acrylic, PVC and other materials.Use for acrylic, pvc, pp board, plastic materails bending, bending thickness is around 30mm.  can do 0-179 degree bending by automatically.
Up and down heating by two heating tubes.
Heating tube materials is Quartz glass





Bending machine is widely used for bending the materials like acrylic, plastic, PC, PVC and PP.



The machine bends the materials into different angles by heating up the materials with single or multi tube heaters.



This machine is fast and precise. Working plateforms are cooled by water cooling system for the best result, highest efficiency and precise angle forming.



The adjustable temperture works out for different materials correctly without over heating causing bubbles and undesirable curves.



This is an ideal machine for the acrylic and plastic works.



Features:

1. Desktop type,

2. One tube and two spare tubes

3. with water pump for cooling.

4. Working width is 1200mm.

5. 2 heating tubes for free (tube type: quartz glass)

6. Power supply: 220v 50-60hz

7. NET Weight: 130KGS

8. Gross Weight: 150kgs  (wooden package)

9. Package way: wooden or carton

10. MAX Bending thickness: 10 mm

11. Materials it can process: Acrylic, plastic, pp board, polyester etc.

12. heating tube power is 1200W
