• Model NO.：GM-SB-89CNC
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：GM-89CNC-2A-1S
• Trademark：GMACC
• Origin：China
• HS Code：8462219000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-SB-89CNC Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification GM-89CNC-2A-1S Trademark GMACC Origin China HS Code 8462219000 Production Capacity 5000PCS/Year

Product Description

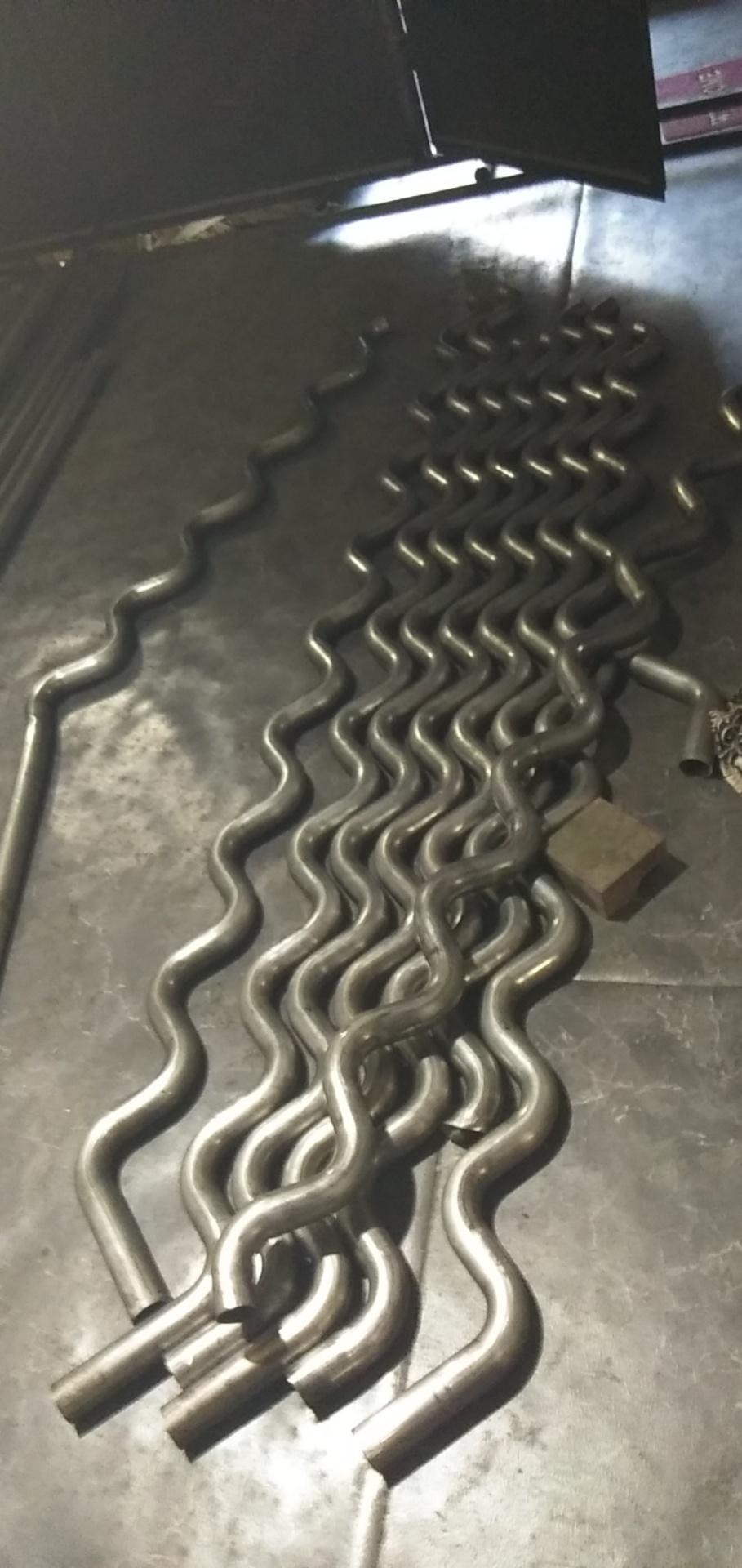

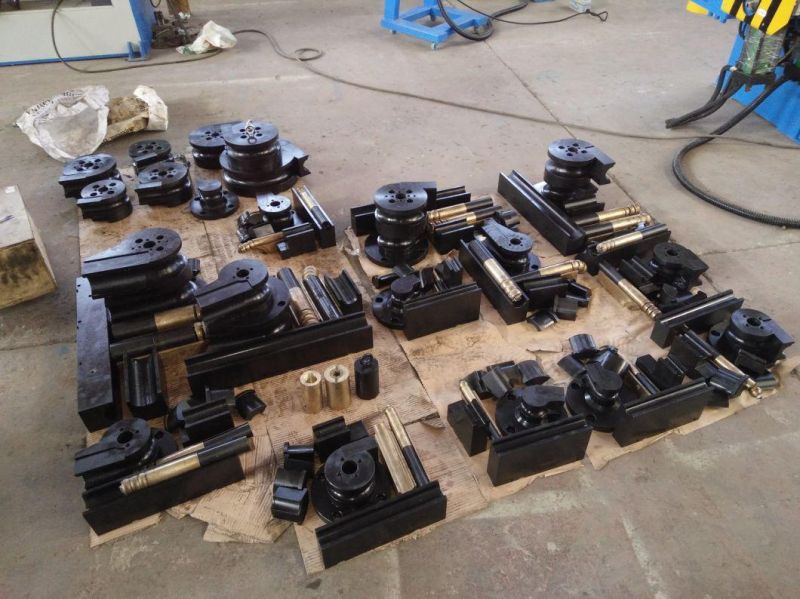

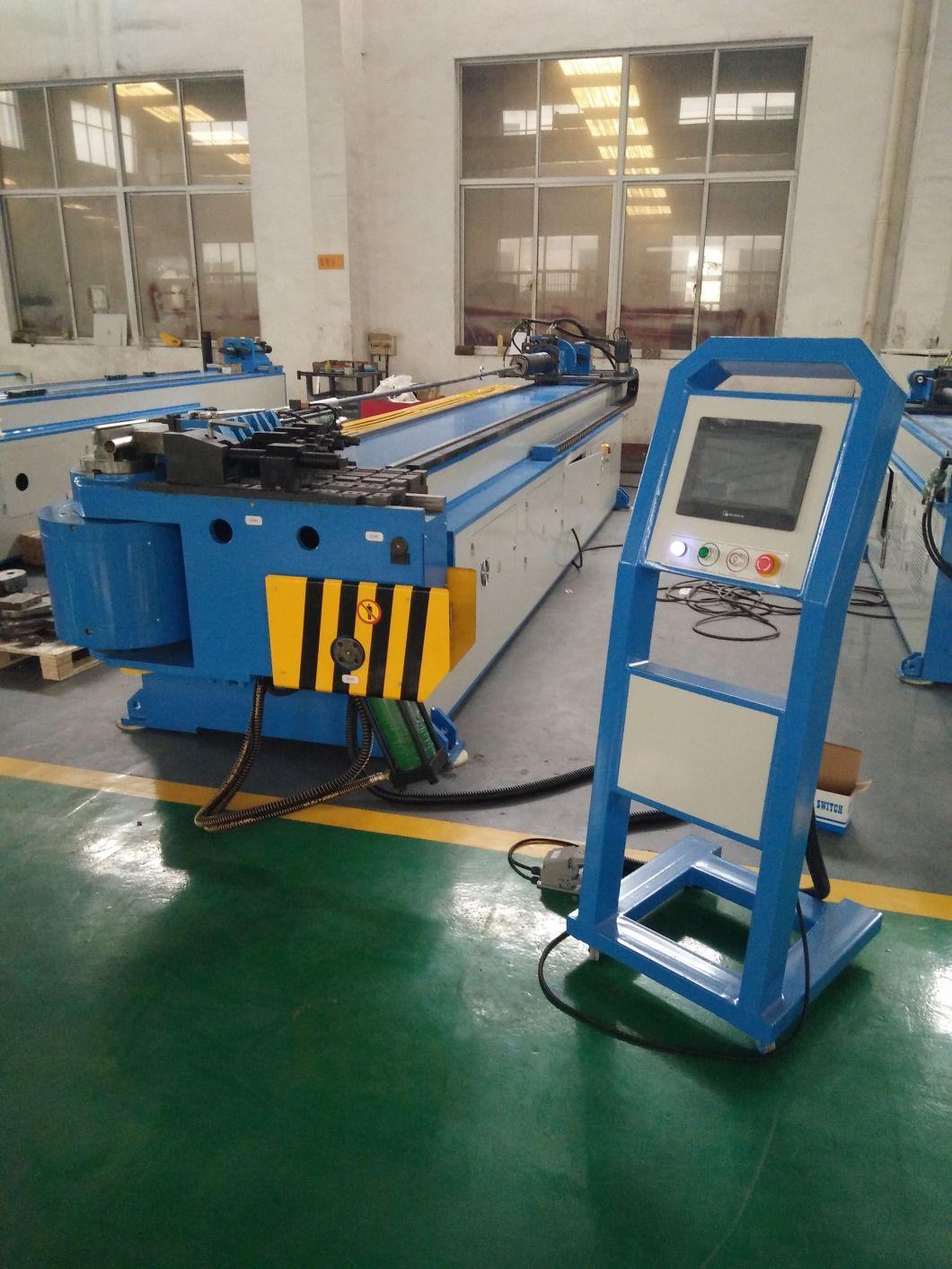

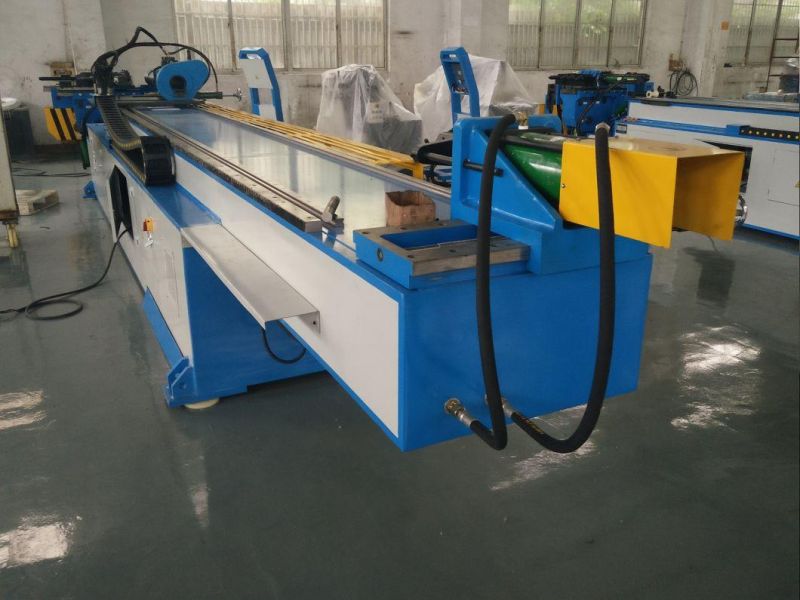

Technical Parameter and Configuration for Automatic Pipe Bending Machine GM-SB-89CNC

• Machine Characteristic

The series was adapted in particular to professional world market requirements. All the parts, structure and characters are similar to the standard of mechanical engineering from Europe.Our professional experience and drawings plans for Electric, Electronic, Hydraulic and mechanical from known companies bring to upgrading of the machines' systems to accurate and attractive performance.
GM-SB-CNC Series numerical control single-head pipe bending machine is the product from the combination with our technology and advanced Italian technology, integrated with machine, hydraulic, and electricity. This series adopt VDU touch screen operating panel, which can input, store, and display various bending data and order. Y, B, C three coordinates of motion under precision control by industrial computer can realize full-auto mandrel on or mandrel off rapid bending, CNC machine also with advanced functions, such as components bending spring back compensation, errors self diagnose alarm, memory store after power off, automatic lubrication and safety protection. Advanced technology, high automation reliability, integrated design all make CNC pipe bending machine the first class pipe processing machine in the world.
Main Technical Parameter

Name	Unit	Parameter
Mild steel round tube	mm	¢89*8
Stainless Steel	mm	¢89*5
Light alloy annealed round tube	mm	¢89*10
Mild steel square tube	mm	70*70*6
Mild steel rectangular tube	mm	75*65*6
Mild steel round solid bar	mm	¢40
Mild steel square solid bar	mm	35*35
Min. bending radius	mm	40
Max. Bending radius(Standard)	mm	400
Head overhang (on bending centre)	mm	460
Head height (on bending centre)	mm	610
Bending centre height (from floor)	mm	1140
Max. bar passage inside the P.O.B. positionner	mm	70
Clamping adjustable stroke	mm	0-140
Shouldering adjustable stroke	mm	350
Mandrel retraction adjustable stroke	mm	0-150
Max. Bending Angle	°	190°
Through Effective Distance	mm	4200
Bending Speed(Max.)	°/sec	25
Max. rotation speed (axis Z)	°/sec	160
Max. feeding speed (axis X.)	mm/sec	500
Bending angle Precision	°	±0.10
Rotation angle Precision - axis Z	°	±0.10
Shifting Precision - axis X	mm	±0.10
Rotation Servo Motor Power	KW	1.5
Feeding Servo Motor Power	KW	1.5
System Motor Power	KW	11
Hydraulic Pump Volume	L	30
Max. Pressure	Mpa	16
L*W*H (Packaging Dimension)	mm	5300*1350*1200
Machine Weight	T	ABOUT 4.8



• Configuration of Hydraulic and Electronic Control System



Name	Manufacturer
Hydraulic Motor	Germany Siemens(Beide)or Runmali
Hydraulic Pump	Wuxi Tuoli
Hydraulic Valve	Japan Yuken(Imported)
Oil way Board	Taiwan Shanghong (Imported)
Cylinder	Shanghai Qifan
Touch screen	Taiwan Weinview(Imported)
PLC	Japan Mitsubishi(Imported)
Angle controller	Japan Nemicon(Imported)
Switch power	Taiwan Mingwei
Rotating/feeding servo motor	Japan Mitsubishi(Imported)
Transformer	Wuxi Xinyu
