CE Approved Hydraulic Pipe Tube Bender (HHW-2J/3J/4J)

TAIZHOU RUIQI TOOLS CO., LTD.
  • Automation：Manual
  • Type：Pipe and Tube Bending Machine
  • Bending Formers：1,2"~4"
  • Application：Machinery & Hardware
  • Type for Cutting Machine：Steel Pipe Bending Machine
  • Type for Fold-bending Machine：Hydraulic Fold-bend Machine

Base Info

  • Model NO.：HHW-2J HHW-3J HHW-4J
  • Transport Package：Plywood Case
  • Specification：CE, ISO9001: 2000
  • Trademark：TLP
  • Origin：China
  • HS Code：84622990
  • Production Capacity：1000pcs,month

Description

Basic Info.

Model NO. HHW-2J HHW-3J HHW-4J Transport Package Plywood Case Specification CE, ISO9001: 2000 Trademark TLP Origin China HS Code 84622990 Production Capacity 1000pcs/month

Product Description

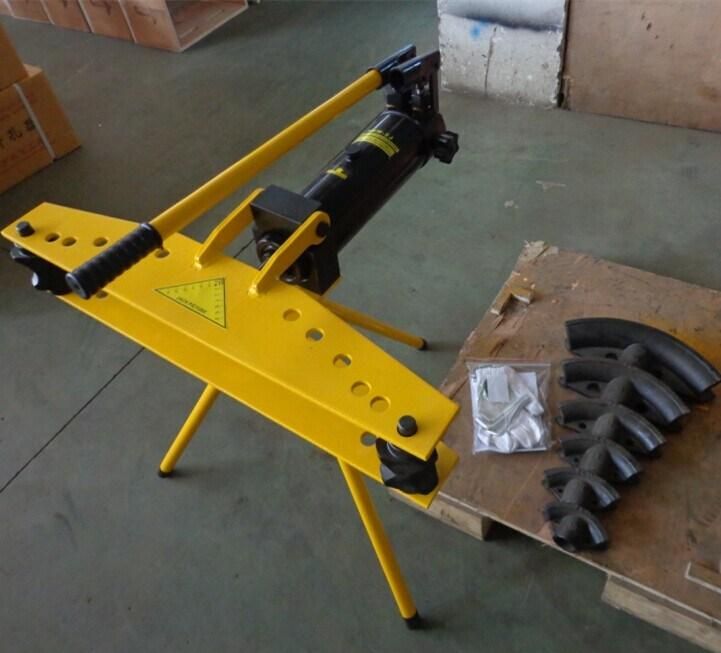

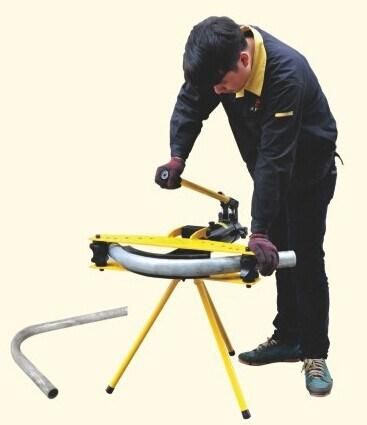

CE Approved Hydraulic Pipe Tube Bender (HHW-2J/3J/4J)The bender is applicable for bending steel pipes up to 90 degree.
It features simple operation, long service life and smooth round bends.

Hydraulic Pipe Bender

Model: HHW-2J
Max. Pressure: 16T
Max. Stroke: 250mm
Crimp range: Φ 21.3-Φ 60mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2"
Wall thickness of pipe: 2.75mm-4.5mm
G. W.: 53kg
Volume(cm): 73*32*20

Model: HHW-3J
Max pressure: 20T
Max. Stroke: 320mm
Crimp range: Φ 21.3-Φ 88.5mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3"
Wall thickness of pipe: 2.75mm-5mm
G. W.: 117kg
Volume(cm): 93*40*21

Model: HHW-4J
Max. Pressure: 23T
Max. Stroke: 370mm
Crimp range: Φ 21.3mm-Φ 108mm
Bending dies supplied(in): 1/2" 3/4" 1" 11/4" 11/2" 2" 21/2" 3" 4"
Wall thickness of pipe(in): 2.75mm-6mm
G. W.: 165kg
Volume(cm): 118*46*23
