Jm85 Metal Fast Steel Roller Shutter Rolling Door Forming Machine
Xiamen Xinhonghua Machinery Co., Ltd.- Condition：New
- Certification：SGS
- Automation：Automatic
- Dimension：4000*900*1400mm
- Weight：1500kgs
- Motor Power：4kw
Base Info
- Model NO.：JM85
- Hydraulic Power：2.2kw
- Voltage：220V,60Hz,3pH
- Working Speed：8-12m,Min
- Forming Steps：14
- Effective Width：85mm
- Material Width：136mm
- Thickness：0.6-0.8mm
- Transport Package：Standard Package of Export
- Trademark：XHH
- Origin：Xiamen, China
- HS Code：84552290
- Production Capacity：20sets,Month
Description
Basic Info.
Model NO. JM85 Hydraulic Power 2.2kw Voltage 220V/60Hz/3pH Working Speed 8-12m/Min Forming Steps 14 Effective Width 85mm Material Width 136mm Thickness 0.6-0.8mm Transport Package Standard Package of Export Trademark XHH Origin Xiamen, China HS Code 84552290 Production Capacity 20sets/MonthProduct Description
JM85 Steel Roller Shutter Door Forming Machine detailed informations are as follows:
(1). Material Thickness: 0.6-0.8mm;
(2). Thickness for common use and test: 0.8mm;
(3). Tolerance: +/-2mm.

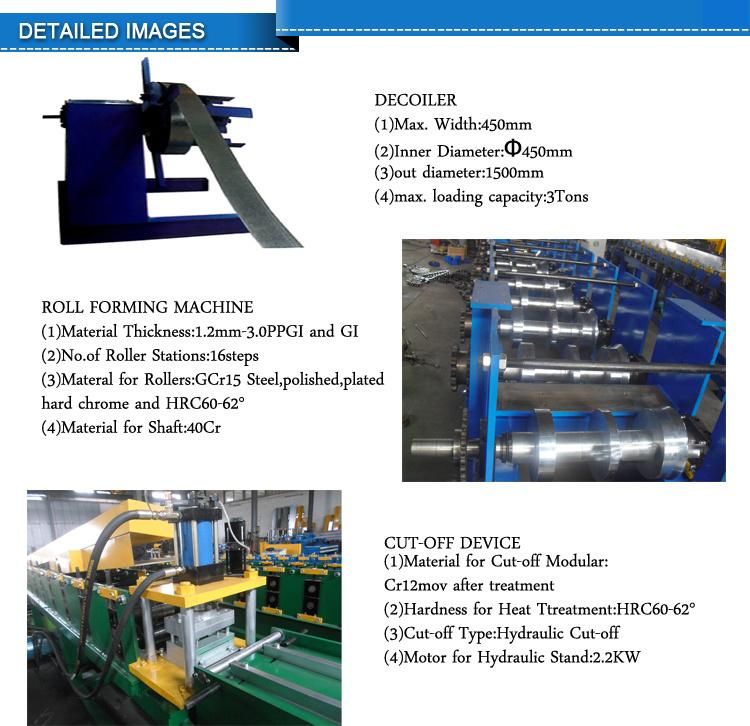

Main Accessories:
(1). Main Forming Machine;
(2). 3 Tons Manual Uncoiler;
(3). Hydraulic System;

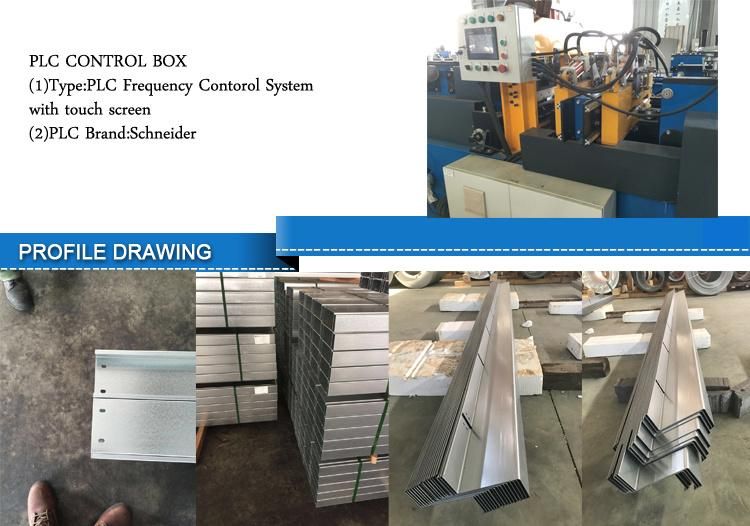

(4). PLC Computer Controlling System With Touch Screen;
(5). Hydraulic Forming Cutter;
(6). Run Out Table (3 sets);
(7). Tools;
(8). Operation Manual.
| 1. | Size | 4000*900*1400mm |
| 2. | Weight | 1500 KGS |
| 3. | Motor Power | 4 KW |
| 4. | Hydraulic Power | 2.2KW |
| 5. | Volage | 220V/60HZ/3PH |
| 6. | Effective Width | 85mm |
| 7. | Material Width | 136mm |
| 8. | Forming Steps | 14 steps |
| 9. | Forming Speed | 8-12m/min |
| 10. | Thickness for common use and test | 0.8mm |
| 11. | Tolerance | ± 2mm |
