• Model NO.：GJ85
• Specification：CE, ISO
• Trademark：Longteng
• Origin：Wuxi, China (Mainland)
• HS Code：8515900000
• Production Capacity：50000 PCS,Year

Basic Info.

Model NO. GJ85 Specification CE, ISO Trademark Longteng Origin Wuxi, China (Mainland) HS Code 8515900000 Production Capacity 50000 PCS/Year

Product Description

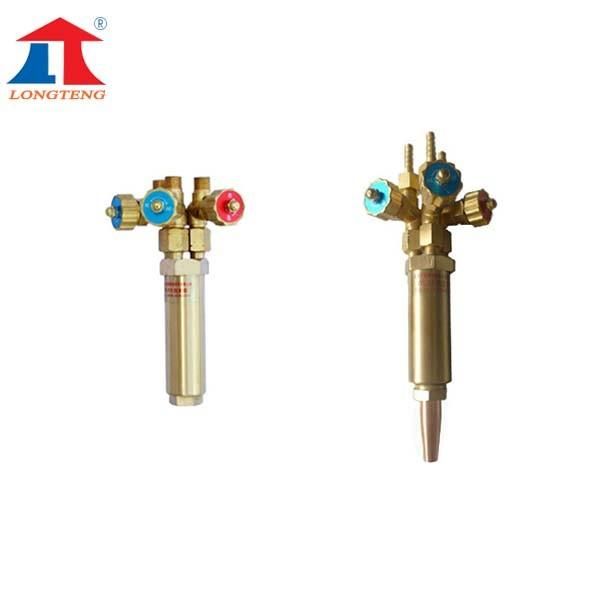

85mm oxy-fuel gas cutting torch

1)Quick Detail:
1. 85mm Straight Strip
2. For CNC flame cutting machine
3. Balanced pressure structure design cutter to cut the steel plate

2)Structural Features:
1. It is made of high quality forging brass.
2. Balanced pressure structure design.
3. It adopts silver solder, which can effectively avoid leakage.

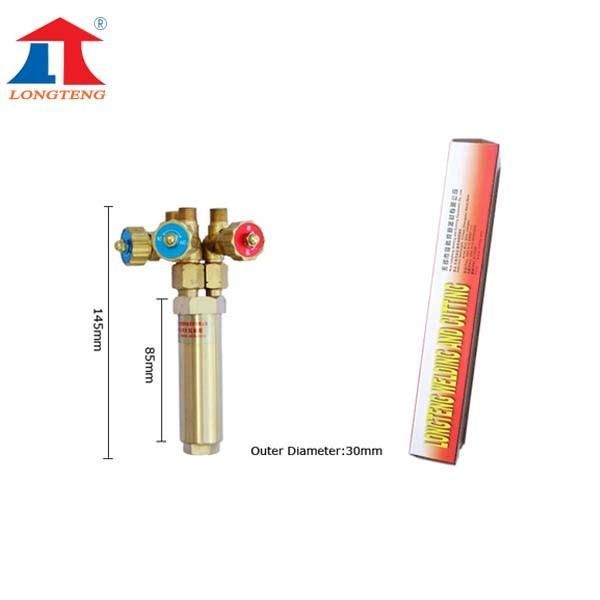

4. O. D. Of the tube: 30 mm
5. The length of the tube: 85mm,180mm,250mm,370mm,450mm.
6. The gear rack can be installed at 4 different positions with 90 degrees between two positions.
7. It is suitable for balanced pressure cutting nozzle/tip with cone of 30 degrees.

3)Applications:
Staight Strip Oxy-feul Cutting Torch is suitable for use in digital control flame cutting machines, and is used to connect the cutting nozzles/tips, cutting steel and other metal materials. The torch needs to match with the cutting tip for cutting, and the different type of cutting tip uses for cutting different thickness of the steel plate. A oxy-feul cutting torch has three valves to control the gas, two valves for oxygen which is blue, one valve for fuel gas which is blue. From left to right for each is the preheating oxygen, the cutting oxygen, the fuel gas. According to different height of the CNC flame cutting machine, the clients will choose the different length oxy-fuel cutting torch.



4)Working Principles:
Gas cutting is to use the flame produced by the mixture of fuel gas with oxygen to realize the cutting of metal, so it is also called thermal cutting ane falme cutting. During the cutting process, the mrtal is preheated to its kindling point, the oxygen flow then leads to the violent conbustion of the metal and the same time blows the generated oxide slage thus to form the inscion.

5)Maintenance Skills:
1. Install the cutting torch correctlly.
2. Replace the consumbles in time before completely damaged.
3. Avoid the collision of the cutting torch.
4. Keep the connection threads of the cutting clean.
5. Keep the contact area of betwween the eletrode and cutting tips/nozzles.
6. Check if there are loose parts.

6)Competitive Advantage:
1. Professional manufacturer for CNC cutting machine accessories
2. More than 16 years experience
3. Factory direct price and on time delivery
4. Secure ordering and worldwide delivery
5. Sample available
6. Small quantity acceptable
7. OEM workable


Model NO.	Thimble Length(mm)	Cutting Thickness(mm)	Rack Length/Modulus	Acetylene Cutting Tips	Propane Cutting Tips	Inlet connection
GJ	85	300	/	G02#0-#5	G03#0-#5	M12*1.25
GJ	180	300	150/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	250	300	210/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	370	300	210/1	G02#0-#5	G03#0-#5	M12*1.25
GJ	450	300	310/1	G02#0-#5	G03#0-#5	M12*1.25
