• Model NO.：GM-50B
• Type：End Forming
• Transport Package：Iron Frame
• Specification：GM-50B
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-50B Type End Forming Transport Package Iron Frame Specification GM-50B Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

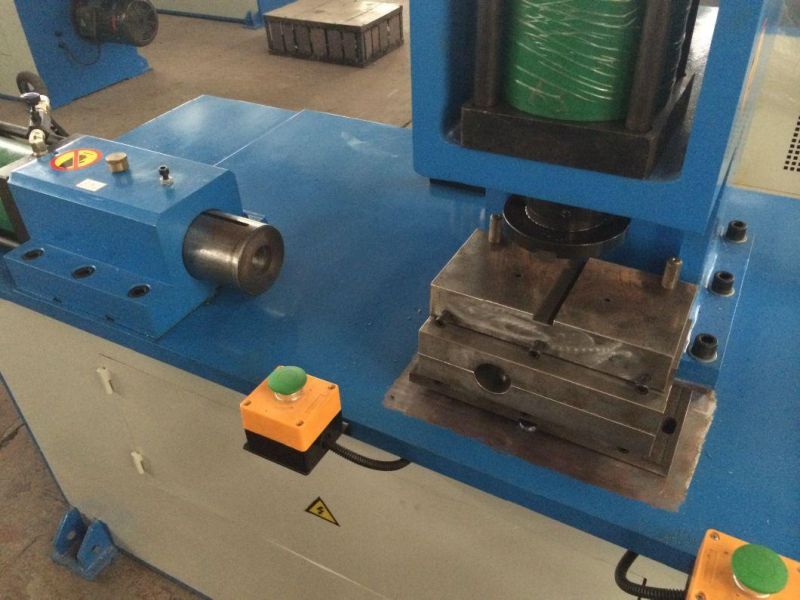

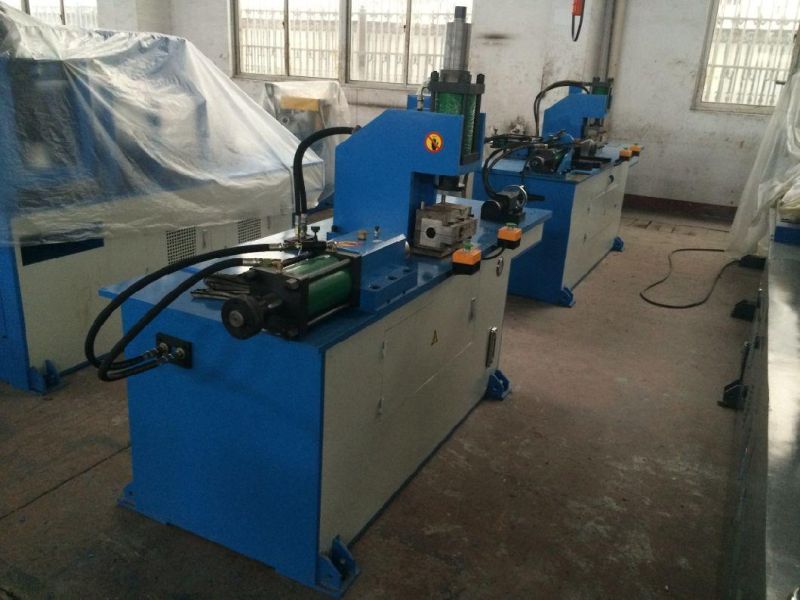

Forming Machine
GM-50 Taper End Forming Machine is a kind of high efficiency, full-auto machine. It is controlled by oil and electricity at the same time. It adopts cold forging method to reduce or extend pipe into cylinder or cone pipe. With die concerned, it can process different shapes and sizes fittings. The fittings are bright, smooth, and with high hardness.

1. Construction
Bed used welding pieces, imports of hydraulic systems and electric control three of fabric to complete. The electric parts and hydraulic are imported.
2. Design Principle
It is controlled by PLC, driven by hydraulic. It is simple to change the dies.
3. Major Performance.
It adopts PLC control. It is simple to operate, with steady precision, high speed and complete function.

4. Configuration
A)Hydraulic systems are imported
Hydraulic motor: Fu'an Taiwan
Hydraulic pump: HYDROMAX Taiwan
Hydraulic valve: Yuken Japan
Oil way board: Shanghong Taiwan
Oil cylinder: Jingsheng Shanghai
B) Electronic parts
Button Switch: Shilin tiawan
Photoelectric switches and Electrical: Shilin Taiwan
PLC: Mitsubishi Japan

Name	Unit	GM-50
Max. Reduction Capacity	Mm	50*2
Max. Reduction Length	Mm	120
Reduction time	S	10-14
Oil pump	L	16
Oil tank capacity	L	90
Motor Power	Kw	4.0
The length of the machine	mm	2000
The width of the machine	mm	600
The height of the machine	mm	1500
The weight of the machine	kg	1300
