• Model NO.：WC67Y-40x2000
• Specification：Force as 40t, Length as 2000mm
• Trademark：HAVEN
• Origin：China
• HS Code：8466
• Production Capacity：50 Units,Month

Basic Info.

Model NO. WC67Y-40x2000 Specification Force as 40t, Length as 2000mm Trademark HAVEN Origin China HS Code 8466 Production Capacity 50 Units/Month

Product Description

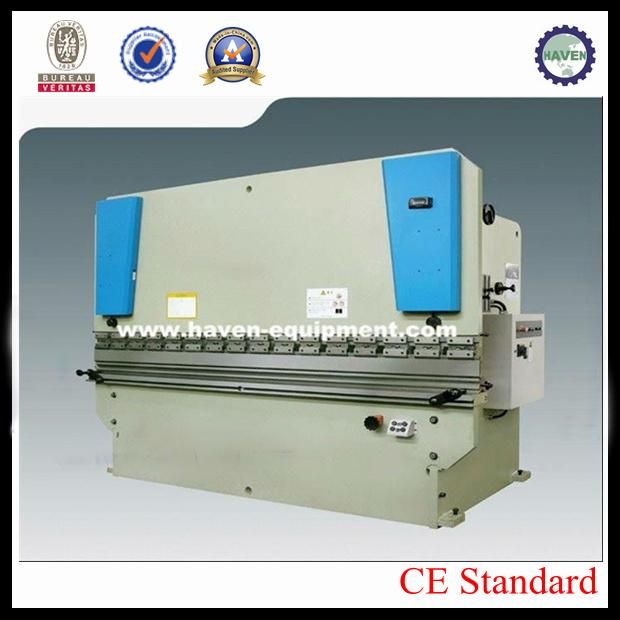

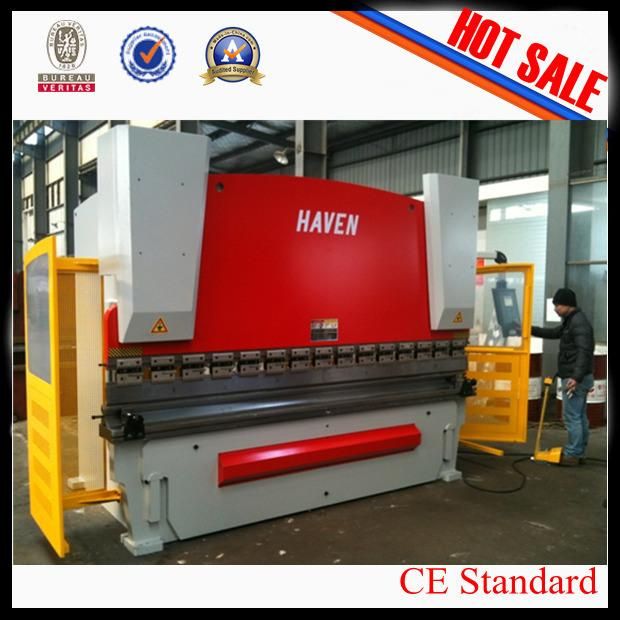

Descriptions of Economical Hydraulic Press Brake:
- Welded construction: The stress of welded parts can be eliminated by vibration, high accuracy is achieved by this forging machine
- Frame: Consist of right and left wall boards, working table, oil box, slot steel, synchronizing shaft and etc.
- Integrated hydraulic control system: More reliable and easier to maintain
- Slide synchro system: Adopt steel torsion bar synchro system, with high synchro precision. There are 2 synchro forks at the both ends of slide, making the movement effect balanced during operation. Brake precision is improved due to the use of upper die compensation.
- This type of metal machining tool is a kind of steel torsion bar synchro press brake. Electronic control of back gauge and RAM stroke, data displayed and manual setting.
- Main components: Schneider electrical components, NOK sealing components
- Optional accessories: Esturn E10 counter, pendant-control-box German Herbiger valves or Italy Aron valves light curtain ball screw and linear guide of back gauge tooling clamping device.

Model	Nominal Pressure (kN)	Length of table (mm)	Distance Between Housing (mm)	Throat Depth (mm)	Stroke (mm)	Open Hight (mm)	Main Motor (kW)	Dimensions (L x W x H) (mm)	weight (t)
40/2000	400	2000	1600	200	110	335	4	2545x1510x2050	3
40/2500	400	2500	2000	200	110	335	4	2950x1510x2080	3.5
63/2000	630	2000	1600	250	110	350	5.5	2555x1600x2130	3.8
63/2500	630	2500	2000	250	110	350	5.5	2960x1600x2180	4.2
63/3200	630	3200	2600	250	110	350	5.5	3740x1600x2230	5.2
100/2500	1000	2500	2000	350	150	400	7.5	2980x1650x2330	6.3
100/3200	1000	3200	2600	350	150	400	7.5	3740x1650x2355	7
100/4000	1000	4000	3200	350	150	400	7.5	4550x1650x2450	8.8
100/5000	1000	5000	4000	350	150	400	7.5	5100x1500x2650	11.8
125/2500	1250	2500	2000	350	150	410	7.5	3980x1650x2370	7.5
125/3200	1250	3200	2600	350	150	410	7.5	3750x1650x2450	8.2
125/4000	1250	4000	3200	350	150	410	7.5	4550x1650x2470	9
125/5000	1250	5000	4000	350	150	410	7.5	5100x1500x2795	11.5
125/6000	1250	6000	4500	350	150	410	7.5	6100x1500x2895	14
160/2500	1600	2500	2000	350	150	425	11	2980x1715x2410	8.5
160/3200	1600	3200	2550	350	150	425	11	3750x1715x2450	11
160/4000	1600	4000	3200	350	190	450	11	4550x1715x2730	12
160/5000	1600	5000	4000	350	190	450	11	5100x1570x2900	15.5
160/6000	1600	6000	4500	350	190	450	11	6100x1570x3010	19
200/3200	2000	3200	2600	350	240	460	11	3750x1815x2715	13
200/4000	2000	4000	3200	350	240	460	11	4550x1815x2850	14
200/5000	2000	5000	3800	350	240	460	11	5100x1715x3020	18.5
200/6000	2000	6000	4500	350	240	460	11	6100x1715x3120	21
250/3200	2500	3200	2600	400	240	525	11	3750x2010x2850	15.5
250/4000	2500	4000	3200	400	240	525	11	4550x2010x3010	17
250/5000	2500	5000	3800	400	240	525	11	5100x1890x3190	21.5
250/6000	2500	6000	4500	400	240	525	11	6100x1890x3350	28
300/3200	3000	3200	2600	400	250	545	15	3740x2100x3235	19.5
300/4000	3000	4000	3200	400	250	545	15	4340x2100x3300	22
300/5000	3000	5000	3800	400	250	545	15	5100x2100x3430	26
300/6000	3000	6000	4500	400	250	545	15	6100x2100x3490	29
