• Model NO.：GM-DS-315A
• Type：Pipe and Tube Bending Machine
• Transport Package：Iron Frame
• Specification：Gm-Ds-315a
• Trademark：GMACC
• Origin：China
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. GM-DS-315A Type Pipe and Tube Bending Machine Transport Package Iron Frame Specification Gm-Ds-315a Trademark GMACC Origin China Production Capacity 5000PCS/Year

Product Description

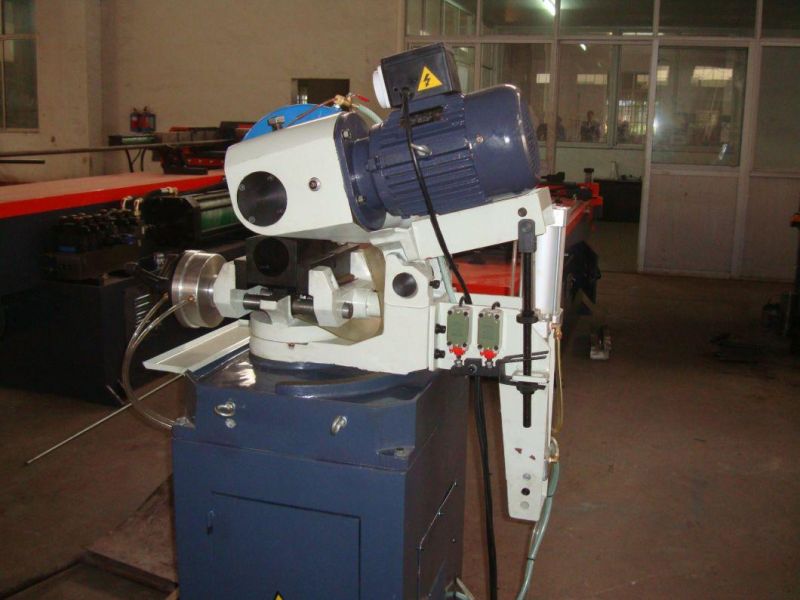

GM-DS-315A metal disk saw machine is semi-auto pneumatic cutting machine tools, cutting various cross section shapes to the ordinary steel, stainless steel, copper materials, and aluminum materials, in particular the various pipe is ideal cutting equipment.

Construction Machine
Bed used welding pieces, imports of pneumatic systems and electric control three of fabric to complete.

Design Principle
Apart from the sawing machine manually by the required length feed, the other work piece clamps, saw blade advance and backward, clamp retreating are all pneumatically driven.

Major Performance
The machine is operated light, no noise and no dust pollution, cutting good quality internal and external incisions, no thorns, high production efficiency, and the advantages of various angles cutting.

Main Parameters
Name Unit GM-DS-315A
Cutting Capacity(90° ) 50
90
mm 90× 90
mm rectangle 110× 50
Cutting Capacity(45° ) 40
90
mm 75× 75
mm rectangle 100× 90
The motor power KW 2.0/2.4
The rotating speed Giri/min 50/100
The largest opening of pincers mm 130
Saw blade size Mm 315
Weight kg 220

Configuration
As a whole bed of plate welding machine are key components of a CNC machine center completed to ensure the accuracy of machine parts.
Pneumatic pump: Made in Taiwan
Pneumatic valves: Made in Taiwan
(C) Electronic parts
Motor: Made in wuxi
Button switch: Made in Taiwan
Photoelectric switches and electrical: Made in Taiwan
