• Model NO.：QC12K-8X3200 E200
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462299000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. QC12K-8X3200 E200 Transport Package Plastic Cover Specification CE Trademark ZYMT Origin China HS Code 8462299000 Production Capacity 3000 Sets/Year

Product Description

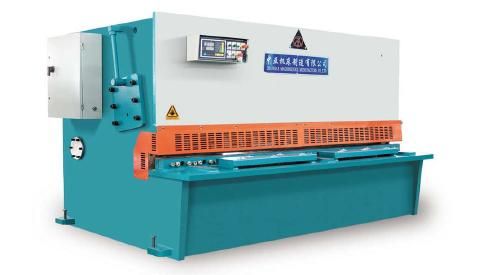

Hydraulic Swing Beam Shearing Machine(QC12K-8x3200):
Features:

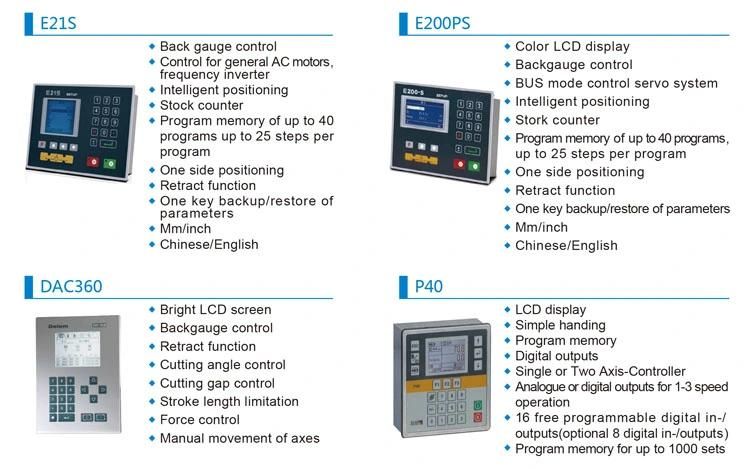

1:The machine is fitted with CNC controller special for shearing machines.
2:The position of rear stopper is displayed in real-time manner.
3:Multi-step programming function is available and the rear stopper is able for automatic operation and continues positioning, to achieve an automatic adjustment for position of rear stopper.
4:It is provided with counting function for shearing , to display the shearing numbers in a real-time manner ,able for power-failure memory of position of rear stopper, procedures, and parameters.

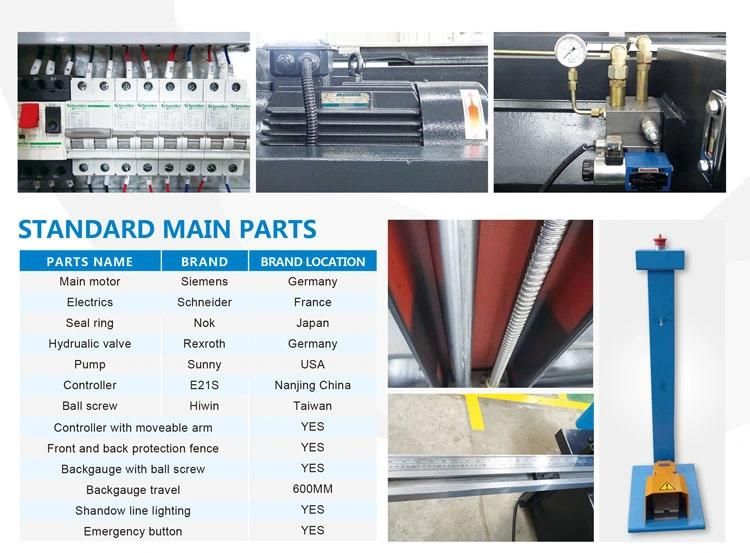

5:Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision processing.




Standard Description:

Model	Mild Steel (450MPA)	Cutting Length (mm)	Depth Of Throat (mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor (kw)	Dimensions L×W×H  (mm)	Weight (t)
4×2000	4	2000	80	750	0.5°~2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2000	80	750	0.5°~2°	14	5.5	3125×1750×1765	4.5
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5	5650×2050×2400	10.5
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5	6650×1980×2380	15.2
8×2500	8	6000	80	750	0.5°~2°	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	750	0.5°~2°	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	750	0.5°~2°	10	7.5	4650×1890×2075	9
8×5000	8	5000	80	750	0.5°~2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	750	0.5°~2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	750	0.5°~2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	750	0.5°~2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	750	0.5°~2°30′	6	15	4695×1970×2270	11
10×5000	10	5000	100	750	0.5°~2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	750	0.5°~2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	750	0.5°~2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	750	0.5°~2°30′	8	15	3895×1950×2240	9.2
12×4000	12	4000	100	750	0.5°~2°30′	6	15	4710×1950×2450	13
12×5000	12	5000	100	750	0.5°~2°30′	5	30	5750×2115×2800	20
12×6000	12	6000	100	750	0.5°~2°30′	5	30	7150×2300×3100	29
16×2500	16	2500	100	750	0.5°~2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	750	0.5°~2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	750	0.5°~2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	750	0.5°~3°	5	22	6000×2300×3000	23
16×6000	16	6000	100	750	0.5°~3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	750	0.5°~3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	750	0.5°~3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	750	0.5°~3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	750	0.5°~3°	4	37	6000×2300×3050	29
20×6000	20	6000	120	750	0.5°~3°	5	37	7150×2450×3280	38
25×2500	25	2500	120	750	0.5°~3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	750	0.5°~3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	750	0.5°~3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	750	0.5°~3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	750	1°~3.5°	3	37	4200×2300×3200	23
40×2500	40	2500	80	750	1°~4°	4

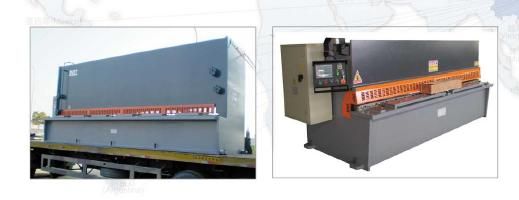

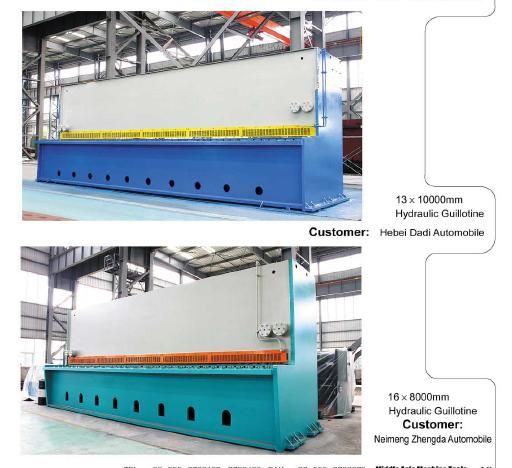

Photoes of our products:
