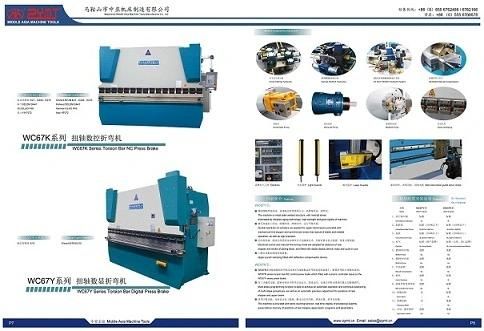

• Model NO.：WC67K Series
• Electrics：Schneider
• Seal Ring：Nok
• Hydraulic Valve：Rexroth
• Pump：Sunny
• Controller：E21
• Mould：Guoling
• Footswitch：Karcon
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462219000
• Production Capacity：3000 Sets,Year

No.Parts NameBrandBrand Location1Main motorSiemensGermany2Backgauge motorDetongShanghai China3Ram motorKongteNanjing China4ElectricsSchneiderFrance5Oil CylinderYuhuaMaanshan China6Seal ringNokJapan7Hydraulic valveRexrothGermany8PumpHangfaShanghai China9ControllerE21Nanjing China10MouldGuolingMaanshan China11Pipe connectorEMBGermany12FootswitchKarconSouth Korea13Ball screwHiwinTaiwan14Controller with moveable armYES15Front and back protection fenceYES16Backgauge with ball screwYES17Backgauge travel500MM18Emergency buttonYES
Other standard equipments:
Segmented upper punch die 1set
Lower die in one piece
Stop fingers 2
Front supporting arms 2
Emergency stop button;
Back, left and right safety fence
Foundation bolts 1set
Toolings 1set (screw driver and spanner)
Manuals and diagram 1book

WC67K Series Technical Parameters:TypeNominal Force
(KN)Worktable Length
(mm)Poles Distance
(mm)Throat Depth
(mm)Slider Travel
(times/min)Max Open
(mm)Power
(kw)40T/2200400220018502301003205.540T/2500400250018502301003205.550T/2500500250018502301003205.563T/2500630250019002501003205.563T/3200630320025602501003205.580T/2500800250019903001003207.580T/3200800320025603201003507.580T/4000800400032003201003507.5100T/25001000250019003201203507.5100T/32001000320026003201504007.5100T/40001000400032003201504007.5125T/320012503200260032015040011125T/400012504000320032015040011160T/320016003200258032020046011160T/400016004000290032020046011160T/500016005000390032020046011160T/600016006000490032020046011200T/320020003200248032020046011200T/400020004000290032020046011200T/500020005000390032020046011200T/600020006000490032020046011250T/320025003200245040025059018.5250T/400025004000290040025059018.5250T/500025005000390040025059018.5250T/600025006000490040025059018.5300T/320030003200245040025059022300T/400030004000290040025059022300T/500030005000390040025059022300T/600030006000490040025059022400T/320040003200240040025059030400T/400040004000290040025059030400T/500040005000390040025059030400T/600040006000490040025059030500T/500050005000390040025059045500T/600050006000490040032059045600T/500060005000290040032059055600T/600060006000490040032059055

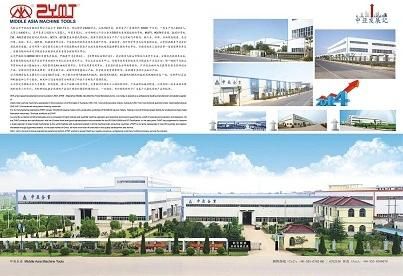

Company Introduction:
1.Maanshan Middle Asia Machine Tools Manufacture Co.,Ltd founded in 2001.
2.Total number of emploee: 500
3.All kinds of sophisticated equipment more than 100 sets.
4.Production plant area:60,000.
5.Whole factory is controlled by ERP-Enterprise Resource Plan.
6.CE/SGS/ISO9001 certification.
We are producing below ranges of machines:
1.NC/CNC Press Brake
2.NC/CNC Shearing Machine
3,Rolling Machine
4.Iron Worker
5.Power Press
6.Hydraulic Press
