• Model NO.：QC12K-6x5000 E200
• Application：Machinery & Hardware
• Type for Cutting Machine：Hydraulic Cutting Machine
• Transport Package：Plastic Cover
• Specification：CE
• Trademark：ZYMT
• Origin：China
• HS Code：8462299000
• Production Capacity：3000 Sets,Year

Basic Info.

Model NO. QC12K-6x5000 E200 Application Machinery & Hardware Type for Cutting Machine Hydraulic Cutting Machine Transport Package Plastic Cover Specification CE Trademark ZYMT Origin China HS Code 8462299000 Production Capacity 3000 Sets/Year

Product Description

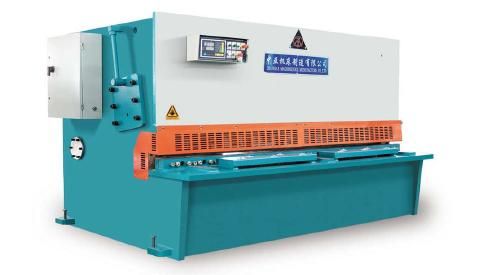

Hydraulic Swing Beam Shearing Machine(QC12K-6x5000):

Sheet plate welded structure is adopted, with hydraulic transmission and accumulator return, typical of an easy operation, reliable performance, and nice appearance, fitted with digital display system.

QC12K Features
The machine is fitted with CNC controller special for shearing machines.
The position of rear stopper is displayed in real-time manner.
Multi-step programming function is available and the rear stopper is able for automatic operation and continuous positioning, to achieve an automatic adjustment for position of rear stopper.
It is provided with counting function for shearing, to display the shearing numbers in a real-time manner, able for power-failure memory of position of rear stopper, procedures, and parameters.
Backgauge with precision ball screw and linear guide, to ensure the positioning precision, so that bring the higher precision prcsessing.


Standard Description:

Model	Mild Steel (450MPA)	Cutting Length (mm)	Depth Of Throat (mm)	Back Gauge Range(mm)	Rake Angle Adjustment	Strokes Per Minute	Main Motor (kw)	Dimensions L×W×H  (mm)	Weight (t)
4×2000	4	2000	80	750	0.5°~2°	14	5.5	2600×1680×1750	3.8
4×2500	4	2000	80	750	0.5°~2°	14	5.5	3125×1750×1765	4.5
6×2500	6	2500	80	750	0.5°~1°30′	14	7.5	3100×1725×1900	5.3
6×3200	6	3200	80	750	0.5°~1°30′	12	7.5	3935×1840×1995	6.5
6×4000	6	4000	80	750	0.5°~1°30′	10	7.5	4650×1840×2100	8.5
6×5000	6	5000	80	750	0.5°~1°30′	8	7.5	5650×2050×2400	10.5
6×6000	6	6000	80	750	0.5°~1°30′	8	7.5	6650×1980×2380	15.2
8×2500	8	6000	80	750	0.5°~2°	14	7.5	3135×1840×2075	6
8×3200	8	3200	80	750	0.5°~2°	12	7.5	3850×1990×2050	6.8
8×4000	8	4000	80	750	0.5°~2°	10	7.5	4650×1890×2075	9
8×5000	8	5000	80	750	0.5°~2°	7	15	5650×2050×2400	12.5
8×6000	8	6000	100	750	0.5°~2°	7	15	6805×2115×2715	19.8
10×2500	10	2500	100	750	0.5°~2°30′	10	15	3195×1915×2205	8
10×3200	10	3200	100	750	0.5°~2°30′	8	15	3895×1900×2235	8.8
10×4000	10	4000	100	750	0.5°~2°30′	6	15	4695×1970×2270	11
10×5000	10	5000	100	750	0.5°~2°30′	5	15	5700×2115×2715	16
10×6000	10	6000	100	750	0.5°~2°30′	5	15	6905×2115×2800	22
12×2500	12	2500	100	750	0.5°~2°30′	10	15	3195×2000×2210	8.3
12×3200	12	3200	100	750	0.5°~2°30′	8	15	3895×1950×2240	9.2
12×4000	12	4000	100	750	0.5°~2°30′	6	15	4710×1950×2450	13
12×5000	12	5000	100	750	0.5°~2°30′	5	30	5750×2115×2800	20
12×6000	12	6000	100	750	0.5°~2°30′	5	30	7150×2300×3100	29
16×2500	16	2500	100	750	0.5°~2°30′	8	15	3215×1970×2340	8.7
16×3200	16	3200	100	750	0.5°~2°30′	7	15	3915×1970×2455	11
16×4000	16	4000	100	750	0.5°~2°30′	6	15	4715×2010×2590	15
16×5000	16	5000	100	750	0.5°~3°	5	22	6000×2300×3000	23
16×6000	16	6000	100	750	0.5°~3°	5	37	7250×2400×3100	36
20×2500	20	2500	100	750	0.5°~3°	6	22	3235×2020×2465	10.5
20×3200	20	3200	120	750	0.5°~3°	5	30	4150×2065×2755	18
20×4000	20	4000	120	750	0.5°~3°	4	30	4955×2125×2885	21
20×5000	20	5000	120	750	0.5°~3°	4	37	6000×2300×3050	29
20×6000	20	6000	120	750	0.5°~3°	5	37	7150×2450×3280	38
25×2500	25	2500	120	750	0.5°~3.5°	5	37	3465×2130×2710	15
25×3200	25	3200	120	750	0.5°~3.5°	5	37	4120×2200×3000	21
25×4000	25	4000	120	750	0.5°~3.5°	4	37	4950×2200×3150	26
30×2500	30	2500	120	750	0.5°~3.5°	4	37	3465×2170×2770	16
30×3200	30	3200	120	750	1°~3.5°	3	37	4200×2300×3200	23
40×2500	40	2500	80	750	1°~4°	4

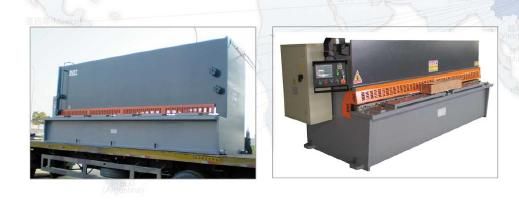

Photoes of our products:

Company Information:



Packaging & Shipping

(1)before packing,the machine tool will be testing for 48 hours to ensure all the equipment is 100% qualitied.
(2)before loading,stable package,professional and skilled loader reduce damage of product during transport.
(3)after loading,our professional documentary staff will follow the order till the product departs from port.

Our Services

1. Shearing blades and accessories-Customized to your specifications In our shearing blades, our focus is on first-class, practical, well-thought-out upper and lower tools. Our tools offer solutions to your application cases - even for complex technical ones.

2. Service package
Basic:we offer you rapid troubleshooting through telephone support and costs for on-site missions are reduced.
Special:Engineers available to service machinery overseas for the necessary maintenance.
Partner:Our located dealers or customers who sell or use our machines are fully behind you,they are our friendly partner and supply good advice to you.

3. Technical Service(After-sale service)
 Installation and start-up(Available for complex and big machines or if you have demand)
FAQ
If you want to get more information,you can contact me via:

TEL:86-0555-3708671
Web: http://leolivia.en.made-in-china.com
