• Model NO.：GT-WB-60-10A
• Type：Cnc Bending Machine
• Name：CNC 3D Wire Bending Machine
• Model Number：Gt-Wb-60-10A
• Wire Diameter1：600n,Sq.mm. 2.0mm-6.0mm
• Wire Diameter2：1900n,Sq.mm. 2.0mm-4.0mm
• Feed Roller：3 Pairs
• CNC Axis：10
• Application：Auto Industry Area
• Transport Package：Standard Fumigated Wooden Case
• Specification：3.0M(L)*1.2M(W)*1.4M(H)
• Trademark：WG
• Origin：China
• HS Code：8462219000
• Production Capacity：10 Set,Sets Per Month

Basic Info.

Model NO. GT-WB-60-10A Type Cnc Bending Machine Name CNC 3D Wire Bending Machine Model Number Gt-Wb-60-10A Wire Diameter1 600n/Sq.mm. 2.0mm-6.0mm Wire Diameter2 1900n/Sq.mm. 2.0mm-4.0mm Feed Roller 3 Pairs CNC Axis 10 Application Auto Industry Area Transport Package Standard Fumigated Wooden Case Specification 3.0M(L)*1.2M(W)*1.4M(H) Trademark WG Origin China HS Code 8462219000 Production Capacity 10 Set/Sets Per Month

Product Description

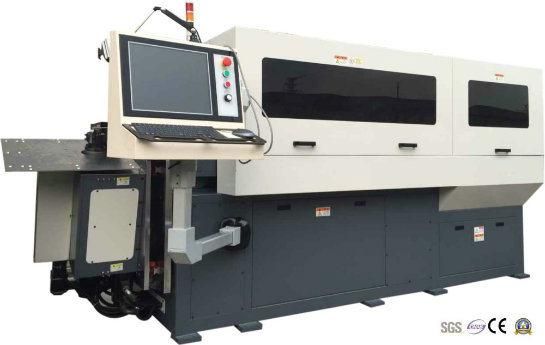

CNC 3D wire bendinging machine with competitive factory price

Product Description:

Cnc wire bending machine is to expertly produce kinds of wire forms in 3D fully automatically.
It is suitable for wire size from 2.0mm up to 6.0mm.


Technical parameter:

wire diameter	600N/mm² 2.0mm-6.0mm1900N/mm² 2.0mm-4.0mm
feed roller	3 pairs
twisting wrie angel	0°- unlimited
platform lifting height	+50mm-170mm
twisting head lifting height	+20mm-100mm
out twisting lifting heigh	+20mm-55mm
left to right moving range	Left:80mm Right:40mm
Feeding front and back moving range	Front:300mm Back:300mm
CNC axis	10
Machine size	3.0M(L)*1.2M(W)*1.4M(H)
Weight	3200kg

 Product range:

        2D/3D Wire bending machinery for wire, strip and tube material, spring making machines, CNC and mechanically controlled; ring and buckle making machine; machines for the production of strapping buckles, strapping seals, machines for the production of bucket handles with or without end stamping and plastic cover; machines for the production of paint roller with or without lips stamping and plastic over; wire straightening and cutting-off machines; Packaging equipment include cord strapping production line, hot melt strapping production line, PET strapping production line and woven strap production line, and other customer specially tailor made bending machinery. All of our machine was CE certified.

   We will try our best to provide our client good quality machine with very competitive price and best service. Should you have any enquiries please feel free to contact us at any time.
