• Model NO.：GT-WB-100-8A
• Type：Cnc Bending Machine
• Product Name：8 Axes Automatic CNC 3D Wire Bending Machine
• 3D CNC Wire Froming：2.0-6.0mm Iron or Steel Wire
• Color：Gray and White
• Axes：8
• Weight：4800kg
• Transport Package：Standard Export Wooden Case
• Specification：CE, SGS
• Trademark：WG
• Origin：China
• HS Code：846221900
• Production Capacity：100 Set Per Year

Basic Info.

Model NO. GT-WB-100-8A Type Cnc Bending Machine Product Name 8 Axes Automatic CNC 3D Wire Bending Machine 3D CNC Wire Froming 2.0-6.0mm Iron or Steel Wire Color Gray and White Axes 8 Weight 4800kg Transport Package Standard Export Wooden Case Specification CE, SGS Trademark WG Origin China HS Code 846221900 Production Capacity 100 Set Per Year

Product Description

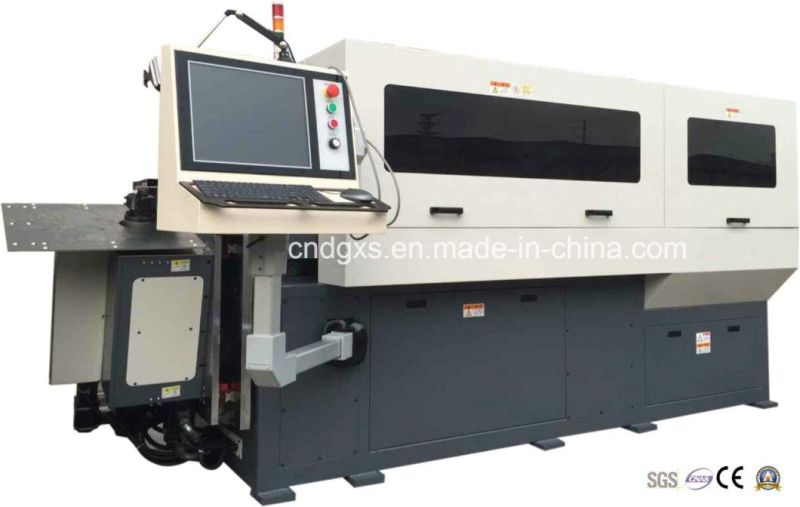

8 Axes Automatic CNC 3D Wire Bending Machine

Product description
CNC wire bending machine
Production description :CNC 3D wire bending machine  is to produce kinds of wire forms expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and screen display with Taiwan controller.

Advantages & Features:
1.3-4 pairs feeding roller , feeding motor fixed on the bottom base, so as to decrease the feeding box weight, that wire rotating is more fast and light , turning angle is more precise and stable.
2.Twisting head is designed in copper tube transport, more stable and stronger than bearing transfer

Technical parameters


Wire size(mm)	4.0-10.0
axis	8
feeding roller number	4 pairs
wire turning angle	unlimited
platform lifting height	25-120mm
twisting head lift height	25-180mm
distance between cutting is and bending head	305mm
distance between bending head and machine body	900mm
out twisting lifting height	/
left to right moving range	/
Feeding front and back moving range	/
axis	7
machine size(mm)	3800x1200x1500
machine weight(kg)	4000

8 Axes Automatic CNC 3D Wire Bending Machine

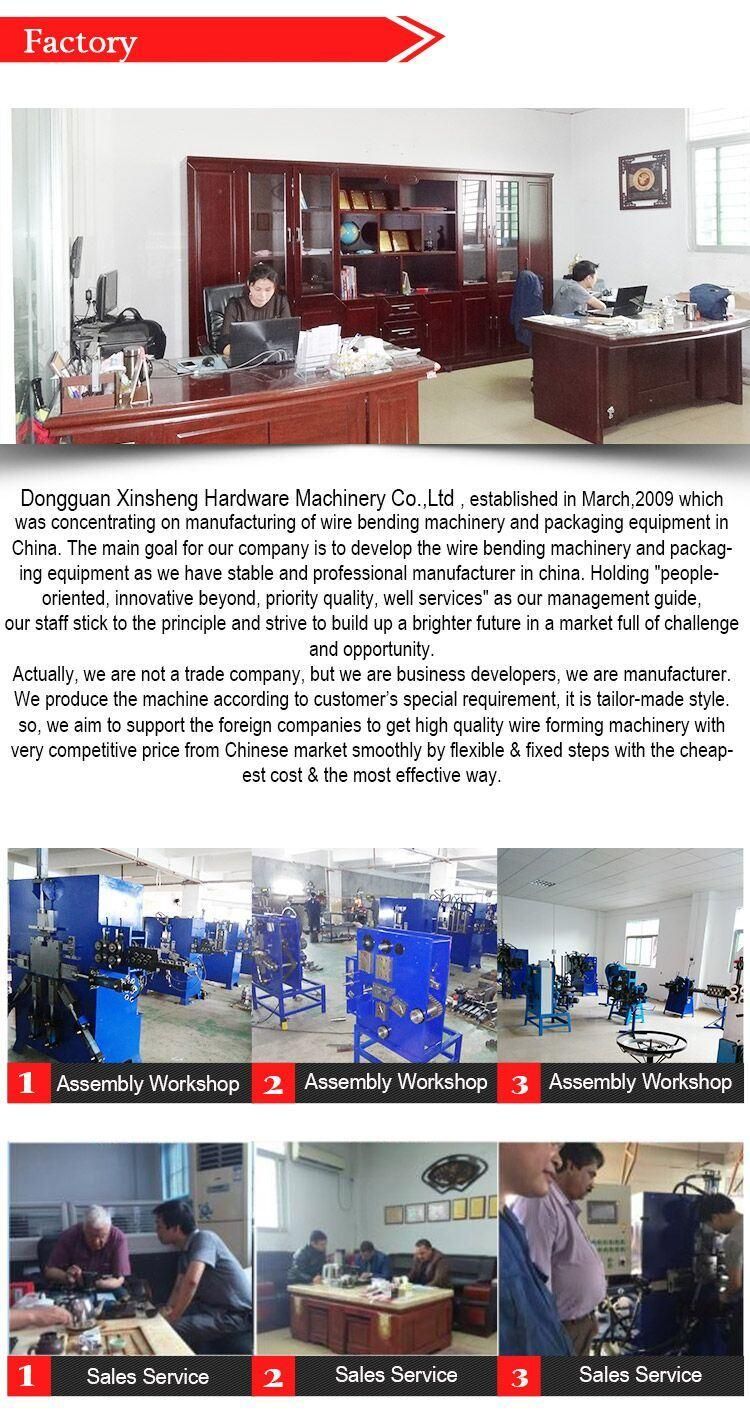

Dongguan Xinsheng Hardware & Machinery Co., Ltd.

We are a professional and historical wire forming machinery manufacturer from Dongguan, China.
All our products have adopted CE certification, SGS certification and ISO 9001:2008,
With wide selection, competitive price and good quality, selling well all over the world.
Besides, all the machines sold out enjoy one year warranty and full life mechanical maintenance.
At your service anytime~
