• Model NO.：GW40
• Motor Spec：3kw,380V
• Motor Speed：1440t,Min
• Dimension：750× 700× 710mm
• Net Weight/Gross Weight：240kgs,260kgs
• Packing Size：790× 790× 880mm
• Brand：China Coal
• Place of Origin：China
• Keywords：Angle Bending Machine
• Transport Package：Container
• Trademark：China Coal
• Origin：Shandong China
• HS Code：85098010
• Production Capacity：1000sets,Month

Basic Info.

Model NO. GW40 Motor Spec 3kw/380V Motor Speed 1440t/Min Dimension 750× 700× 710mm Net Weight/Gross Weight 240kgs/260kgs Packing Size 790× 790× 880mm Brand China Coal Place of Origin China Keywords Angle Bending Machine Transport Package Container Trademark China Coal Origin Shandong China HS Code 85098010 Production Capacity 1000sets/Month

Product Description

Introduction Of Gw Series Angle Bending Machine

1.Angle bending machine adopt thicken top plate and high ridigity disk of iron for durable quality.
2.International standard cooper motor with utra-high hardness accessory and fender.
3.Steel wire bender equiped with stop switch device when machine is fault can stop the power immediately.
4.Advanced design,reliable quality compact structure and stable performance
5.Closed trasimission box with low noise equipped with high speed national standard motor.zmwm07

Feature:
1. Adopt 10mm thicken top plate and high rigidity disk of iron, more durable.
2. Equipped with international standard copper motor.
3. Equipped with ultra-high hardness accessory and adjustable fender.
4. Equipped with stop switch, the machine can stop immediately,ensure the safety of the workers.
5. Adopt 16mm thick top plate,high rigidity disk,adjustable stylobate,the bending angle of more efficient.
6.Equipped with international standard copper wire brake motor,narrowing inertance when the machine stops and bending angle is more accurate.
7. Pin-type positioning disk,it can adjust angle from 0-360 degree,more easy and convenient

Parameter Of Gw Series Angle Bending Machine



Model	GW40	GW50
1. Bending round steel diameter	6-40mm	6-50mm
2.Grade thread screw steel diameter	6-32mm	6-42mm
3. Working plate diameter spec	320mm	320mm
4. Main shaft speed	8-15r/min	8-15r/min
5. Motor spec	3KW/380V	4KW/380V
6. Motor speed	1440t/min	1440t/min
7. Dimension	750× 700× 710mm	1060× 850× 730mm
8. Net weight/Gross weight	240kgs/260kgs	360kgs/380kgs
9. packing size	790× 790× 880mm	1100× 900× 900mm

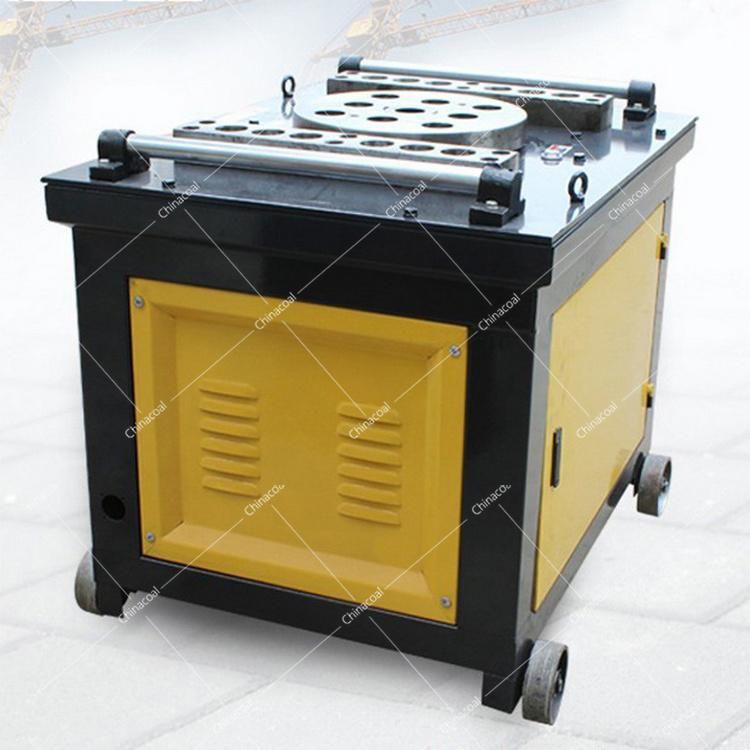

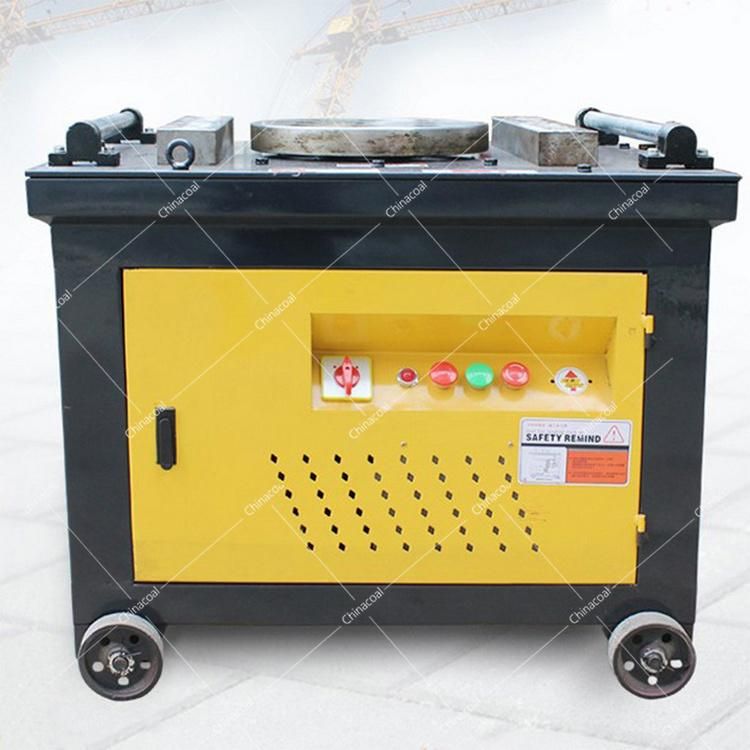

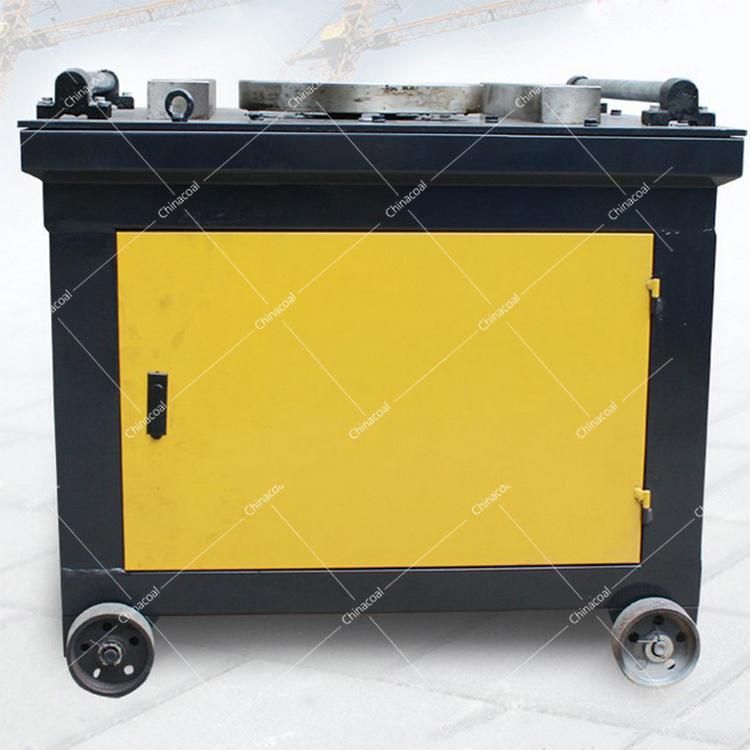

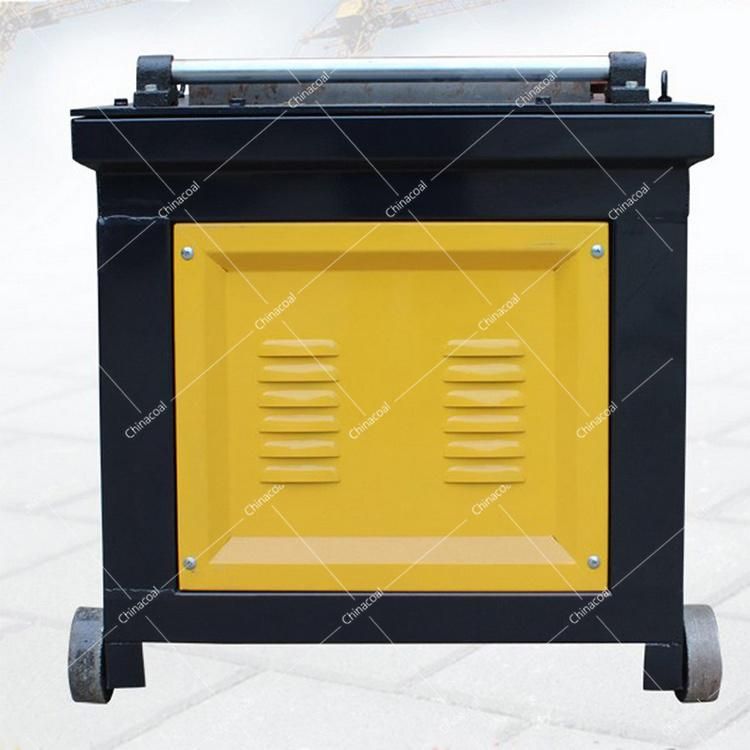

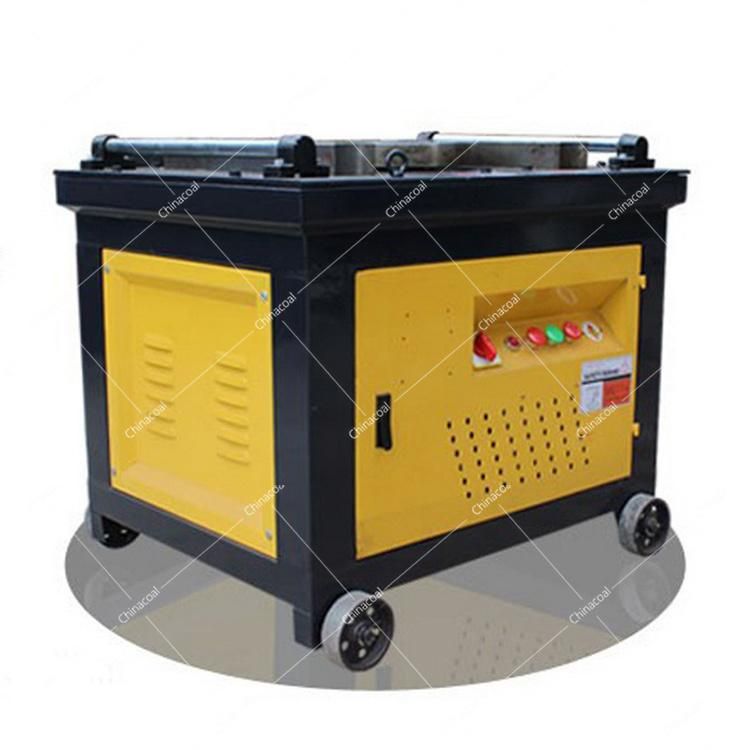

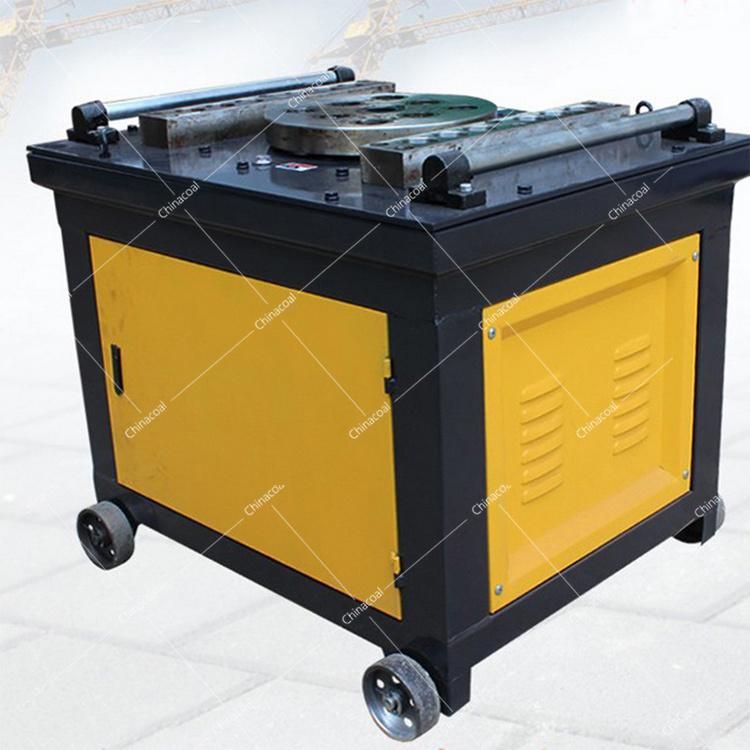

Photos Of Gw Series Angle Bending Machine
