• Model NO.：WC67Y-160,250
• Guarantee Time：First Year Free, Lifetime Services
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Transport Package：Sea Worthy Fixed by Wire Rope, Woden Blocks
• Specification：8 tons
• Trademark：WILLING INT′L
• Origin：Zhengjiang Hangzhou, China
• HS Code：84552210
• Production Capacity：80sets,Year

Basic Info.

Model NO. WC67Y-160/250 Guarantee Time First Year Free, Lifetime Services After-Sales Service Provided Engineers Available to Service Machinery Overseas Transport Package Sea Worthy Fixed by Wire Rope, Woden Blocks Specification 8 tons Trademark WILLING INT′L Origin Zhengjiang Hangzhou, China HS Code 84552210 Production Capacity 80sets/Year

Product Description

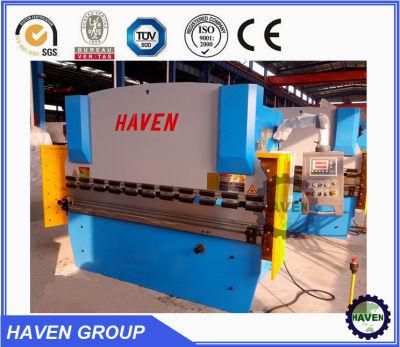

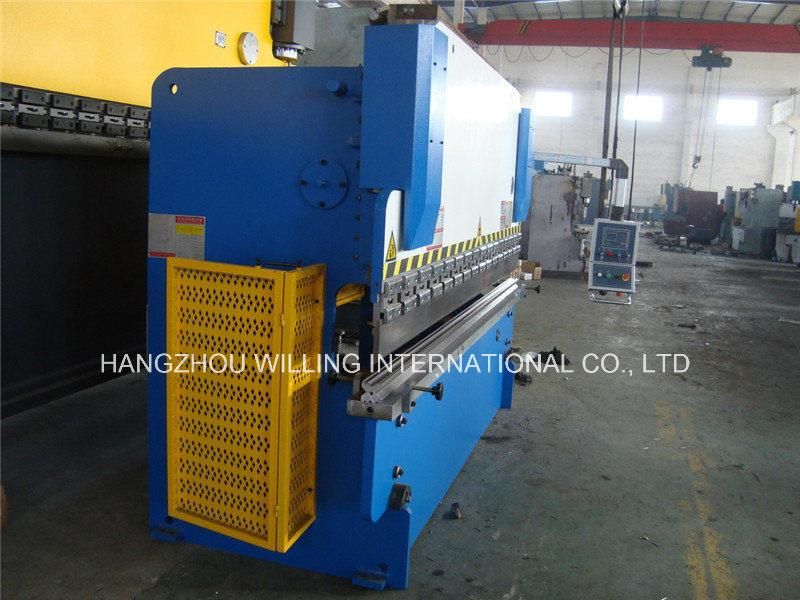

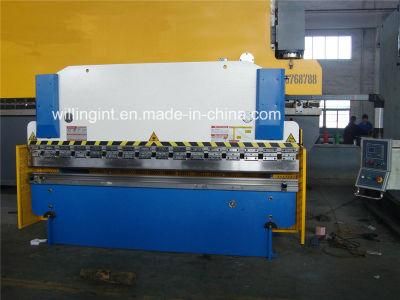

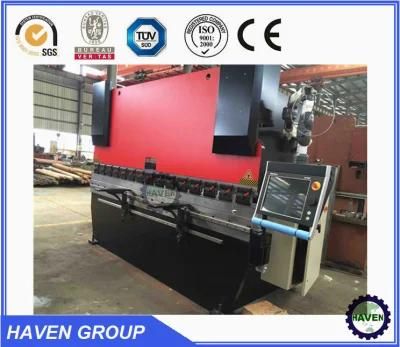

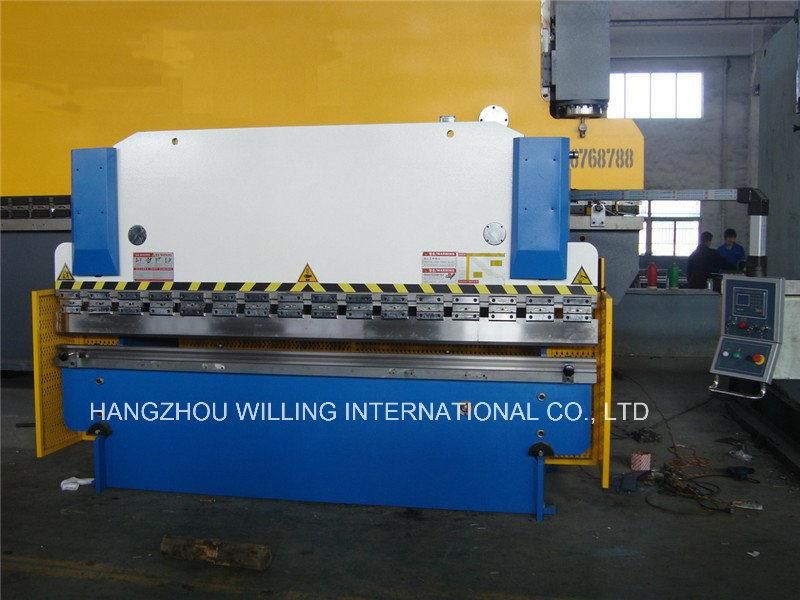

 Hydraulic Steel Metal Plate Bending Machine

             Technical Parameters

Model	Nominal Pressure	Length of Table	Post Distance	Throat Depth	Stroke Range	Open Height	Main Power	Weight	Dimension

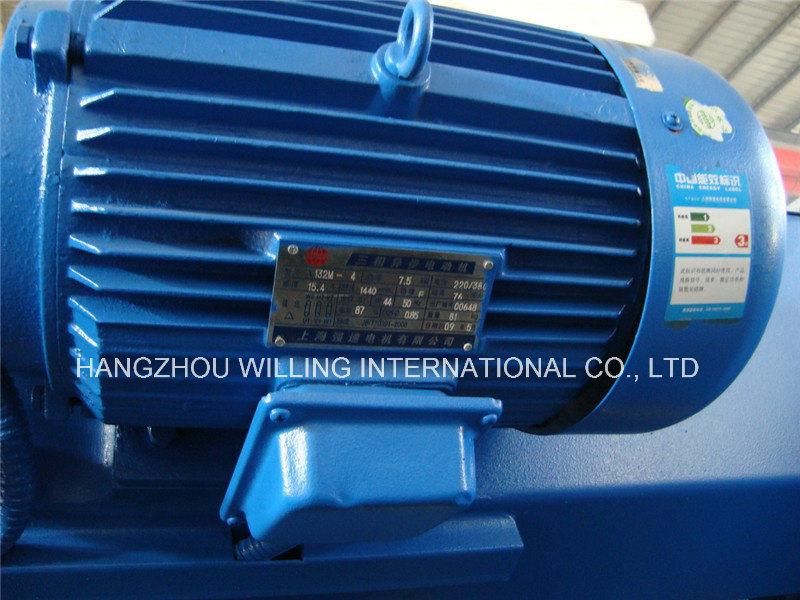

160/2500, double cylinders	1600 KN	2500	2360	320	120/8	360	7.5	10 tons	3.0*1.9*2.7m

Machine Tool Frame and Function
1. Machine tools are mainly composted by the rack, working table, slide, and the fuel tank. Use of steel plate welded structure, after a high-frequency vibration to eliminate stress and ensure the overall accuracy of machine tools, with excellent stiffness, excellent anti-distortion, anti-tilt capability.
2. We introduce synchronous slider, synchronous torque axis, and built-in cylinder block, they're stable and reliable.
3. Upper die with oblique wedge and deflection compensation device.

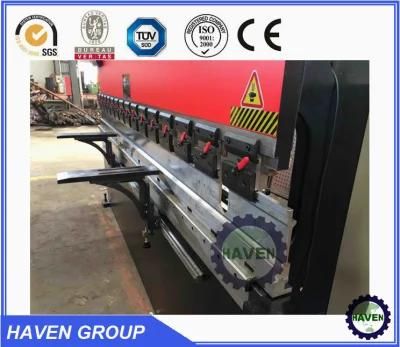

4. Backgauge and slide stroke are electric adjustment, manual fine-tuning, and digital display.



Regular Configuration
 1. Main body of machine               1 set;
 2. Upper and lower dies/moulds         1 full set(2 pieces);
 3. Accessories and Consumables        1 full set;
 4. User's instruction                  1 full set;
 5. Product certificate                  1 full set;
 6. Packing list                       1 piece.

Packaging & Shipping
1.One 20ft container for loading one set machine with manual decoiler;
2.The whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3.Spare parts and some small parts packed in plastic tooling box;

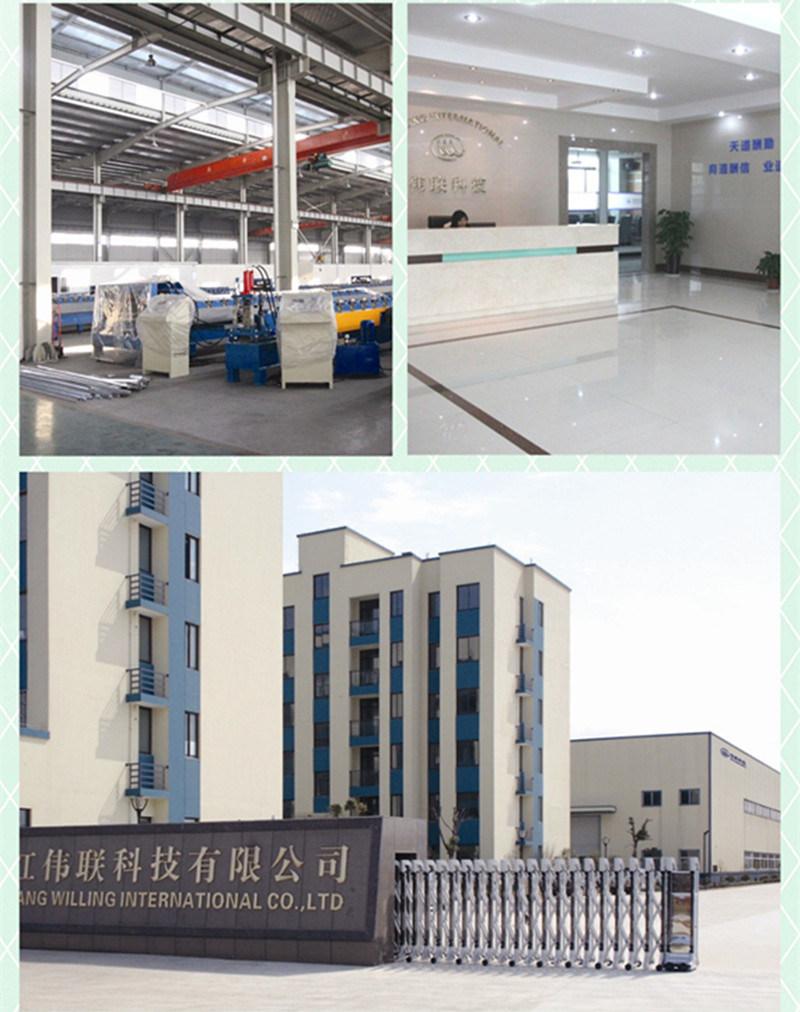

4.All Components Fixed by steel wire with Container.Our Company


FAQ

1. Q:Are you a manufacturer?
2. A:Yes absolutely. Welcome a lot for your visiting to us.

3. Q:What's the delivery time?

   A:Normaly will take 60days

4. Q:Do you have after-sale support?

   A:Yes, we're always here for giving you advice and support for technical details since we have senior technician.

5. Q:Is there quality control when manufacturing the lines?

   A:Yes, we have a group of team who will be responsible for quality control from laying off the raw material, processing the rollers and the other parts, make treatment on the roller surface and shaft, assembling, testing and packaging.

6. Q:What's your strength comparing to the other supplier?

   A:We'll supplying you the best quality and service. We'll give you good advise beyond your requirements. The lines are easily for installation and with low mantenance requirements.
