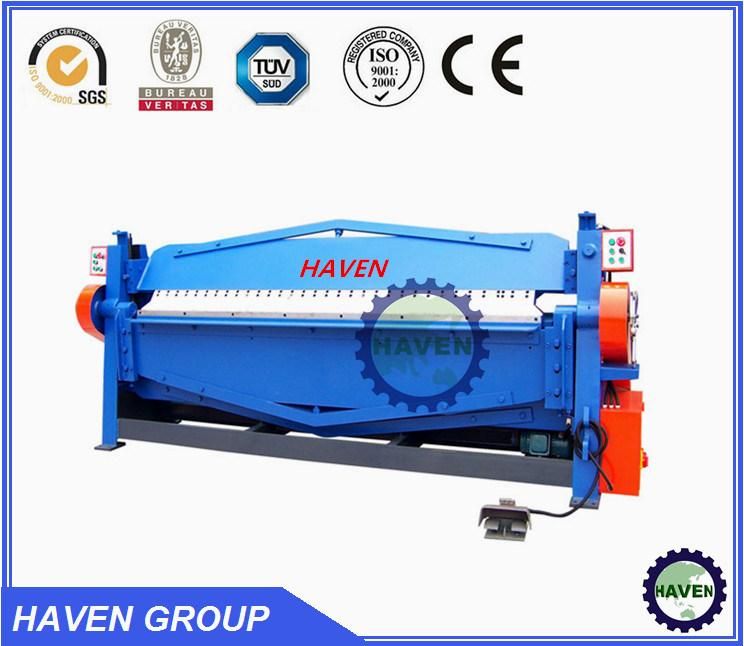

W62Y 3*2500 Hydraulic Sheet Metal Folding machine
Shaanxi HAVEN Equipment Co., Ltd.- Waterproof Rating：IPX-1
- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Manual
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Base Info
- Model NO.：W62Y-3X2500
- Type：Press Brake
- Control：Manual
- Application：Machinery & Hardware, Textiles,
- Type for Fold-bending Machine：Manual Fold-bend Machine
- Type for Cutting Machine：Mechanical Type
- Transport Package：Veneer Case
- Specification：CE
- Trademark：HAVEN
- Origin：China
- HS Code：8462
- Production Capacity：300 Units,Month
Description
Basic Info.
Model NO. W62Y-3X2500 Type Press Brake Control Manual Application Machinery & Hardware, Textiles, Type for Fold-bending Machine Manual Fold-bend Machine Type for Cutting Machine Mechanical Type Transport Package Veneer Case Specification CE Trademark HAVEN Origin China HS Code 8462 Production Capacity 300 Units/MonthProduct Description
W62Y 3*2500 Hydraulic Sheet Metal Folding machine
Main functions:
Incorporates all the outstanding features of other popular hand press brake;
Both upper and lower movements can be adjusted;
Process workpiece according to the customer's requirement;
Folds sheets into a box/pan configuration;
| Model | W62Y-3x2500 | W62Y-4.5x2500 | W62Y-4x3100 | W62Y-5x2000 |
| Nominal pressure KN | 1000 | 1000 | 1000 | 1000 |
| Strokes Min-1 | 14 | 14 | 14 | 14 |
| Throat depth mm | 200 | 200 | 200 | 200 |
| Folding length mm | 2500 | 2500 | 3100 | 2000 |
| Folding thickness mm | 0.5-3 | 4.5 | 4 | 0.5-5 |
| Max angle of bending beam | 110 | 110 | 110 | 0-125 |
| Max lifting height of the upper beam | 200 | 200 | 200 | 200 |
| Motor power | 5.5 | 5.5 | 5.5 | 5.5 |
| Net weight kg | 3500 | 3600 | 4300 | 2850 |
| Dimension cm | 330x100x140 | 360x106x200 | 420x106x200 | 310x106x200 |
| Model No. | Working Table Length(mm) | Folding Thickness(mm) | Evolving angle of the ending | Max rift of the upper beam(mm) | Motor Power | Net Weight (kg) | PackingSize(cm) |
| W62K-3x2500 | 2500 | 3 | 120° | 110 | 4 | 2750 | 370x164x165 |
| W62K-3x3200 | 3200 | 3 | 120° | 110 | 4 | 3350 | 440x164x165 |
| W62K-4x2500 | 2500 | 4 | 120° | 110 | 5.5 | 3250 | 375x164x165 |
| W62K-4x3200 | 3200 | 4 | 120° | 110 | 5.5 | 3950 | 445x164x165 |
