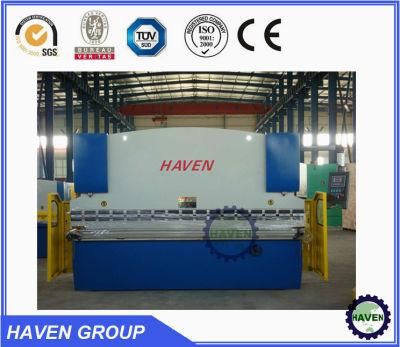

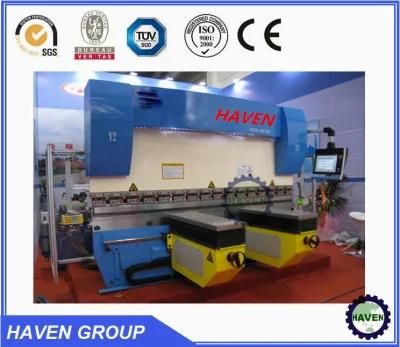

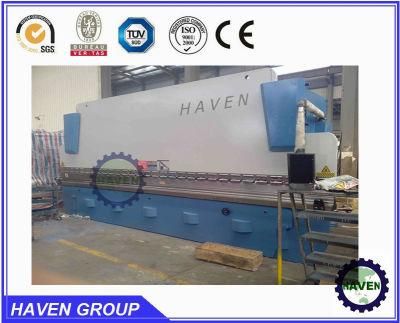

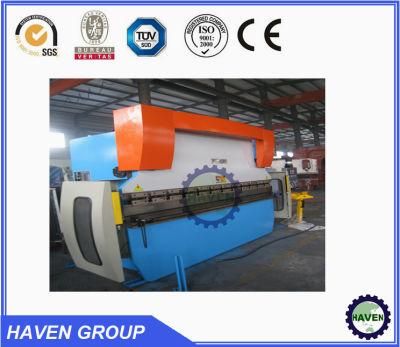

Ceiling folding tool hydraulic folding machine / hydraulic folder
Shaanxi HAVEN Equipment Co., Ltd.- Warranty：1-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Manual
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Press Brake
Base Info
- Model NO.：W62K-3X3200
- Control：Manual
- Application：Machinery & Hardware, Textiles,
- Type for Fold-bending Machine：Manual Fold-bend Machine
- Type for Cutting Machine：Mechanical Type
- Transport Package：Veneer Case
- Specification：CE
- Trademark：HAVEN
- Origin：China
- HS Code：8462
- Production Capacity：300 Units,Month
Description
ModelCapacity N.W./G.W.(kgs) Packing size (cm) Width(m
| Model | W62Y-3x2500 | W62Y-4.5x2500 | W62Y-4x3100 | W62Y-5x2000 |
| Nominal pressure KN | 1000 | 1000 | 1000 | 1000 |
| Strokes Min-1 | 14 | 14 | 14 | 14 |
| Throat depth mm | 200 | 200 | 200 | 200 |
| Folding length mm | 2500 | 2500 | 3100 | 2000 |
| Folding thickness mm | 0.5-3 | 4.5 | 4 | 0.5-5 |
| Max angle of bending beam | 110 | 110 | 110 | 0-125 |
| Max lifting height of the upper beam | 200 | 200 | 200 | 200 |
| Motor power | 5.5 | 5.5 | 5.5 | 5.5 |
| Net weight kg | 3500 | 3600 | 4300 | 2850 |
| Dimension cm | 330x100x140 | 360x106x200 | 420x106x200 | 310x106x200 |
