• Model NO.：ZX-1625VA
• Application：Paper, Plastic, Leather, Fabric
• Power Source：Electric
• Layout：Horizontal
• Item：Multi Layer Fabric CNC Cutter Cutting Plotter
• Working Area：1600*2500mm
• Rated Power：11kw
• Max. Cutting Speed：1200mm,S
• Cutting Thickness：0.1-20mm
• Cutting Accuracy：0.1mm
• Materials Fixed Model：Vacuum Adsorption
• Format Supported：Dxf, Plt, etc
• Weight：980kg
• Transport Package：Export Wooden Case
• Specification：3300x2250x1250mm
• Trademark：ZHUOXING
• Origin：Jinan, Shandong, China
• HS Code：8479899990
• Production Capacity：100 Sets,Month

Basic Info.

Model NO. ZX-1625VA Application Paper, Plastic, Leather, Fabric Power Source Electric Layout Horizontal Item Multi Layer Fabric CNC Cutter Cutting Plotter Working Area 1600*2500mm Rated Power 11kw Max. Cutting Speed 1200mm/S Cutting Thickness 0.1-20mm Cutting Accuracy 0.1mm Materials Fixed Model Vacuum Adsorption Format Supported Dxf, Plt, etc Weight 980kg Transport Package Export Wooden Case Specification 3300x2250x1250mm Trademark ZHUOXING Origin Jinan, Shandong, China HS Code 8479899990 Production Capacity 100 Sets/Month

Product Description

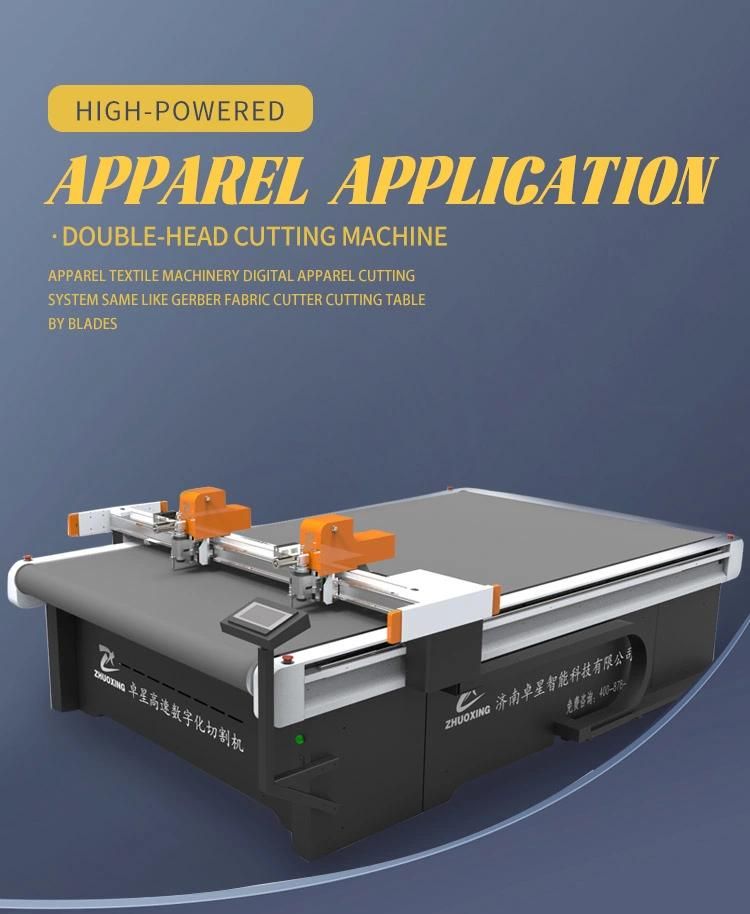

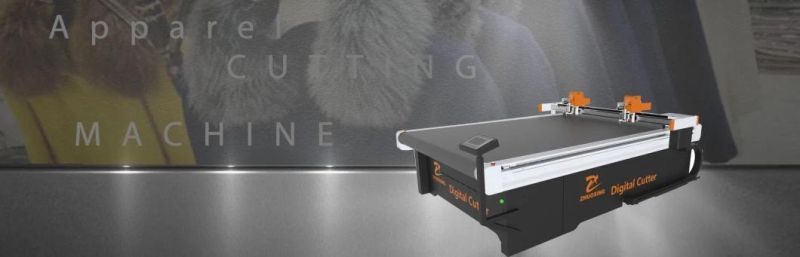

Multi Layer Fabric CNC Cutter Fabric Cutting Plotter

Model	ZX-1625VA
Working Area	(W*L) 1600*2500mm
Rated Power	11kw
Max. Cutting Speed	1200mm/s
No-load Speed	1500mm/s
Cutting Thickness	0.1-20mm (depending on the materials)
Cutting Accuracy	±0.1mm
Transmission Interface	Ethernet

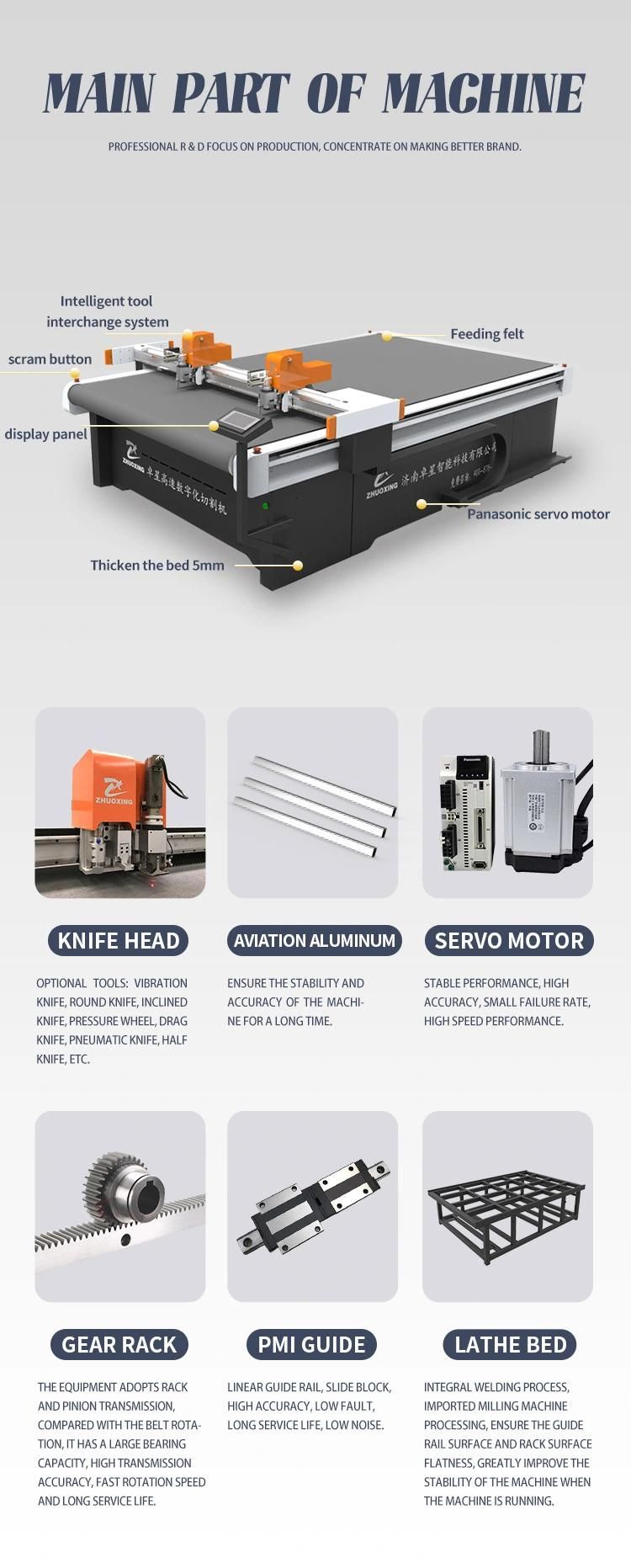

Drive System	Servo motor, linear guide rail, rack, and pinion
Material Fixed Mode	Vacuum adsorption
Format Supported	DXF, PLT, etc
Operation Property	Online/offline operation, continuous cutting with high efficiency, 7*24 hours with zero downtime
Safety Device	An infrared sensing device, 4 emergency stop buttons, intelligent anti-collision device
Power Supply	AC 110V/220V/380V, 50/60Hz, single/three-phase
Dimension	3300x2250x1250mm
Weight	980kg
