P6 Multi Axis CNC Wire Bending Machine Gt25-10
Dongguan Xinsheng Hardware Machinery Co., Ltd.- After-sales Service：Engineers Available to Service Machinery on Line
- Warranty：1-year
- Condition：New
- Certification：CE, CE
- Automation：Automatic
- Machine Type：Coiling Bending Machine
Base Info
- Model NO.：GT25-10
- Raw Material：Steel Bar
- Power：CNC
- Material / Metal Processed：Stainless Steel
- Voltage：220V,380V,440V,415V,Customized
- After-Sales Service Provided：Field Installation, Commissioning and Training
- Control System：CNC Control
- Extra Services：Cut to Length
- Advantage：Multiple Function
- Machine Name：CNC Wire Bending Tool Bending Machine
- Transport Package：Standard Export Box
- Trademark：WG
- Origin：Guangdong, China (Mainland)
Description
Basic Info.
Model NO. GT25-10 Raw Material Steel Bar Power CNC Material / Metal Processed Stainless Steel Voltage 220V/380V/440V/415V/Customized After-Sales Service Provided Field Installation, Commissioning and Training Control System CNC Control Extra Services Cut to Length Advantage Multiple Function Machine Name CNC Wire Bending Tool Bending Machine Transport Package Standard Export Box Trademark WG Origin Guangdong, China (Mainland)Product Description
Technical Parameter| Model | GT25-10 | |
| Line Diameter | 0.2-2.5 | mm |
| Max Line Feeding Value | 10000 | mm |
| Min Line Feeding Value | 0.01 | mm |
| Max Line Feeding Speed | 120 | m/min |
| Max Line Length | Unlimited | |

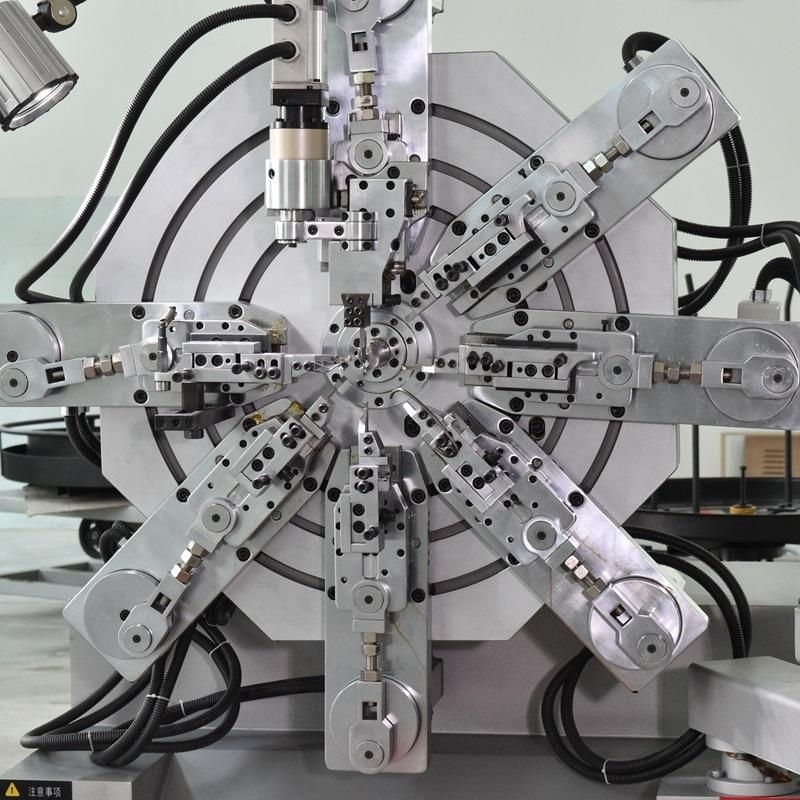

| Axis | 10 | |
| Total Power of Servo Motors | 10 | kw |
| Input Power | 380/50/3 | v/hz/ph |
| Control system | Made in Taiwan | |
| Program Storage | 3000 | plus |

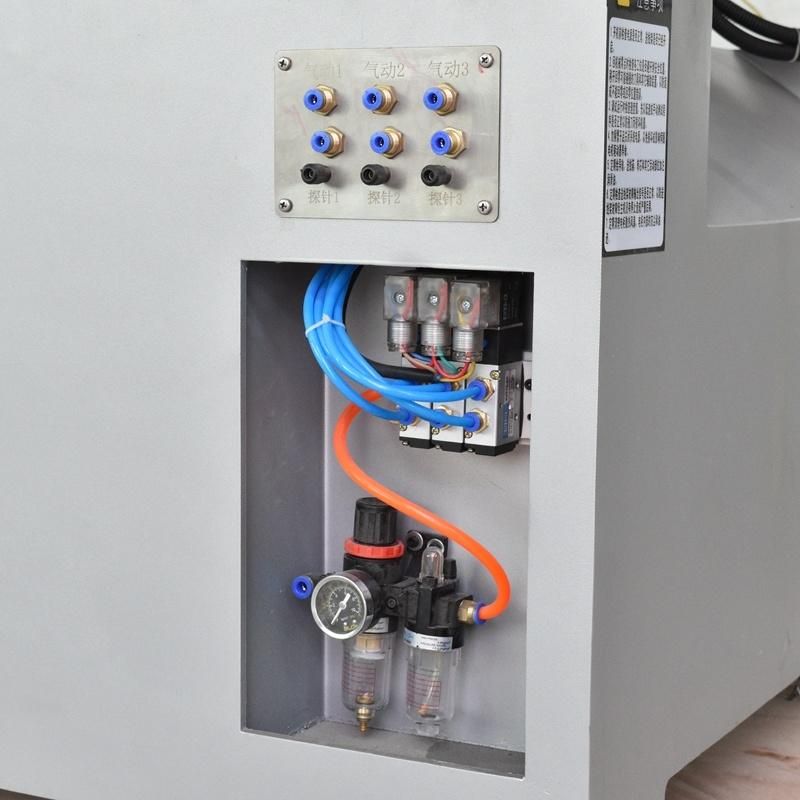

| Air Pressure | 5~6 | kg/cm2 |
| Probe Number | 3 | |
| Overall length | 1250 | mm |
| Overall width | 1030 | mm |
| Overall height | 1670 | mm |
| Weight | 980 | kg |
SPECIFICATIONS:
1) Adopt Japanese Panasonic servo motor, German ROUIST Auto reducer, and Taiwan controlling screen, the machine works in high precision with long work lifetime.
2) Adopts camless design, machine adjustment is 50% faster than the spring forming machinery with cams design, at the same time maintain the stableness.
3) Wire feeding is stable and precise.
4) Technical design is much better than ordinary 3d wire bending machine.

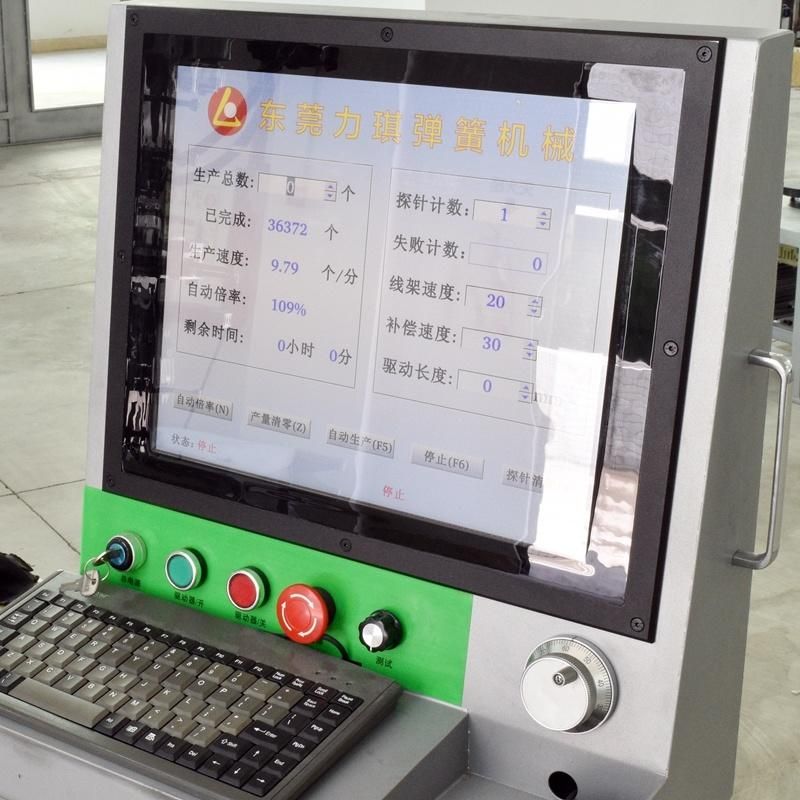

5) Bilingual operating interface(English optional), easy to operate.
Our Service Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our factory.
After-Sales Service
* Training how to install and use the machine.
* Engineers available to service machinery overseas.
