• Model NO.：QC12Y-6X4000
• Controller：MD11 Nc
• Max Cutting Thickness：6mm
• Max Cutting Length：3200mm
• Transport Package：Steel Fixed
• Specification：6*3200
• Trademark：ZDMT
• Origin：China

Basic Info.

Model NO. QC12Y-6X4000 Controller MD11 Nc Max Cutting Thickness 6mm Max Cutting Length 3200mm Transport Package Steel Fixed Specification 6*3200 Trademark ZDMT Origin China

Product Description

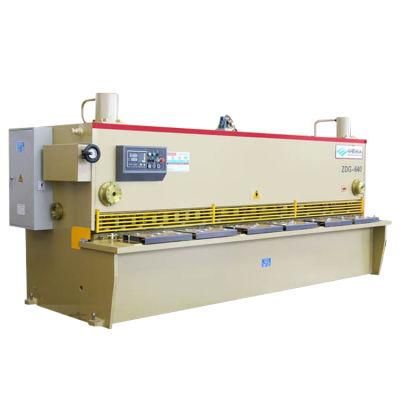

ZDG-632 (QC11Y-6*3200) Hydraulic Guillotine Shear Machine

Main functions and features :

· Steel welded structure with stress-free.

· Three guide trolleys enable accurate movement and fine shearing results.

· Adjustable rake angle to minimize deformation of sheared plate.

· Swing away backgauge function for cutting longer sheets.

· Both upper blade and lower blade has 4 cutting edge for long lifespan of using.

· With MD11 simple CNC controller,to improve the shear performance.

Related configuration with details :

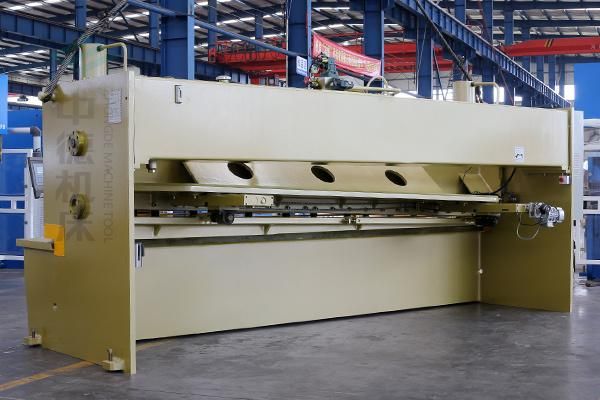

· Rear view of ZDG-632 hydraulic guillotine shear machine.

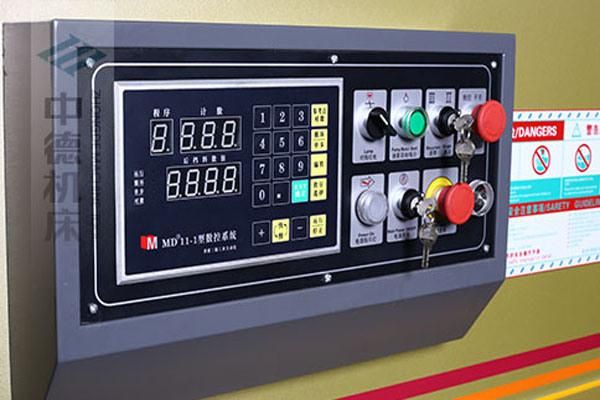

· MD11 simple CNC controller for ZDG-632.


· Nitrogen return device,with strong power and quick return speed.

· Blade clearance adjusting device,on front of the machine frame,it can show the scale,with easy adjustment.

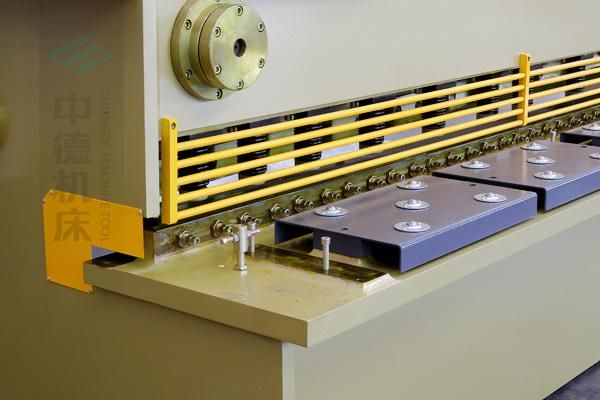

· Ball worktable can reduce the sheet metal contact with the workbench,reduce working intensity;Penetration guard fence around the shear,not only protect the safety of operator but also observe the shearing position.


· High quality electrics,with stable quality and long lifespan.

· Domestic high quality hydraulic system,high pressure resistant and good performance.

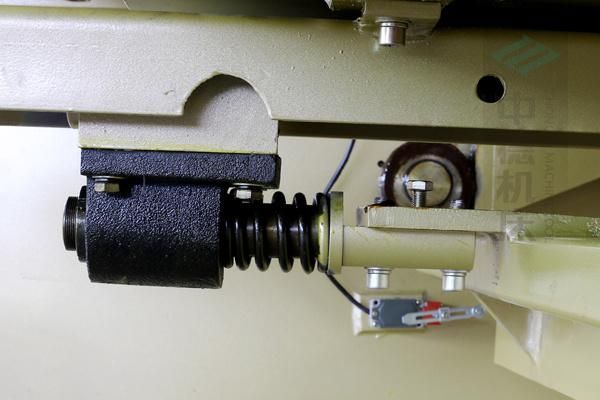

· Back gauge with buffer device,it can effective keep the parallelism of backgauge beam.


· Backgauge driving structure,with powerful torque.

· Well-known brand motor and good quality oil pump,with strong force and low noise.

· Full-metal pipe shroud connection,nonexpansion when high temperature,can guarantee precision for long time.

· Guillotine knife rest structure,knife rest up and down vertical movement,the bearing with small stress and wear-free,so it can accurate control blade clearance for long time,and can adjust the shearing angle.
