• Model NO.：W11-20x2500
• Transport Package：Standard Export Package
• Specification：max capacity: 20x2500mm
• Trademark：HYMT
• Origin：China
• HS Code：84623990
• Production Capacity：100 Units

Basic Info.

Model NO. W11-20x2500 Transport Package Standard Export Package Specification max capacity: 20x2500mm Trademark HYMT Origin China HS Code 84623990 Production Capacity 100 Units

Product Description



Main features:

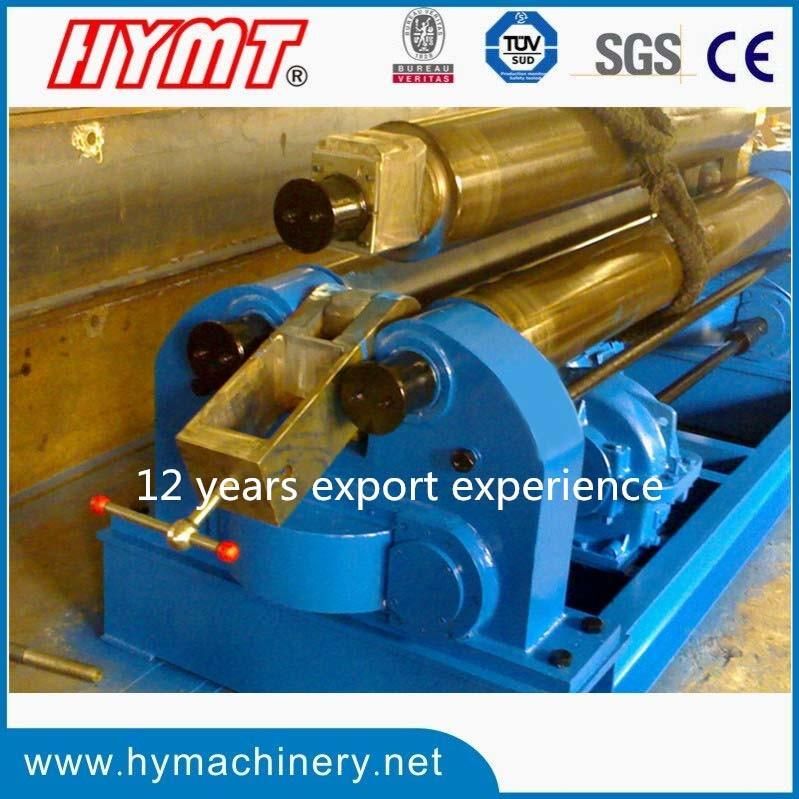

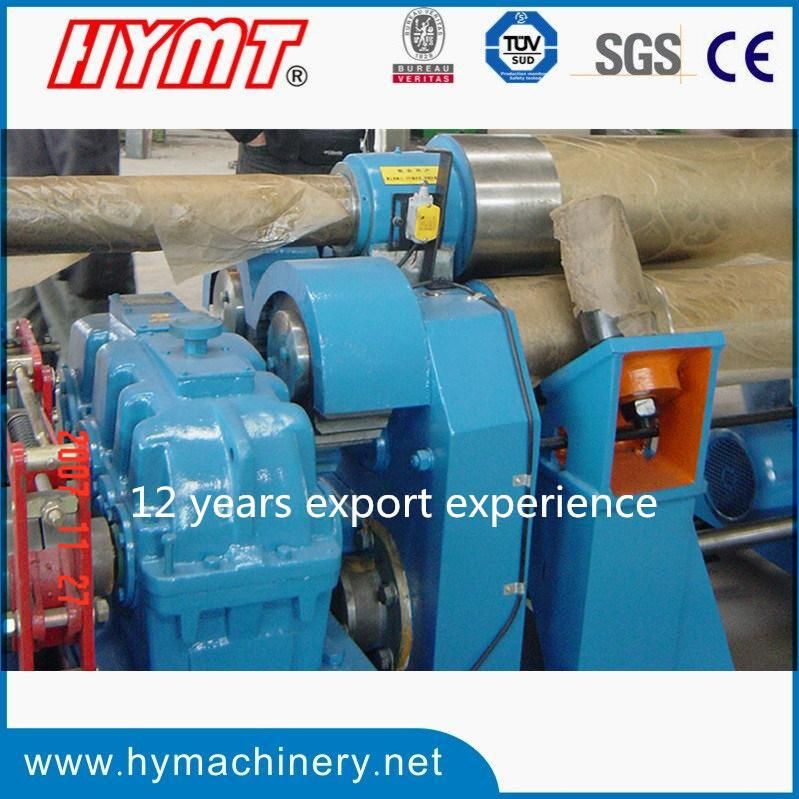

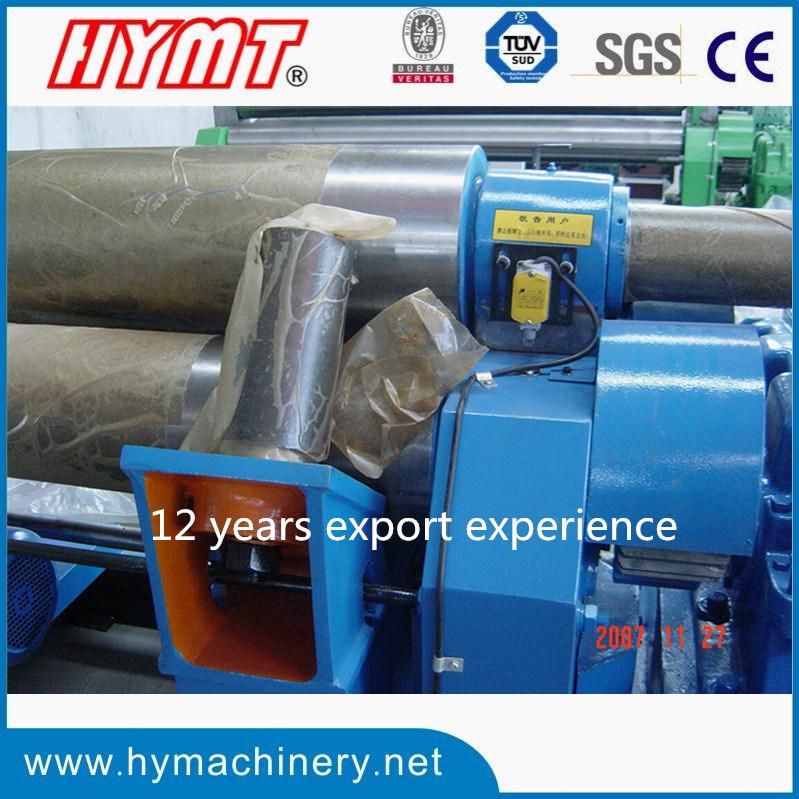

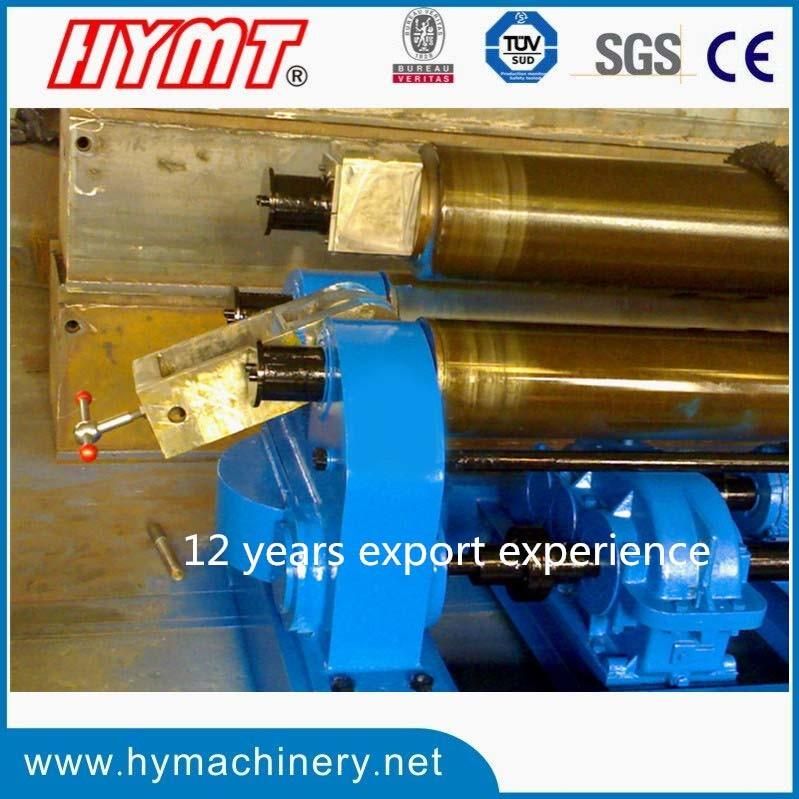

The equipment structure is symmetric with three rollers.The upper roller works vertically at the symmetric centre of the lower rollers.The hydraulic transmission makes two lower roller do rotation motion .The torque will be provided for profiling shaping through  the gear output of reducer and meshing of The structure of this machine is designed as a symmetrical up-adjusting 3-roller plate-rolling form.Through the machine the metal plate can be rolled into the round and arc shapes and the cone shape within its specified ranges.The two lower rollers are driving ones and the upper is an idler one.This machine is widely used in ship
building,boilers,aviation,hydroelectricity,chemical industry, metal structure,machine manufacture and other industries

Main specifications:


Model	Max.   thickness (mm)	Max.   width (mm)	Max.   Bending speed(m/min)	Workpiece Min.   Dia. (mm)	Top  roller  dia   (mm)	Bottom  roller Dia.     (mm)	Dis.   of  bottom rollers  (mm)	Main  motor   power(kw)	Net  weight (t)	Overall Dimensions (cm)
W11-6*2500	6	2500	7.0	500	190	170	260	7.5	4.6	431*121*133
W11-  6*3200	6	3200	7.0	500	240	200	310	11	7.2	520*140*120
W11-8*2000	8	2000	7.0	450	190	170	260	7.5	4.1	381*121*133
W11-  8*2500	8	2500	6.0	500	230	190	300	11	6.7	450*142*161
W11-10*2000	10	2000	6.0	500	230	190	300	11	5.9	405*142*161
W11-12*2500	12	2500	5.0	750	280	240	360	22	9	500*150*180
W11-12*3200	12	3000	5.0	650	280	240	360	22	12.1	500*150*180
W11-16*2500	16	2500	5.0	750	280	240	360	22	8.5	500*150*180
W11-16*3200	16	3200	5.0	900	340	280	440	30	15.6	630*160*190
W11-20*2000	20	2000	5.0	750	280	240	360	22	7.8	450*150*190
W11-20*2500	20	2500	5.0	850	340	280	440	30	14.7	560*160*190
W11-25*2500	25	2500	4.5	900	380	300	490	37	16.7	600*160*215
W11-25x3200	25	3200	4.0	1200	400	310	520	37	20.5	680*180*215
W11-30*2500	30	2500	4.0	1200	400	310	520	40	21.6	580*180*215
W11-30*3000	30	3000	4.0	1200	400	310	520	45	25.3	630*180*215

Our Services1.Standardization of Service "212"2: response in 2 hours1: provide solution in 1 day2: solve complaint in 2 days2.Installation ServiceInstallation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.3.Training ServiceOur technician is available to your factory and offer training of how to use our machines. As well, you
 may send your technician to our company to learn how to operate machines.4.Quality GuaranteeWe guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
