W11-16X2500 Electric Drive Type 3 Roller Stainless Steel Plate Rolling Machine
Xi'an Huayue Machinery and Equipment Co., Ltd.- Warranty：2-year
- Condition：New
- Certification：ISO 9001:2000, ISO 9001:2008, CE
- Automation：Semi-Automatic
- Suitable for：Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
- Type：Hydraulic Bending Machine
Base Info
- Model NO.：W11-16x2500
- Control Voltage：24V
- Transport Package：Standard Export Package
- Specification：max capacity: 16x2500mm
- Trademark：HYMT
- Origin：China
- HS Code：84623990
- Production Capacity：100 Units
Description
Basic Info.
Model NO. W11-16x2500 Control Voltage 24V Transport Package Standard Export Package Specification max capacity: 16x2500mm Trademark HYMT Origin China HS Code 84623990 Production Capacity 100 UnitsProduct Description
Main features:

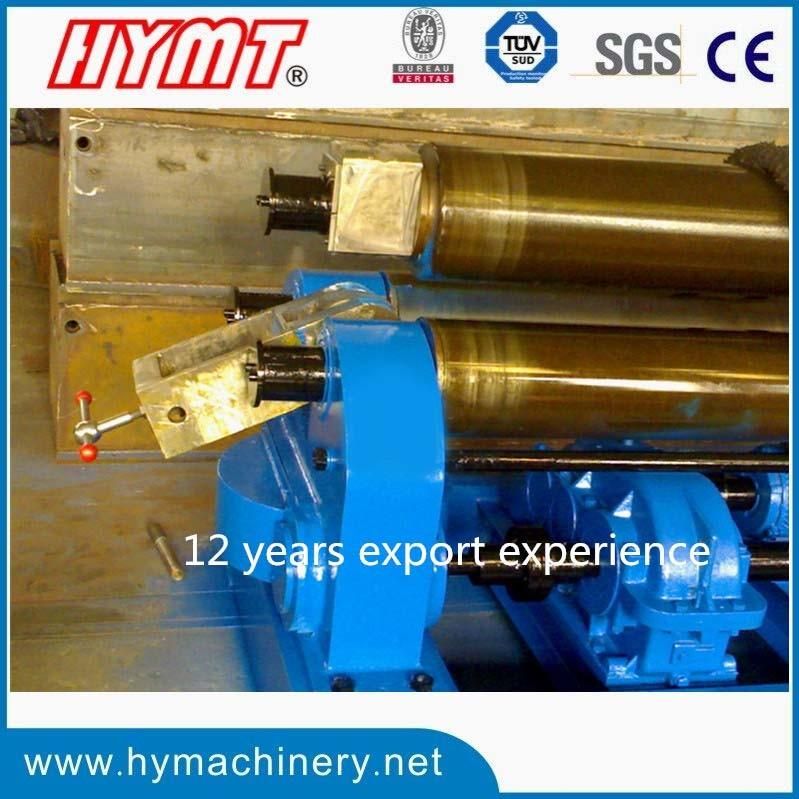

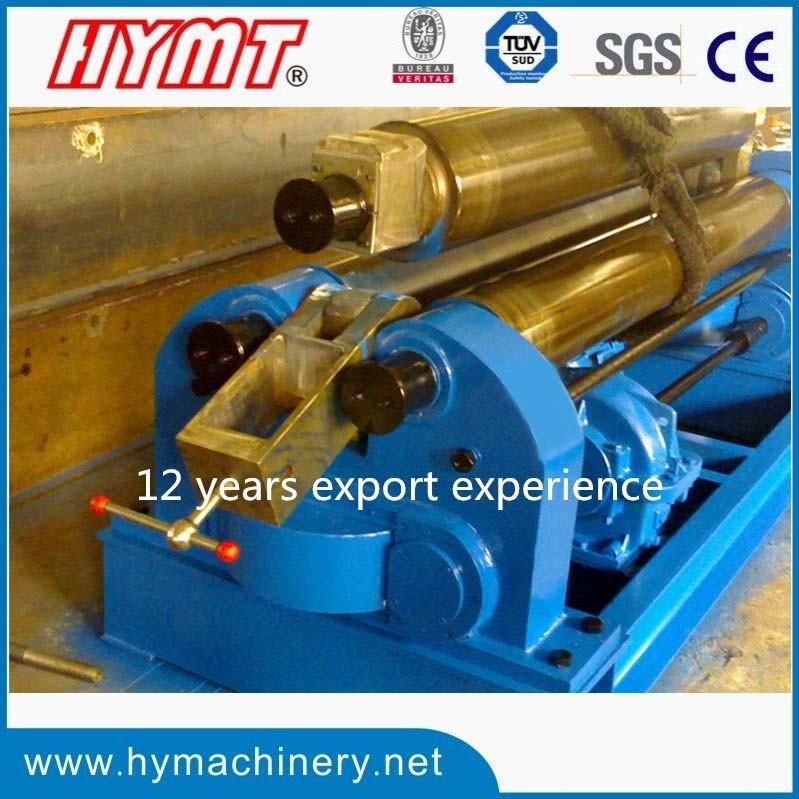

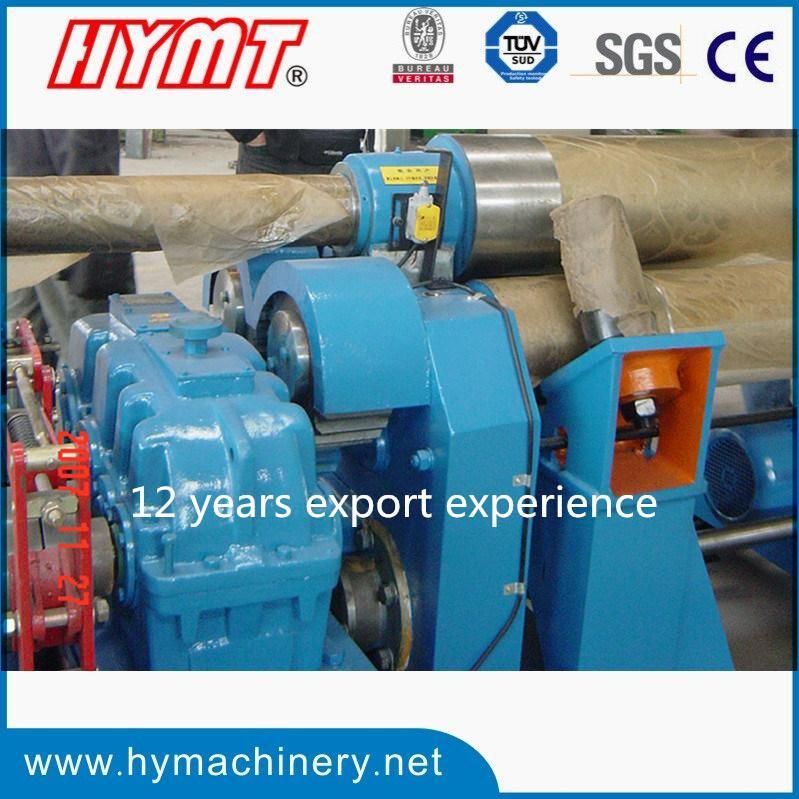

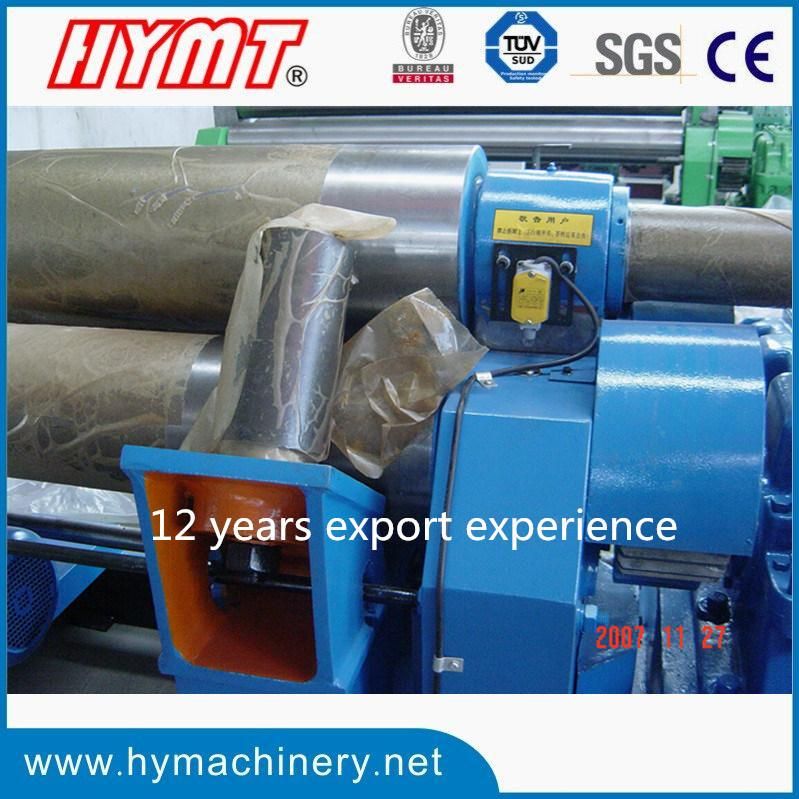

The equipment structure is symmetric with three rollers.The upper roller works vertically at the symmetric centre of the lower rollers.The hydraulic transmission makes two lower roller do rotation motion .The torque will be provided for profiling shaping through the gear output of reducer and meshing of The structure of this machine is designed as a symmetrical up-adjusting 3-roller plate-rolling form.Through the machine the metal plate can be rolled into the round and arc shapes and the cone shape within its specified ranges.The two lower rollers are driving ones and the upper is an idler one.This machine is widely used in ship
building,boilers,aviation,hydroelectricity,chemical industry, metal structure,machine manufacture and other industries
Main specifications:
| Model | Max. thickness (mm) | Max. width (mm) | Max. Bending speed(m/min) | Workpiece Min. Dia. (mm) | Top roller dia (mm) | Bottom roller Dia. (mm) | Dis. of bottom rollers (mm) | Main motor power(kw) | Net weight (t) | Overall Dimensions (cm) |
| W11-6*2500 | 6 | 2500 | 7.0 | 500 | 190 | 170 | 260 | 7.5 | 4.6 | 431*121*133 |
| W11- 6*3200 | 6 | 3200 | 7.0 | 500 | 240 | 200 | 310 | 11 | 7.2 | 520*140*120 |
| W11-8*2000 | 8 | 2000 | 7.0 | 450 | 190 | 170 | 260 | 7.5 | 4.1 | 381*121*133 |
| W11- 8*2500 | 8 | 2500 | 6.0 | 500 | 230 | 190 | 300 | 11 | 6.7 | 450*142*161 |
| W11-10*2000 | 10 | 2000 | 6.0 | 500 | 230 | 190 | 300 | 11 | 5.9 | 405*142*161 |
| W11-12*2500 | 12 | 2500 | 5.0 | 750 | 280 | 240 | 360 | 22 | 9 | 500*150*180 |
| W11-12*3200 | 12 | 3000 | 5.0 | 650 | 280 | 240 | 360 | 22 | 12.1 | 500*150*180 |
| W11-16*2500 | 16 | 2500 | 5.0 | 750 | 280 | 240 | 360 | 22 | 8.5 | 500*150*180 |
| W11-16*3200 | 16 | 3200 | 5.0 | 900 | 340 | 280 | 440 | 30 | 15.6 | 630*160*190 |
| W11-20*2000 | 20 | 2000 | 5.0 | 750 | 280 | 240 | 360 | 22 | 7.8 | 450*150*190 |
| W11-20*2500 | 20 | 2500 | 5.0 | 850 | 340 | 280 | 440 | 30 | 14.7 | 560*160*190 |
| W11-25*2500 | 25 | 2500 | 4.5 | 900 | 380 | 300 | 490 | 37 | 16.7 | 600*160*215 |
| W11-25x3200 | 25 | 3200 | 4.0 | 1200 | 400 | 310 | 520 | 37 | 20.5 | 680*180*215 |
| W11-30*2500 | 30 | 2500 | 4.0 | 1200 | 400 | 310 | 520 | 40 | 21.6 | 580*180*215 |
| W11-30*3000 | 30 | 3000 | 4.0 | 1200 | 400 | 310 | 520 | 45 | 25.3 | 630*180*215 |
Our Services1.Standardization of Service "212"2: response in 2 hours1: provide solution in 1 day2: solve complaint in 2 days2.Installation ServiceInstallation Services are available with all HYMT machines. We dispatch technician to customer's
factory for installation and preoperation of machines.3.Training ServiceOur technician is available to your factory and offer training of how to use our machines. As well, you
may send your technician to our company to learn how to operate machines.4.Quality GuaranteeWe guarantee the quality of machine (e.g. processing speed and working performance is the same as the data of samples making). We sign the agreement with detailed technical data.We arrange final test before shipment. We run the machine for a few days, and then use customer's materials for test. After making sure machine is the best performance, then make shipments.
